Unread 09-21-2017, 04:51 AM   #1
Kiwi Mark
User

Join Date: Jan 2017
Posts: 23
Thanks: 0
Thanked 7 Times in 6 Posts
Default Barrel Feed Ramp Angle?

I'm rebarrel a 1917 DWM with barrel blank that I'm machining. Hoping someone can help me with the angle of the feed ramp please. Many Thanks
Kiwi Mark is offline   Reply With Quote
Unread 09-21-2017, 09:42 AM   #2
G.T.
Lifer
Lifetime Forum
Patron

Join Date: Jun 2002
Location: Chandler Arizona
Posts: 3,464
Thanks: 1,273
Thanked 3,532 Times in 977 Posts
Default barrel angle

Hi Kiwi Mark! The feed ramp angle, for some reason, doesn't seem to be a finite measurement.. It just kind of appears if you follow the prints measurements on all other cuts? But, I can tell you this, as to what we have discovered at G.T. Specialties.. If you install in the barrel bore, back extending thru the chamber, a 8.8 MM drill blank / rod, or one that even more closely fits your bore, a new heavy duty Stanly Razor Knife blade will make an "EXACT" gauge for the angle present from the factory? We then measured the blade angle and it was exactly 50 degrees from the bore center line, to the ramp angle inclusive. I think most of the machinist guys here have found 46 degrees to be close to what the print says?... We cut all of ours 50 degrees and then by hand, polish to a quite full / throated finished shape. Very important you don't go to deep, as the case mouth will stop right at the ramps end in the chamber... Very tight vertical Jam will result! .......... How's that? Will that help! Best to you, til...lat'r.....GT
G.T. is offline   Reply With Quote
The following member says Thank You to G.T. for your post:
Unread 09-22-2017, 04:39 AM   #3
Kiwi Mark
User

Join Date: Jan 2017
Posts: 23
Thanks: 0
Thanked 7 Times in 6 Posts
Default

Thank you GT, much appreciated. I have also read your New Project for Shooters, with the photo and comments gives me the info I need. I was going to have a 5 inch bull barrel, but I'll machine the barrel down to reduce the weight. Again, many thanks. Mark
Kiwi Mark is offline   Reply With Quote
The following member says Thank You to Kiwi Mark for your post:
Unread 09-22-2017, 09:42 AM   #4
DonVoigt
Patron
LugerForum
Patron

DonVoigt's Avatar

Join Date: Apr 2015
Location: near Charlotte NC
Posts: 4,666
Thanks: 1,428
Thanked 4,315 Times in 2,029 Posts
Default

Mark,
a 5" bull barrel of "GT" design works quite well and has a great balance; it is slightly reduced from the round profile by flats on the top and sides.

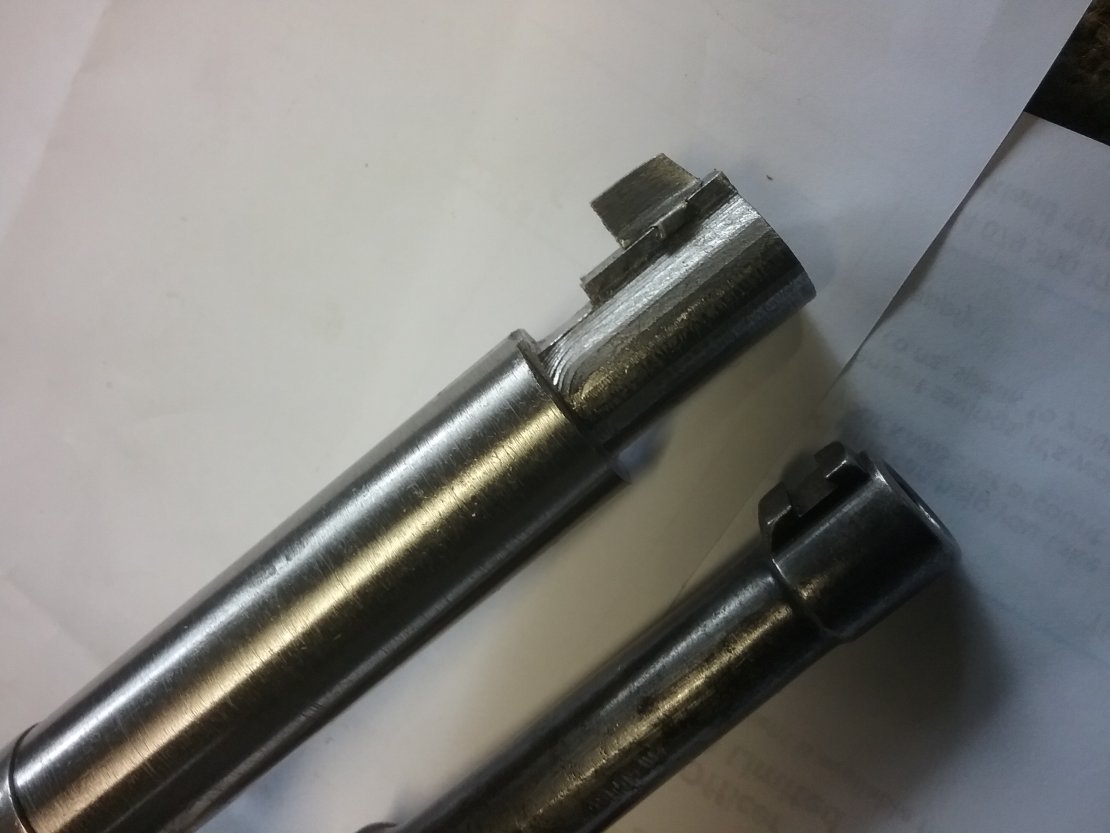

Here are a couple picture of mine; I also added an adjustable(windage) rear sight.
Attached Thumbnails
Click image for larger version

Name:	P1190220.jpg
Views:	33
Size:	46.1 KB
ID:	68754

Click image for larger version

Name:	P1190394.jpg
Views:	29
Size:	88.8 KB
ID:	68756

Click image for larger version

Name:	P1190388.jpg
Views:	30
Size:	125.2 KB
ID:	68757

Click image for larger version

Name:	P1190392.jpg
Views:	28
Size:	145.7 KB
ID:	68758

__________________
03man(Don Voigt); Luger student and collector.
Looking for DWM side plate: 69 ; Dreyse 1907 pistol K.S. Gendarmerie
DonVoigt is offline   Reply With Quote
The following 2 members says Thank You to DonVoigt for your post:
Unread 09-22-2017, 11:22 AM   #5
G.T.
Lifer
Lifetime Forum
Patron

Join Date: Jun 2002
Location: Chandler Arizona
Posts: 3,464
Thanks: 1,273
Thanked 3,532 Times in 977 Posts
Default barrel ramps!

Hi to all! Both Olle & Don have been very instrumental in getting the GTST barrels of all lengths up and running! The barrels were designed to be a relatively inexpensive but desirable alternative to the factory designs.. The P.08 bull barrel profile is magic as soon as you shoot one!!!.. 4" feels best to me, 5" is preferred by a few, and might just be the best all around?.. 6" is popular, but it is right at the edge of design limits, and kind of defeats the ease of use philosophy, as main spring tuning and hand loading might be required to get 100% performance...
Dons rear sight is interesting and nicely done! I'm trying to go that route as well, but too many irons in the fire... ... Thanks to all for your support! til....lat'r....GT ......
G.T. is offline   Reply With Quote
Unread 09-22-2017, 10:10 PM   #6
Rick W.
User

Join Date: Jun 2002
Posts: 339
Thanks: 81
Thanked 359 Times in 198 Posts
Default

I have pondered the feed ramp in a Luger barrel a little. Still not satisfied with my endeavors theoretically yet, things seem to work and seem safe, but still there are parameters to consider further if you will. Always something has to be learned and paid for.

I would suspect that the ramp would be done in a mill or in a milling adapter on a lathe.

So what are a few considerations?

angle off bore line......as discussed above perhaps. Lots of ways to find the angle reference to bore line I reckon; oem barrel indicated in a lathe.

Width and depth of cut............kinda influence one another with the cutter.

projection into the barrel bore proper. The cartridges for the Luger are fairly intense in the psi department. We all know that brass cases are thicker at the rear than in front for safety in retaining said pressures intact.

so if the cut is made too deep into the barrel bore, the case begins to possibly become unsupported. Thin brass walls and pressure can become testy.

In these few parameters of the many probably, the depth into the bore seems to have more weight sorta speak to me. Just my simple opinion. I think angle is just one of the considerations for a proper feed ramp; but know everyone is thinking about other parameters for basic safety of the finished product.

I like improved sights on the Luger nowadays, the old basic is too tough for me now. A nice sight picture ala a fine target gun is the thing that helps me out a lot. But even that goes. An optical sight, redot or scope really allows one to align to the target.............and sometimes even hit it. Optics are not for everyone, but as in the other disciplines, optics can be a bit of a boon in those environments.
Rick W. is offline   Reply With Quote
The following member says Thank You to Rick W. for your post:
Unread 09-22-2017, 10:27 PM   #7
DonVoigt
Patron
LugerForum
Patron

DonVoigt's Avatar

Join Date: Apr 2015
Location: near Charlotte NC
Posts: 4,666
Thanks: 1,428
Thanked 4,315 Times in 2,029 Posts
Default

Rick,
you are overthinking the ramp, IMO.

Just take an original barrel and duplicate the ramp; by eye is "close enough".
If you look at many luger pistols, you will see that the ramps vary a bit, maybe even a lot.

The original drawings are available and show the design specs. They were likely done on/ with a milling machine and fixture and special cutter.

I made a fixture for cutting the extractor groove, but "cut" the ramp by hand.
I use a grinding stone, then a sanding cylinder, and polish with an abrasive tip. This serves me quite well.
__________________
03man(Don Voigt); Luger student and collector.
Looking for DWM side plate: 69 ; Dreyse 1907 pistol K.S. Gendarmerie
DonVoigt is offline   Reply With Quote
The following member says Thank You to DonVoigt for your post:
Unread 09-23-2017, 05:01 AM   #8
Kiwi Mark
User

Join Date: Jan 2017
Posts: 23
Thanks: 0
Thanked 7 Times in 6 Posts
Default

I like the bull barrel with flats and the front sight for windage. I'm going to mill the rear sight vee sight with 3mm TC end mill to square it off as I
can't see the vee. I'll make the front sight alot higher & file it down at the range until I get the desired results. Before you start to recommend different sights, in New Zealand, we can't import stuff. So I made it. I really appreciate the comments, many thanks.
Kiwi Mark is offline   Reply With Quote
The following member says Thank You to Kiwi Mark for your post:
Unread 09-23-2017, 09:59 AM   #9
DonVoigt
Patron
LugerForum
Patron

DonVoigt's Avatar

Join Date: Apr 2015
Location: near Charlotte NC
Posts: 4,666
Thanks: 1,428
Thanked 4,315 Times in 2,029 Posts
Default

Quote:
Originally Posted by Kiwi Mark View Post
I like the bull barrel with flats and the front sight for windage. I'm going to mill the rear sight vee sight with 3mm TC end mill to square it off as I
can't see the vee. I'll make the front sight alot higher & file it down at the range until I get the desired results. Before you start to recommend different sights, in New Zealand, we can't import stuff. So I made it. I really appreciate the comments, many thanks.
Be sure to post pictures of the finished barrel and sights, please.
__________________
03man(Don Voigt); Luger student and collector.
Looking for DWM side plate: 69 ; Dreyse 1907 pistol K.S. Gendarmerie
DonVoigt is offline   Reply With Quote
The following member says Thank You to DonVoigt for your post:
Unread 09-23-2017, 12:02 PM   #10
Rick W.
User

Join Date: Jun 2002
Posts: 339
Thanks: 81
Thanked 359 Times in 198 Posts
Default

I have a friend in New Zealand that has told me some about how it is with importing etc, we all hope for better times to come.

OTS sights for the Luger here are pretty scarce here too. I reckon the Marbles #27 was about the last. I see that G.T. is going thru great lengths to help out in the front sight arena for us. Obiviously the old Mauser front is around yet some, but takes a little moding for elevation etc. If you can cut your own dovetailing or make such a ramp, that will open up some other options.

Improved rear sights on the toggle as you know take a beating. Adjustable sights here are mainly(for the very few that do them) modifications of existing sights available. FWIW, I have found over the years that if I got rid of the elevation characteristic of the rear adjustable sight, that durability went up. A lot of homebrew fixed sights attached in various ways, or specialized milling or made up sub-bases for something like the S&W rear or the old Bomar sights appear here from time to time.

Finding a scope mount for the Luger.......well, guess not too many around, I have never seen one that was not out of someone's shop as a one of, type of thing. I was really pleasantly surprised with the ability of the scope on the Luger, but I also realize tis not for everyone. Really shows the real capabilities of a slender tapered 14" barrel in 30 cal. I showed my rendition once here, but will never again.

The beauty of the Luger barrel is that it is not too complex to replicate, probably the most effort is in the integral front sight base if so desired. Slabbed barrels should be fairly easy on the lathe/mill, and keep the barrel in alignment some during recoil.

No hassle intended on my part, my best to you on your project.

Rick W.
Rick W. is offline   Reply With Quote
The following member says Thank You to Rick W. for your post:
Unread 09-23-2017, 10:46 PM   #11
G.T.
Lifer
Lifetime Forum
Patron

Join Date: Jun 2002
Location: Chandler Arizona
Posts: 3,464
Thanks: 1,273
Thanked 3,532 Times in 977 Posts
Default barrel ramp.....

Hi guys, actually, I am in agreement with both of the notes by Don and Rick... I think that from a one time practical sense, just about any ramp will do, and it is amazing how close one can come by eye to the correct final angle?... But, I would not be telling the truth if I didn't say that it bothers me more than just a little to see the ramp extend deeper and deeper into the chamber proper as we break edges, throat chamber mouths, and so forth?... On the first range shot, I always inspect the brass for ANY signs of pressure or deformation as a result of possible incorrect chamber dimensions, or relief cuts?... So far so good!
But, I always look down from the top of the barrel to INSURE that the feed ramp does NOT exceed the depth of the extractor cut, actually, I like to see it some what shy of the extractor relief cut... although I also agree, the brass is pretty tolerant of this unsupported area in question?... Thanks to you both for your input, great stuff this Luger puzzle... Best to all, til...lat'r....GT...
G.T. is offline   Reply With Quote
Unread 10-22-2017, 12:36 AM   #12
Kiwi Mark
User

Join Date: Jan 2017
Posts: 23
Thanks: 0
Thanked 7 Times in 6 Posts
Default

Hi, Finally finished except for the front sight needs to be blued after some range shooting. Barrel ended up at 4 3/4 inches long, for no reason other than that's what happens. You can see that I spent a bit of work milling the front sight lug in the Dividing head, a new and higher front sight. Also a first for me, I made a recoil spring as I can't get one in NZ. I really appreciate another member showing the barrel removal tools and all the great feedback by everyone .
Attached Thumbnails
Click image for larger version

Name:	20171007_142719-1.jpg
Views:	28
Size:	84.8 KB
ID:	69437

Click image for larger version

Name:	20171022_152228.jpg
Views:	25
Size:	80.8 KB
ID:	69438

Kiwi Mark is offline   Reply With Quote
Unread 10-23-2017, 11:28 AM   #13
John Sabato
Lifer
Lifetime Forum
Patron

John Sabato's Avatar

Join Date: Jun 2002
Location: The Capital of the Free World
Posts: 10,150
Thanks: 3,003
Thanked 2,303 Times in 1,096 Posts
Default

Quote:
Originally Posted by Kiwi Mark View Post
Also a first for me, I made a recoil spring as I can't get one in NZ.
You can't order a spring from New Zealand? What is the restriction on ordering springs?
__________________
regards, -John S

"...We hold these truths to be self-evident that ALL men are created EQUAL and are endowed by their Creator with certain UNALIENABLE rights, and among these are life, LIBERTY, and the pursuit of happiness..."
John Sabato is offline   Reply With Quote
Unread 10-23-2017, 09:24 PM   #14
Kiwi Mark
User

Join Date: Jan 2017
Posts: 23
Thanks: 0
Thanked 7 Times in 6 Posts
Default

Hi, One has to apply for a Import Permit from the Police which can take 6 months to approve. Then you have to find a company in the US who has an Export Licence. Then the minimum postage is $60. Easier to make stuff. Google is good as it puts you through to a U Tube clip. Next trip to the US, I'll be doing the Gun shows. US has banned the export of barrel blanks. The barrel on the Luger shown, I made it with a button we imported years ago. You guys are so lucky, don't let anyone spoil that.
Kiwi Mark is offline   Reply With Quote
Unread 10-24-2017, 10:26 AM   #15
John Sabato
Lifer
Lifetime Forum
Patron

John Sabato's Avatar

Join Date: Jun 2002
Location: The Capital of the Free World
Posts: 10,150
Thanks: 3,003
Thanked 2,303 Times in 1,096 Posts
Default

Quote:
Originally Posted by Kiwi Mark View Post
Hi, One has to apply for a Import Permit from the Police which can take 6 months to approve. Then you have to find a company in the US who has an Export Licence. Then the minimum postage is $60. Easier to make stuff. Google is good as it puts you through to a U Tube clip. Next trip to the US, I'll be doing the Gun shows. US has banned the export of barrel blanks. The barrel on the Luger shown, I made it with a button we imported years ago. You guys are so lucky, don't let anyone spoil that.
Just to buy a couple of springs? How would they know they were gun related? Do you have to declare what they will be used for?
__________________
regards, -John S

"...We hold these truths to be self-evident that ALL men are created EQUAL and are endowed by their Creator with certain UNALIENABLE rights, and among these are life, LIBERTY, and the pursuit of happiness..."
John Sabato is offline   Reply With Quote
Unread 10-25-2017, 04:01 AM   #16
Kiwi Mark
User

Join Date: Jan 2017
Posts: 23
Thanks: 0
Thanked 7 Times in 6 Posts
Default

Hi John,
Exporters have to fill out the Customs Delcaration and will not falsify information. Since 9/11 everything has changed. Being able to make stuff is a form of freedom. I'm inspired by people like youself who pass on their knowledge and skills. Many thanks. Mark
Kiwi Mark is offline   Reply With Quote
