Unread 04-27-2011, 09:00 AM   #1
Olle
User

Olle's Avatar

Join Date: Feb 2010
Location: Tennessee
Posts: 1,149
Thanks: 159
Thanked 664 Times in 318 Posts
Default Bergmann-Bayard 1910/21 done!

Just purchased this little gem:








It's in very good condition mechanically (even the bore looks great), so I'm tinkering with the idea of stripping the nickel plating and restore it to factory original. However, the firing pin and its retaining pin have been replaced with parts that don't look original, possibly made by a gunsmith who didn't really know what they were supposed to look like.

After studying pictures and measuring the "home made" parts I have a pretty good idea of the dimensions and appearance, so I have already made a retaining pin that's "close enough" for display purposes. I would still like to make parts exactly like original, so I would like to know if anybody here has a similar pistol and can measure these parts for me.

Any info on the actual dimensions will be greatly appreciated!

Last edited by Olle; 10-03-2011 at 09:03 AM.
Olle is offline   Reply With Quote
Unread 10-02-2011, 05:14 PM   #2
Olle
User

Olle's Avatar

Join Date: Feb 2010
Location: Tennessee
Posts: 1,149
Thanks: 159
Thanked 664 Times in 318 Posts
Default

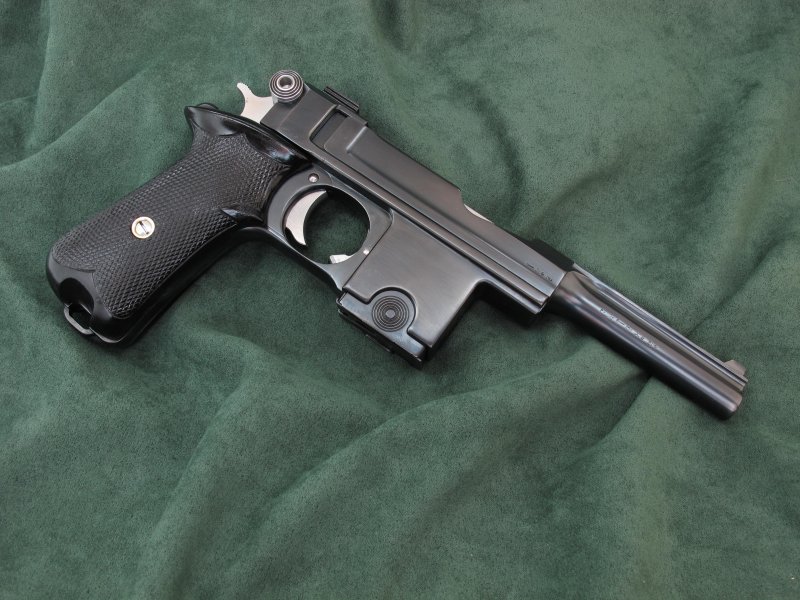

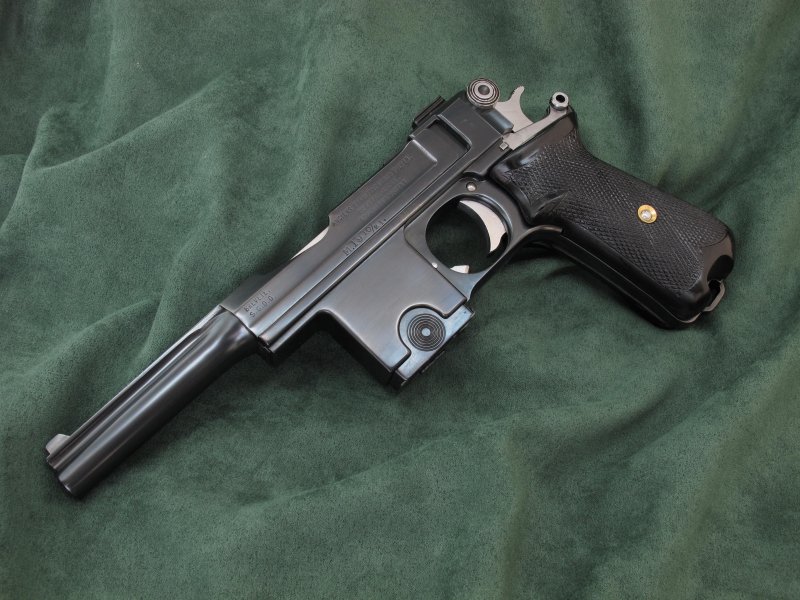

...and here's what it looks like this afternoon. It took some work, research and a few hours on the lathe to get it fixed up, but I'm pretty happy with it.
Attached Thumbnails
Click image for larger version

Name:	Bergmann-Bayard done 009.JPG
Views:	109
Size:	98.8 KB
ID:	21529

Click image for larger version

Name:	Bergmann-Bayard done 013.JPG
Views:	128
Size:	101.8 KB
ID:	21530

Olle is offline   Reply With Quote
The following 2 members says Thank You to Olle for your post:
Unread 10-02-2011, 05:38 PM   #3
policeluger
RIP

Join Date: Jun 2002
Location: Ca.
Posts: 2,141
Thanks: 8
Thanked 89 Times in 54 Posts
Default

WOW.....very nice
policeluger is offline   Reply With Quote
Unread 10-02-2011, 05:40 PM   #4
sheepherder
Lifer
Lifetime Forum
Patron

sheepherder's Avatar

Join Date: Feb 2009
Location: ...on the 'ol Erie Canal...
Posts: 8,195
Thanks: 1,415
Thanked 4,462 Times in 2,336 Posts
Default

Outstanding!!!

Did you get the measurements you needed???

What cartridge does it shoot??? And what was the change from '1910' to '1910/21'???
__________________
I like my coffee the
way I like my women...
...Cold and bitter...
sheepherder is offline   Reply With Quote
Unread 10-02-2011, 05:57 PM   #5
Neil Young
Lifer
Lifetime Forum
Patron

Neil Young's Avatar

Join Date: Jun 2008
Location: Scottsboro, Alabama
Posts: 547
Thanks: 566
Thanked 443 Times in 168 Posts
Default

That is a great looking piece. You do fantastic work.

Neil
__________________
Neil The hurrier I go the behinder I get. Sometimes it takes me all day to get nothing done.
Neil Young is online now   Reply With Quote
Unread 10-02-2011, 06:42 PM   #6
rhuff
Patron
LugerForum
Patron

rhuff's Avatar

Join Date: Mar 2011
Location: Az.
Posts: 2,305
Thanks: 2,736
Thanked 991 Times in 727 Posts
Default

You truly do EXCELLENT work!! That is most impressive. Thank you for the "after" photos.
rhuff is offline   Reply With Quote
Unread 10-02-2011, 06:51 PM   #7
Olle
User

Olle's Avatar

Join Date: Feb 2010
Location: Tennessee
Posts: 1,149
Thanks: 159
Thanked 664 Times in 318 Posts
Default

Quote:
Originally Posted by postino View Post
Outstanding!!!

Did you get the measurements you needed???

What cartridge does it shoot??? And what was the change from '1910' to '1910/21'???
The caliber is 9mm Bermann, but I believe that it will interchange with 9mm Largo. Not sure that I will ever shoot it, but ammo is available.

I got some dimensions from a Danish collector, but he only had a broken pin to measure so some dimensions were missing. I made a few brass prototypes, and when I had one I believed in I made one of steel. Then I found another Bergmann collector in TX, and he arranged for a gunsmith to make another pin and a locking pin, using original parts as a template. The locking pin in it now is one I made, using the pin from TX as a template but with a slightly different design. I also had to make the brass escutcheons and the grip screw, as the old parts wouldn't fit the repro grips. In other words, it was a long journey to get it right.
Olle is offline   Reply With Quote
Unread 10-02-2011, 08:57 PM   #8
BogeyB
Lifer
Lifetime Forum
Patron

BogeyB's Avatar

Join Date: Jul 2003
Location: Mc Donough, GA.
Posts: 422
Thanks: 0
Thanked 227 Times in 99 Posts
Default

Olle,

A first rate job!!

Mike
__________________
MAGA Always!!
NRA Benifactor, GCA
BogeyB is offline   Reply With Quote
Unread 10-02-2011, 11:56 PM   #9
lfid
Lifer
Lifetime Forum
Patron

Join Date: Sep 2006
Location: Wichita, KS USA
Posts: 453
Thanks: 573
Thanked 96 Times in 53 Posts
Default

Awesome !!!
Thanks for sharing
What method did you use for the plating removal?
Bill
lfid is offline   Reply With Quote
Unread 10-03-2011, 12:46 AM   #10
Kitkat041836
RIP

Kitkat041836's Avatar

Join Date: Feb 2009
Posts: 195
Thanks: 0
Thanked 21 Times in 18 Posts
Thumbs up

One of the best I have ever seen.
Thanks George
Kitkat041836 is offline   Reply With Quote
Unread 10-03-2011, 01:19 AM   #11
Ron Wood
Moderator
2010 LugerForum
Patron

Ron Wood's Avatar

Join Date: Jun 2002
Location: Santa Teresa New Mexico just outside of the West Texas town of El Paso
Posts: 7,035
Thanks: 1,106
Thanked 5,242 Times in 1,719 Posts
Default

Lovely job. I would put that in my gun case in a heartbeat. You are a craftsman. Thank you for rescuing an otherwise sorry relic. Well done, Sir!
__________________
If it's made after 1918...it's a reproduction
Ron Wood is offline   Reply With Quote
Unread 10-03-2011, 08:45 AM   #12
Olle
User

Olle's Avatar

Join Date: Feb 2010
Location: Tennessee
Posts: 1,149
Thanks: 159
Thanked 664 Times in 318 Posts
Default

Quote:
Originally Posted by lfid View Post
What method did you use for the plating removal?
I use Caswell's nickel stripper. It's quick and safe, takes all the plating off and I have never seen it even touch the steel underneath.

Forgot to reply to Postinos question about the model change, and the easiest way to answer that is ro refer to Ed Buffaloes write-up: http://unblinkingeye.com/Guns/Berg/berg.html

If I understand things correctly, the 1910s already in use were also converted to the 1910/21 configuration so finding an intact 1910 would probably be pretty difficult.
Olle is offline   Reply With Quote
Unread 10-03-2011, 01:39 PM   #13
lfid
Lifer
Lifetime Forum
Patron

Join Date: Sep 2006
Location: Wichita, KS USA
Posts: 453
Thanks: 573
Thanked 96 Times in 53 Posts
Default

Olie,
Found it
http://www.caswellplating.com/kits/metalx.html
Thanks !!!
Bill
lfid is offline   Reply With Quote
Unread 10-03-2011, 02:11 PM   #14
Olle
User

Olle's Avatar

Join Date: Feb 2010
Location: Tennessee
Posts: 1,149
Thanks: 159
Thanked 664 Times in 318 Posts
Default

Quote:
Originally Posted by lfid View Post
Olie,
Found it
http://www.caswellplating.com/kits/metalx.html
Thanks !!!
Bill
Yep, B-9 is the one I use. The instructions say that you should heat it, but I get just as good results by degreasing thoroughly and leaving in cold solution overnight. Wire brush, rinse and repeat and that takes care of it. I know that some people are worried about etching, but I have never had a problem with that. As a matter of fact, when I stripped this one I found several areas that still looked plated so I soaked it again. It still wouldn't come off, but after wiping it with cold blue I realized that it was the polished steel under the nickel, still with a bright shine to it despite being soaked for two days. In other words: I'm not worried about etching at all.
Olle is offline   Reply With Quote
The following member says Thank You to Olle for your post:
Unread 10-05-2011, 02:36 PM   #15
Douglas Jr.
User

Douglas Jr.'s Avatar

Join Date: Aug 2002
Location: South America
Posts: 948
Thanks: 598
Thanked 584 Times in 254 Posts
Default

Great job!
It is great to see such work on otherwise lost guns.
Congratulations!
Douglas
Douglas Jr. is offline   Reply With Quote
Unread 10-05-2011, 04:28 PM   #16
ithacaartist
Twice a Lifer
Lifetime Forum
Patron

ithacaartist's Avatar

Join Date: Mar 2011
Location: Atop the highest hill in Schuyler County NY
Posts: 3,369
Thanks: 7,435
Thanked 2,611 Times in 1,378 Posts
Default

Nice surprise, coming to the bottom, "after" pic! Sweet work, indeed. Thx for sharing.

David Parker
ithacaartist is online now   Reply With Quote
