Default Shooting the upper

Just recently a question came up about shooting and testfiring a Luger's upper only.

The Luger upper (barrel-receiver-toggle) is a fully functional firearm on it's own. Neither the trigger, frame or sideplate are needed to fire a single chambered round.

This aspect of the Luger caused many accidents in the past, especially with German police forces in the interbellum period. It lead to the development of the sear safety for police Lugers as a result.

In his weapons training manual, Schmitt wrote a small chapter on the demonstration of this effect, with some dramatization added to enhance the experience of the onlookers. He wrote:

I prefer to demonstrate the following accident from reality at the shooting range (the chamber is prepared):

Assumption: A pistol cleaning is being carried out. A (demonstrator) field strips the pistol in front of the audience, with exception of the barrel with receiver and toggle (the rear toggle pin, receiver, toggle should not be removed):

Then he removes the loaded magazine, but leaves a round in the chamber without alerting the audience. When asked, many onlookers will say that the shown part (barrel-receiver-toggle) is harmless. The demonstrator then places the upper in the special built retainer and presses, assuming the sear (S) is being cleaned, on it:

The shot will fire, the 2 body sized targets (F) opposite will receive stomach hits.

The more unexpected the shot from the small pistol part will sound, the more convincing the effect of the danger of the supposedly well known pistol will be.

Building the retainer (see image 19):
A wooden slate Q will be nailed to a table top at the rear end. It will absorb the recoil. Close to both sides of the barrel 2 sets of nail are hammered in (N) to prevent sidewards moving of the barrel.
The front pair is to be bent over the barrel to prevent it from jumping upwards.
The rear pair serves to limit sideways movement, but most not block the toggle from jumping upwards.
The test performed this way is harmless
(his words..).

If I would demonstrate it, I'd use an empty primed case instead, but I guess that the sight of a bullet tearing through 2 dummies was also very convincing at the time...

A small interpretation of the original 1928 design I knocked up to show the basic idea of the demonstration setup is added below. Note that the original document described to bend the front two nails over the barrel. I decided not to ruin the finish on the demo upper, so I skipped that part.
Attached Thumbnails
Click image for larger version

Name:	firing_upper1a.jpg
Views:	12
Size:	76.0 KB
ID:	81716

Click image for larger version

Name:	Test_Board_02.jpg
Views:	14
Size:	172.4 KB
ID:	81717

Click image for larger version

Name:	Test_Board_01.jpg
Views:	14
Size:	142.5 KB
ID:	81718

Click image for larger version

Name:	Test_Board_03.jpg
Views:	14
Size:	142.3 KB
ID:	81719

Click image for larger version

Name:	Test_Board_04.jpg
Views:	14
Size:	160.4 KB
ID:	81720

Vlim is offline   Reply With Quote
The following 7 members says Thank You to Vlim for your post:
Unread 01-15-2021, 11:52 AM   #2
Doubs
User

Doubs's Avatar

Join Date: Jun 2002
Location: Byron, Georgia
Posts: 1,521
Thanks: 598
Thanked 1,139 Times in 398 Posts
Default

Interesting and, I would think, a very effective demonstration.

It still baffles me why a more effective training program wasn't developed to address the problem rather than modify the pistol. I find it hard to believe that firing the upper assembly after it was removed from the frame to be a common thing.
Doubs is offline   Reply With Quote
Unread 01-15-2021, 11:55 AM   #3
Vlim
Moderator
Lifetime
LugerForum Patron

Vlim's Avatar

Join Date: Oct 2002
Location: Europe
Posts: 4,894
Thanks: 946
Thanked 3,425 Times in 1,064 Posts
Default

The problem with police forces in European countries is that they have to do a lot of loading and unloading. The guns are usually kept in lockers or arsenals outside of duty hours, so they go through a continuous cycle of loading and unloading rounds. It even puts so much strain on the firing pins (releasing after unloading) that several modern police issue guns had modified firing pins to help withstand the strain of continued dry firing.
Vlim is offline   Reply With Quote
The following member says Thank You to Vlim for your post:
Unread 01-15-2021, 12:20 PM   #4
Edward Tinker
Super Moderator
Eternal Lifer
LugerForum
Patron

Edward Tinker's Avatar

Join Date: Jun 2002
Location: North of Spokane, WA
Posts: 15,752
Thanks: 1,749
Thanked 4,203 Times in 1,968 Posts
Default

Quote:
Originally Posted by Vlim View Post
The problem with police forces in European countries is that they have to do a lot of loading and unloading. The guns are usually kept in lockers or arsenals outside of duty hours, so they go through a continuous cycle of loading and unloading rounds. It even puts so much strain on the firing pins (releasing after unloading) that several modern police issue guns had modified firing pins to help withstand the strain of continued dry firing.
US Army military police, same thing. We would get 10 loose rounds and load two magazines. We weren't supposed to load the chamber, but sometimes we did. In combat, it would be loaded (cocked and locked, talking 1911a1) all the time as far as I would be concerned.
__________________
Edward Tinker
************
Co-Author of Police Lugers - Co-Author of Simson Lugers
Author of Veteran Bring Backs Vol I, Vol II, Vol III and Vol IV

Edward Tinker is offline   Reply With Quote
The following 3 members says Thank You to Edward Tinker for your post:
Unread 01-15-2021, 01:15 PM   #5
schutzen-jager
User

schutzen-jager's Avatar

Join Date: Aug 2020
Location: peoples republic of New Jersey
Posts: 187
Thanks: 208
Thanked 185 Times in 86 Posts
Default fyi

luger uppers are classified as class 1 firearms in some jurisdictions the same as frames + receivers - see pages copied from 60+ year old lnformational booklet -
Attached Thumbnails
Click image for larger version

Name:	luger.jpg
Views:	24
Size:	182.5 KB
ID:	81729

Click image for larger version

Name:	luger2.jpg
Views:	24
Size:	87.5 KB
ID:	81730

schutzen-jager is offline   Reply With Quote
The following 4 members says Thank You to schutzen-jager for your post:
Unread 01-15-2021, 01:23 PM   #6
Doubs
User

Doubs's Avatar

Join Date: Jun 2002
Location: Byron, Georgia
Posts: 1,521
Thanks: 598
Thanked 1,139 Times in 398 Posts
Default

Quote:
Originally Posted by Vlim View Post
The problem with police forces in European countries is that they have to do a lot of loading and unloading. The guns are usually kept in lockers or arsenals outside of duty hours, so they go through a continuous cycle of loading and unloading rounds. It even puts so much strain on the firing pins (releasing after unloading) that several modern police issue guns had modified firing pins to help withstand the strain of continued dry firing.
Perhaps I'm being overly critical. The vast majority of police in the United States are not gun people and carry one only because the job requires it. Considering Europe's gun laws, I'm sure that even fewer police there are gun people. I'm sure that has a bearing on the problems that police have WRT their guns.
Doubs is offline   Reply With Quote
The following member says Thank You to Doubs for your post:
Unread 01-15-2021, 09:26 PM   #7
DonVoigt
Patron
LugerForum
Patron

DonVoigt's Avatar

Join Date: Apr 2015
Location: near Charlotte NC
Posts: 4,630
Thanks: 1,397
Thanked 4,213 Times in 1,997 Posts
Default

Don't forget, at the time of the introduction of the sear and mag safeties, the German police were expanding rapidly, probably tripling in size. So there were lots of "new" guys handling lugers! JMHO.
__________________
03man(Don Voigt); Luger student and collector.
Looking for DWM side plate: 69 ; Dreyse 1907 pistol K.S. Gendarmerie
DonVoigt is offline   Reply With Quote
The following member says Thank You to DonVoigt for your post:
Unread 01-15-2021, 10:56 PM   #8
Joe in Colorado
User

Join Date: Jul 2016
Posts: 70
Thanks: 95
Thanked 135 Times in 37 Posts
Default

A little over 30 years ago I made some firearms videos, one on German machine guns, one on the Enigma machine, one on Lugers.

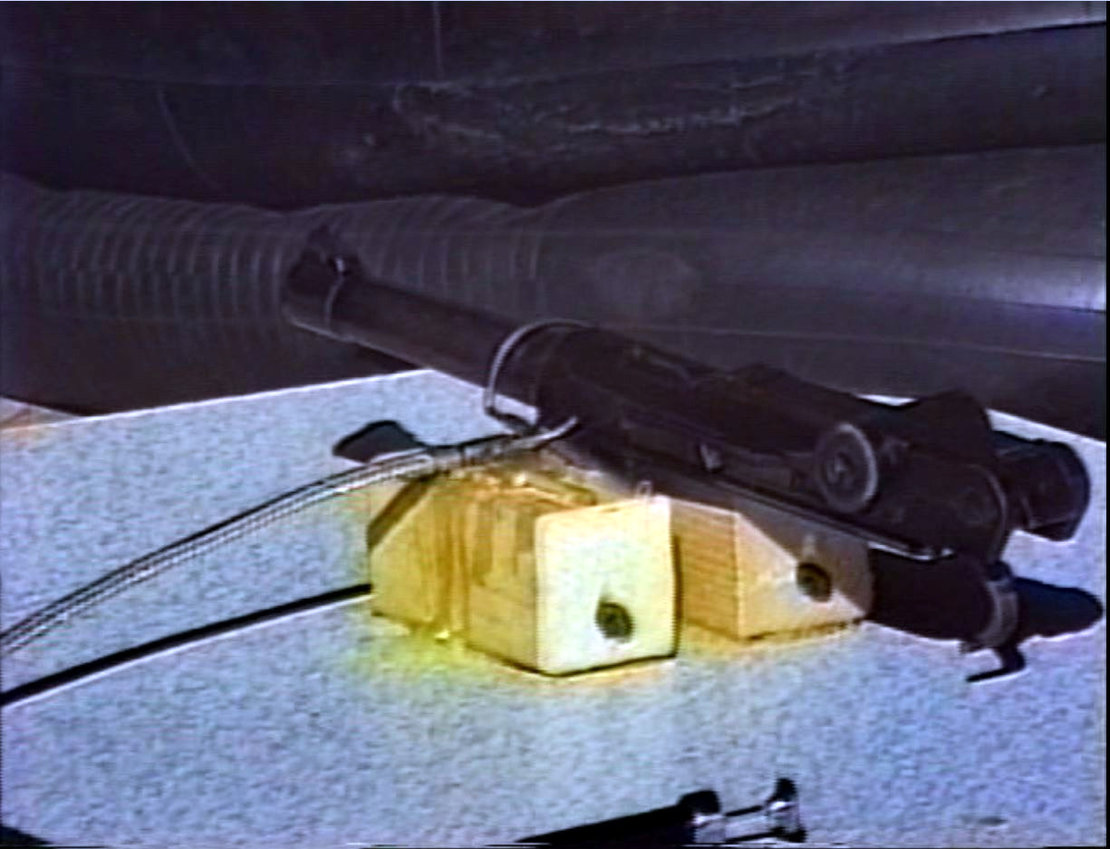

I actually did the test you mentioned for my Luger video-screen shots attached.

You can see I used a camera cable release to fire the unit.

The key point-the toggle remained closed.

My jig was just epoxied together and failed on the first test, but that was enough.

About that time, a collector/dealer in our local club mentioned that as a guard of German POWs he had heard or seen that fanatical Nazi prisoners would shoot collaborating POWs with concealed Luger tops.

(I could see holding it in my hand and pushing the sear with my thumbnail.)

Best Wishes, Joe
Attached Thumbnails
Click image for larger version

Name:	t01.jpg
Views:	14
Size:	151.5 KB
ID:	81737

Click image for larger version

Name:	t02.jpg
Views:	14
Size:	144.9 KB
ID:	81738

Click image for larger version

Name:	t03.jpg
Views:	14
Size:	99.8 KB
ID:	81739

Click image for larger version

Name:	t04.jpg
Views:	15
Size:	140.0 KB
ID:	81740

Click image for larger version

Name:	t05.jpg
Views:	14
Size:	162.2 KB
ID:	81741

Click image for larger version

Name:	t06.jpg
Views:	14
Size:	160.7 KB
ID:	81742

Joe in Colorado is offline   Reply With Quote
The following 8 members says Thank You to Joe in Colorado for your post:
Unread 01-16-2021, 01:36 AM   #9
Doubs
User

Doubs's Avatar

Join Date: Jun 2002
Location: Byron, Georgia
Posts: 1,521
Thanks: 598
Thanked 1,139 Times in 398 Posts
Default

Quote:
The key point-the toggle remained closed.

I'm glad you mentioned that the toggle train stayed locked. Logically, without the ramps to open the toggle train, it couldn't do otherwise.
Doubs is offline   Reply With Quote
Unread 01-16-2021, 01:49 AM   #10
Doubs
User

Doubs's Avatar

Join Date: Jun 2002
Location: Byron, Georgia
Posts: 1,521
Thanks: 598
Thanked 1,139 Times in 398 Posts
Default

Quote:
Originally Posted by DonVoigt View Post
Don't forget, at the time of the introduction of the sear and mag safeties, the German police were expanding rapidly, probably tripling in size. So there were lots of "new" guys handling lugers! JMHO.
A fair point but isn't it interesting that the Sig P6 police pistol used by the Germans much later includes an open loop hammer? If the pistol was dropped on the hammer, the loop would close and alert the armorer of possible damage to the pistol. Apparently the police still had problems. The loop can be seen in the picture below. I've owned four of them and like them.

Doubs is offline   Reply With Quote
The following member says Thank You to Doubs for your post:
Unread 01-16-2021, 08:59 AM   #11
STEINBVG
User

STEINBVG's Avatar

Join Date: Jan 2021
Location: NEW JERSEY
Posts: 137
Thanks: 113
Thanked 161 Times in 67 Posts
Default Werle p08 safety advice

https://youtu.be/-1zmp-vhylQ
Attached Thumbnails
Click image for larger version

Name:	942DDB34-87D0-428A-B810-29CF402E5163.jpg
Views:	50
Size:	79.4 KB
ID:	81747

STEINBVG is offline   Reply With Quote
The following 2 members says Thank You to STEINBVG for your post:
Unread 01-16-2021, 11:44 AM   #12
spangy
Lifer
Lifetime Forum
Patron

spangy's Avatar

Join Date: Sep 2020
Location: Winnipeg, Canada
Posts: 493
Thanks: 2,130
Thanked 808 Times in 330 Posts
Default

Nice video STEINBVG Thankyou.

I ran across Herbert Werle's website a year or so ago ... fascinating man.
https://www.waffen-werle.de/

__________________
Whoever said that "money can't buy you happiness" never bought a Luger.
WTB - Take Down Lever & Trigger Plate (#90) for an Imperial Artillery.
spangy is offline   Reply With Quote
Unread 06-27-2021, 11:53 PM   #13
shadow
User

shadow's Avatar

Join Date: Jan 2006
Location: Down The Shore
Posts: 245
Thanks: 1
Thanked 5 Times in 4 Posts
Default

I filmed a video demonstrating this about 14 years ago with help from a few member here.
Here is the link https://youtu.be/5WD8R3S9IDI

You could probably do something similar with a better blast sound for your desired effect.
__________________
The very atmosphere of firearms anywhere and everywhere restrains evil interference - they deserve a place of honor with all that's good.
George Washington
shadow is offline   Reply With Quote
The following member says Thank You to shadow for your post:
Unread 06-28-2021, 12:48 AM   #14
gunnertwo
Patron
LugerForum
Patron

gunnertwo's Avatar

Join Date: Jan 2010
Location: Nampa, Idaho
Posts: 477
Thanks: 680
Thanked 685 Times in 262 Posts
Default

Safety lies in the mind, not in the hands. Had a co-worker fail to eject the round from his Glock 19, pushed the slide into his had and pressed the trigger. Boom.

For those unfamiliar with Glock pistols the chamber must be empty, the trigger in the rear position (fired) and the slide moved to the rear about a quarter inch. The slide lock is held down and the slide moved forward off the frame.

My guy was lucky, no permanent damage to his hand. Twenty years later you can't see any sign of injury.

Tho.. we did call him "Boomer" from that point forward.

:-)

G2
gunnertwo is offline   Reply With Quote
