Default Luger 45 ACP Magazine Progress

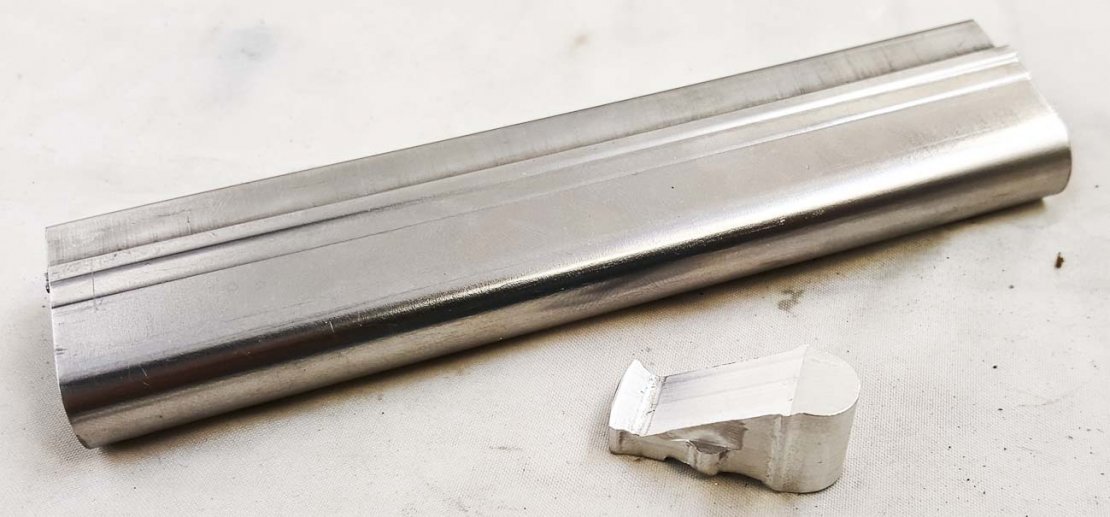

After a bit of playing around with the dies ,

we got a good bend on a magazine tube.

Follower fits well also.

Tube slide in and out of the frame with no effort,

8 rounds go in and go out.

Original plan to use a machine vise for bending did not work, test tube done with a friends 20 ton press,

New 50 ton press is on order for next week delivery.
Attached Thumbnails
Click image for larger version

Name:	Luger_45_Magazine01.jpg
Views:	76
Size:	83.0 KB
ID:	64410

Click image for larger version

Name:	Luger_45_Magazine02.jpg
Views:	81
Size:	105.6 KB
ID:	64411

__________________
Eugene@LugerMan.com
LugerMan.com is offline   Reply With Quote
The following 10 members says Thank You to LugerMan.com for your post:
Unread 04-11-2017, 02:06 PM   #2
LugerMan.com
User

LugerMan.com's Avatar

Join Date: Feb 2012
Posts: 377
Thanks: 91
Thanked 361 Times in 113 Posts

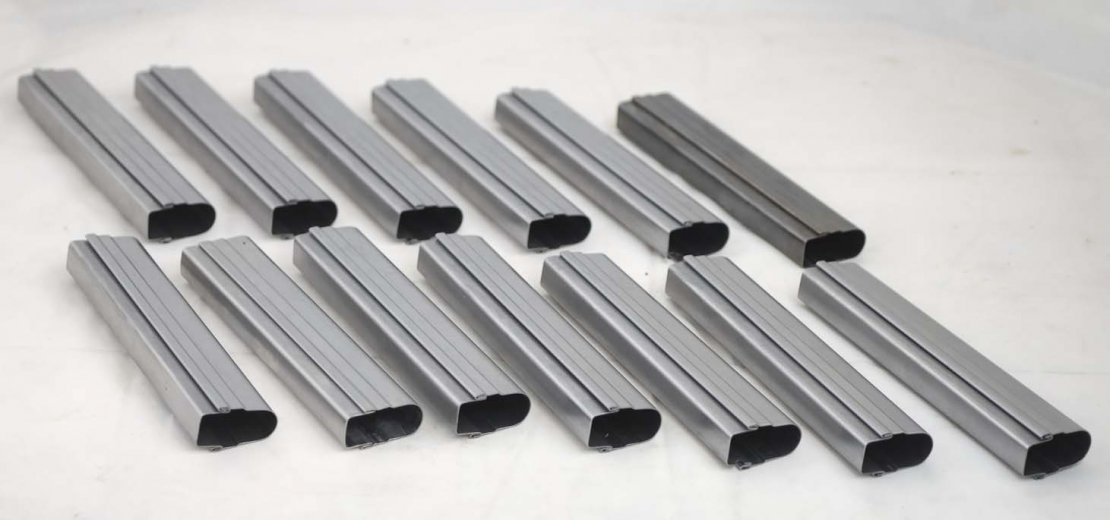

Default Fully assembled magazine

Got a fully assembled magazine and testing with it now,
will make some more this week.
Attached Thumbnails
Click image for larger version

Name:	Luger_45_Parts_01.jpg
Views:	69
Size:	68.9 KB
ID:	65419

Click image for larger version

Name:	Luger_45_Parts_04.jpg
Views:	74
Size:	71.1 KB
ID:	65420

Click image for larger version

Name:	Luger_45_Parts_05.jpg
Views:	70
Size:	58.4 KB
ID:	65421

Click image for larger version

Name:	Luger_45_Parts_07.jpg
Views:	76
Size:	60.7 KB
ID:	65422

__________________
Eugene@LugerMan.com
LugerMan.com is offline   Reply With Quote
The following 2 members says Thank You to LugerMan.com for your post:
Unread 04-11-2017, 02:09 PM   #3
LugerMan.com
User

LugerMan.com's Avatar

Join Date: Feb 2012
Posts: 377
Thanks: 91
Thanked 361 Times in 113 Posts

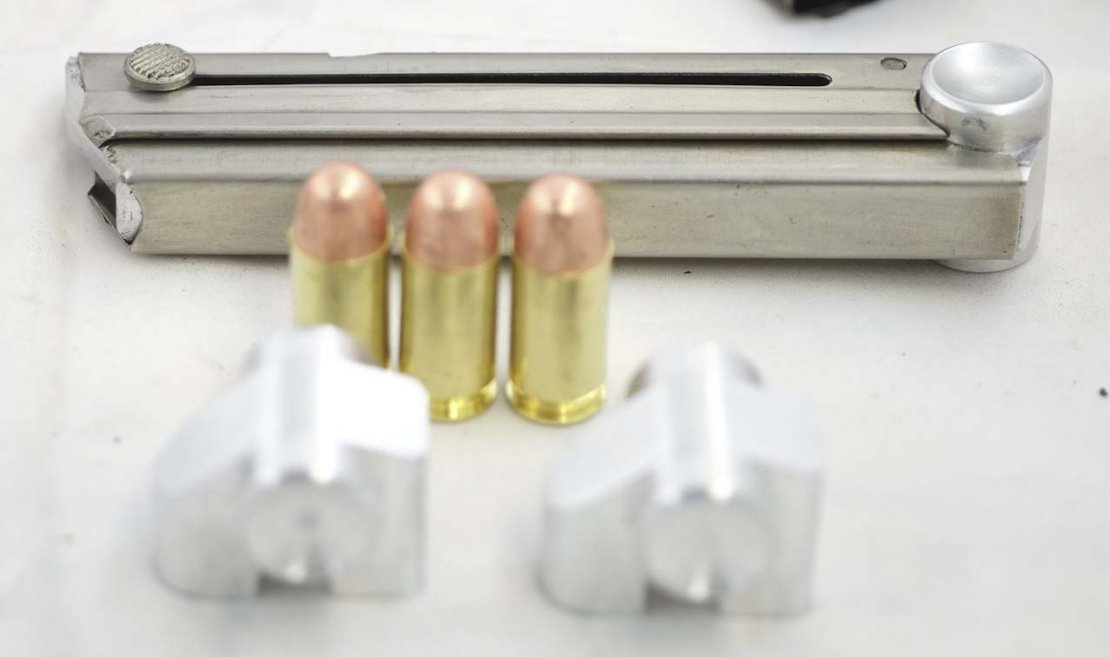

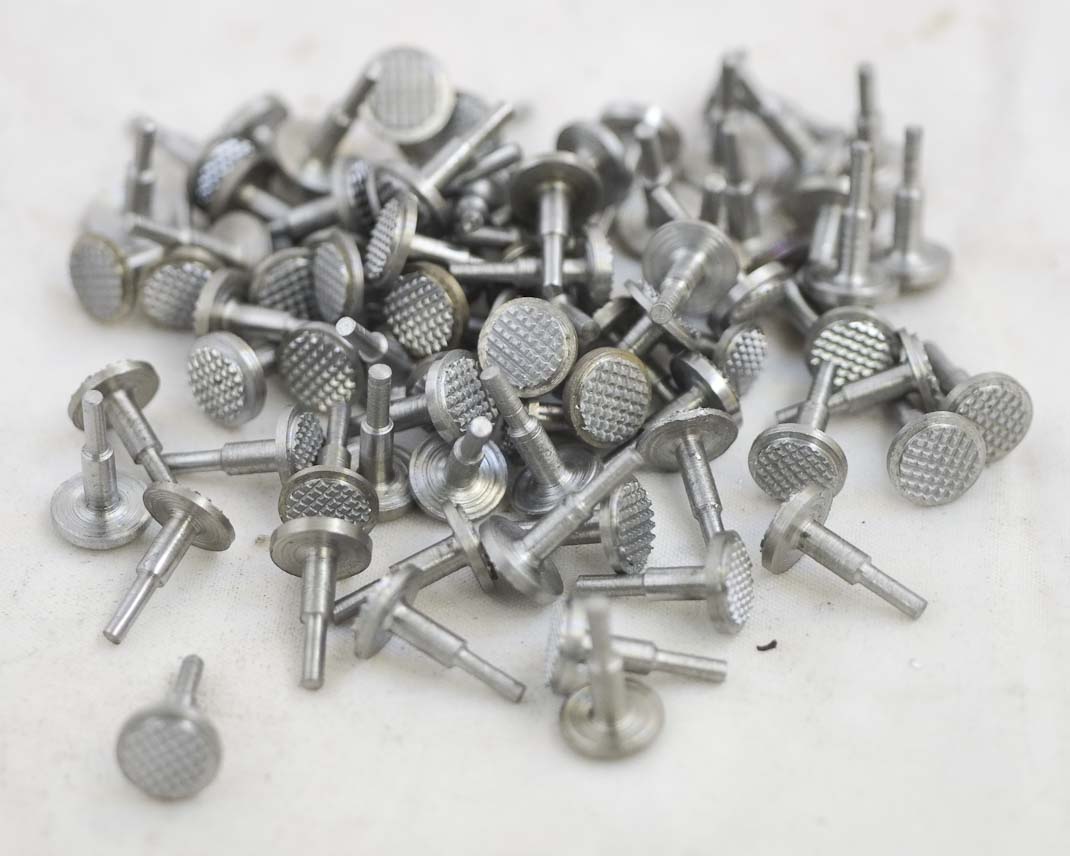

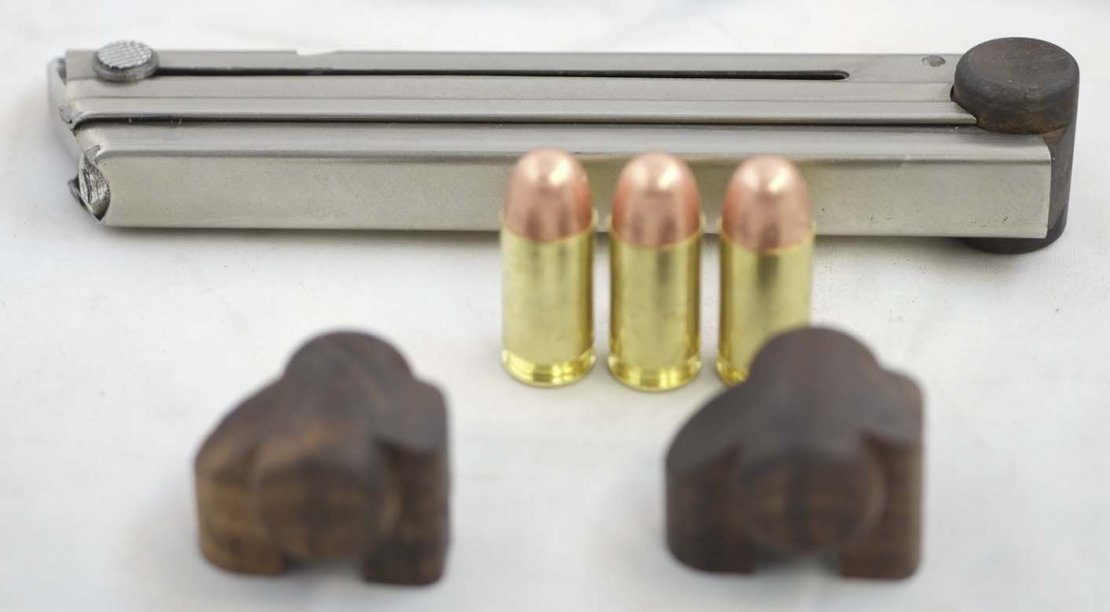

Default More magazine parts

Here are some small parts for magazines
that we made during past 2 weeks.

My page is also updated with progress and pictures
Attached Thumbnails
Click image for larger version

Name:	Luger_45_Parts_21.jpg
Views:	76
Size:	102.3 KB
ID:	65423

Click image for larger version

Name:	Luger_45_Parts_23.jpg
Views:	72
Size:	101.1 KB
ID:	65424

Click image for larger version

Name:	Luger_45_Parts_35.jpg
Views:	84
Size:	81.5 KB
ID:	65425

Click image for larger version

Name:	Luger_45_Parts_24.jpg
Views:	70
Size:	112.5 KB
ID:	65426

__________________
Eugene@LugerMan.com
LugerMan.com is offline   Reply With Quote
The following 3 members says Thank You to LugerMan.com for your post:
Unread 04-11-2017, 02:09 PM   #4
LugerMan.com
User

LugerMan.com's Avatar

Join Date: Feb 2012
Posts: 377
Thanks: 91
Thanked 361 Times in 113 Posts
Default Magazine development time line

Progress on magazine development

2/24/2017: New 50 ton press ordered
2/28/2017: Magazine buttons finished
3/5/2017: Magazine spring guide finished
3/11/2017: Magazine followers finished
3/14/2017: Magazine aluminum bottoms finished
3/21/2017: Finally new 50 ton press has arrived
3/24/2017: First set of 10 magazines tubes made on soft dies with new press
3/29/2017: Two magazines made one for each gun with 0.030 coil springs
3/29/2017: Testing showing unreliable feeding
3/29/2017: Calibration springs set ordered
3/30/2017: New 0.045 coil springs made
4/5/2017: Classic 1907 Luger 45 was tested with pictured magazine using 250 rounds,
some fine tuning was needed for the feeding ramp to get 100% reliability.
Last 75 rounds tested did not show stops of any kind
4/6/2017: 1000 more rounds are order for more detailed testing at a range.
4/10/2017: Dies returned from heat treatment
4/10/2017 Working on assembling 5 more magazines for 1000 round test.
