Police Luger Magazine Safety

aldo35 · 11-07-2014, 08:49 AM

What does the magazine safety look like on police Lugers?

alanint · 11-07-2014, 09:18 AM

Look for one in the archives. It is a bent piece of spring steel, which went behind the trigger. Inserting a magazine pushed it out of the trigger's way and allowed the pistol to be fired. It was a poor design that didn't always work, so it was done away with.

Neil Young · 11-07-2014, 09:24 AM

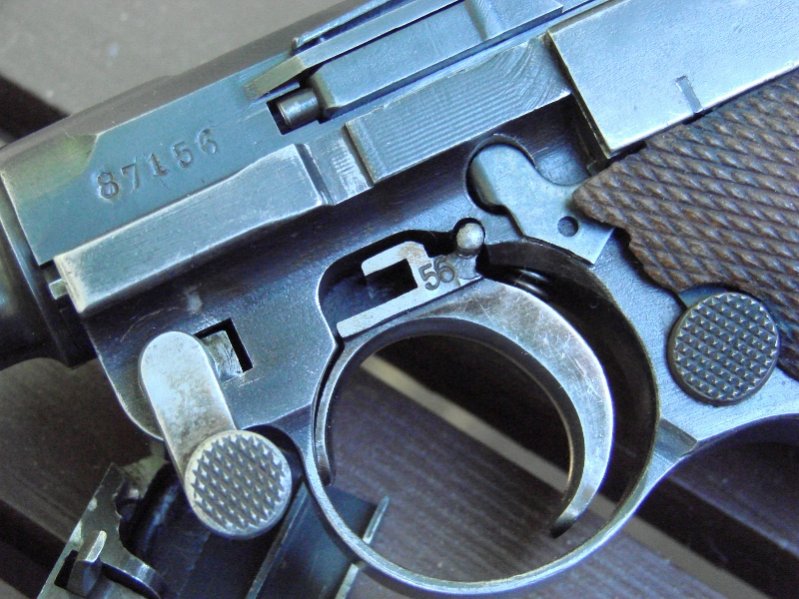

Here's a photo of one that was deactivated by removing the portion that went behind the trigger.

aldo35 · 11-07-2014, 01:35 PM

Thanks for the responses and picture. I had a difficult time imaging what this looked like. I picked up a police Luger that was in pieces in a box and want to assemble. There is the large hole in the frame above the trigger and the cut in the flat above the left grip.

Aldo35

Edward Tinker · 11-07-2014, 01:41 PM

look in the FAQ

really good write up in our book...

aldo35 · 11-07-2014, 08:42 PM

I entered several different Police Luger Magazine Safety in the faq search bar. They all came up "No Match".

What would be the correct query?

Aldo35

Edward Tinker · 11-07-2014, 11:41 PM

The FAQ it self. See stickies under new collectors, the click on the faq...

http://forum.lugerforum.com/showthread.php?t=13121

LU1900 · 11-08-2014, 03:50 AM

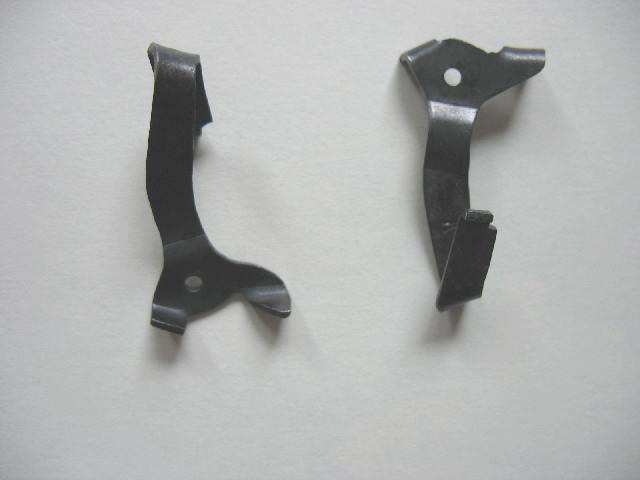

Here some pics from the part out from the luger

aldo35 · 11-08-2014, 08:07 AM

Ed,

What a treasure trove of info !!!!

Aldo

sheepherder · 11-08-2014, 08:16 AM

Quote:

Originally Posted by Edward Tinker

The FAQ it self. See stickies under new collectors, the click on the faq...

http://forum.lugerforum.com/showthread.php?t=13121

Still comes up No Match. FAQ needs a lot of updating. Many pics are missing.
