Early Luger Parts Diagram

Reply

10-02-2012, 07:20 PM	#1

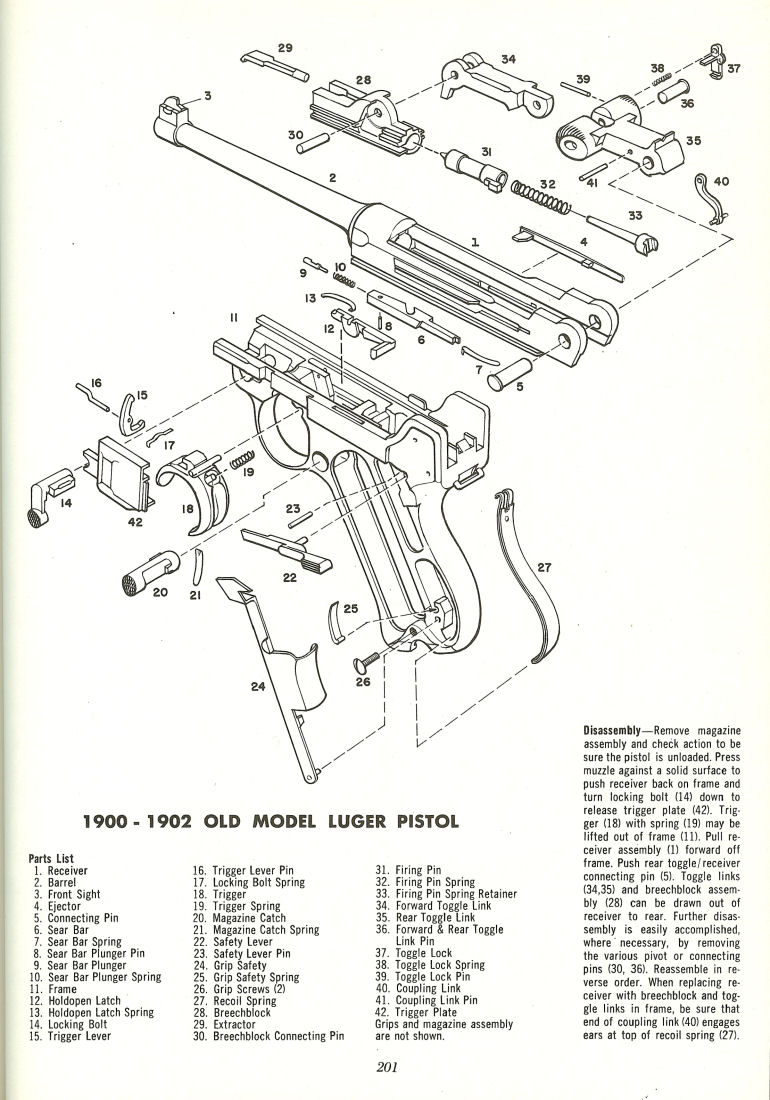

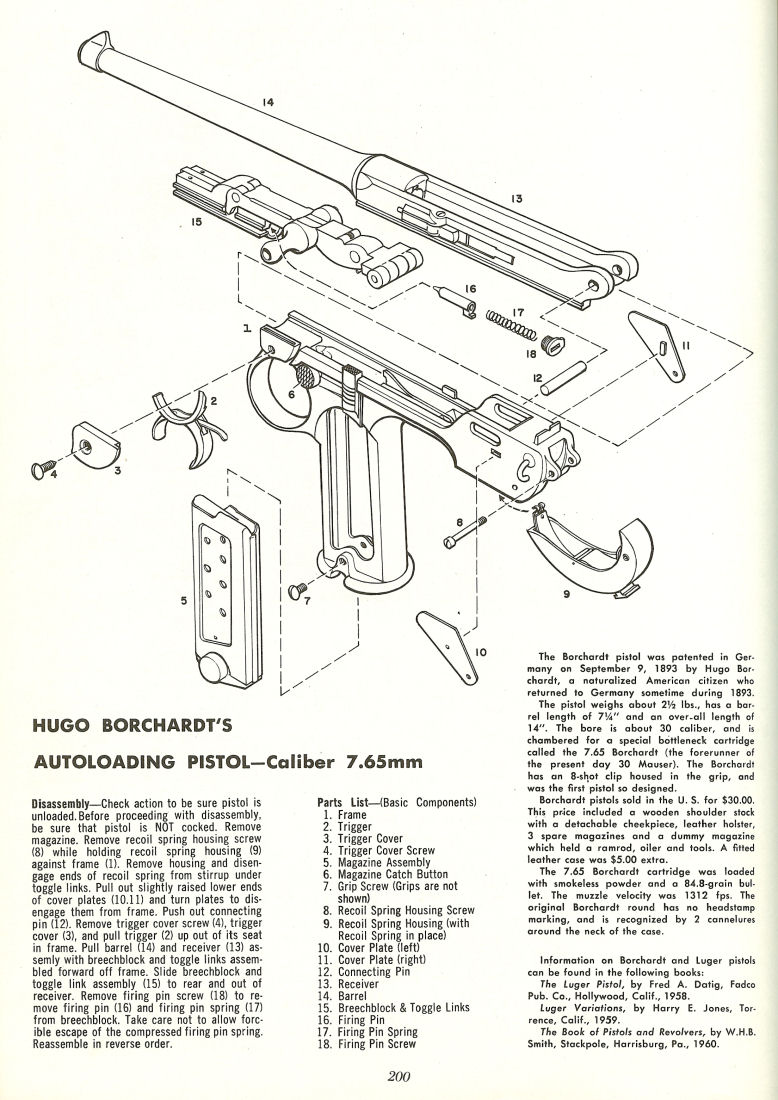

sheepherder Lifer Lifetime Forum Patron Join Date: Feb 2009 Location: ...on the 'ol Erie Canal... Posts: 8,197 Thanks: 1,416 Thanked 4,462 Times in 2,336 Posts	Early Luger Parts Diagram Looking through the 1964 Gun Digest I noticed a couple of Luger parts diagrams...I had been looking for a 1900 parts diagram last week... Anyway, if you need to ask questions about a 1900 part, here's a diagram to refer to... ...And a Borchardt diagram, too...Just in case you don't have any idea how to field strip that old C93... Attached Thumbnails __________________ I like my coffee the way I like my women... ...Cold and bitter... Last edited by sheepherder; 10-02-2012 at 08:51 PM.

The following member says Thank You to sheepherder for your post:
