Forward toggle link - Page 2

Sieger · 07-31-2007, 01:12 PM

Quote:

Originally posted by SIGP2101
Is it just me, but from that picture I can see that your recoil spring is not the right one for 9 mm Luger. It shorter than it supposes to be and it seams broken.

Hi:

Yes, it looks like the recoil spring has been shortened or otherwise modified by some "expert". Recoil wear on the frame looks normal for a Luger that has been shot some.

Sieger

trigger · 08-01-2007, 05:04 AM

Hi everybody

New (mauser) spring, toggle link, coupling link and breechblock is ordered from Tom Heller. I will let you know the result of the repair as soon as I get the stuff.
The first thing I will do is the "paper test" recomended by G. van Vlimmeren

trigger · 08-07-2007, 06:20 AM

Thanks to Tom Heller the Luger is back on track with a new toggle Link and Mauser spring. Works fine and I tested the toggle links movement with both a piece of masking tape and by painting inside the back of the frame.

Thank you all for your help and advice. IÃ?Â´m impressed by the enthusiasm I noticed among Luger fans.

iÃ?Â´ll propobly will get myself another one with all the numbers matching and so on. From collectors point of wiew I dont know what is to recomend but I have started by buying a couple of books about luger.

Kaj

Steinar · 08-07-2007, 09:03 AM

Good to hear that it worked out well for you Kaj! Looks like it became a nice shooter.
Perhaps in the future, there will be enough Luger collectors located in or around Scandinavia to arrange a little 'get together'.

Sieger · 08-08-2007, 01:38 AM

Quote:

Originally posted by trigger
Thanks to Tom Heller the Luger is back on track with a new toggle Link and Mauser spring. Works fine and I tested the toggle links movement with both a piece of masking tape and by painting inside the back of the frame.

Thank you all for your help and advice. IÃ?Â´m impressed by the enthusiasm I noticed among Luger fans.

iÃ?Â´ll propobly will get myself another one with all the numbers matching and so on. From collectors point of wiew I dont know what is to recomend but I have started by buying a couple of books about luger.

Kaj

Hi:

I'm happy your Luger is now shooting.

Something I just noticed is the front sight. The Finns rebuilt their Lugers with front sights very similar to this one. Could your's be a Finn rebuild?

Sieger

trigger · 08-08-2007, 02:41 AM

Hi Sieger

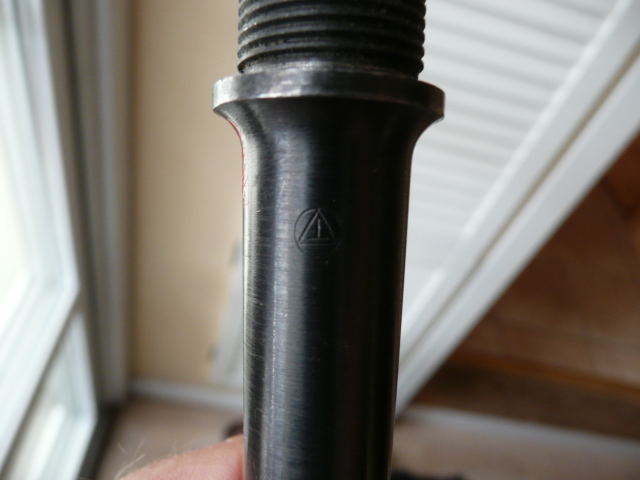

Could be so. The "original" 7,65 barrel has a T ingraved.
I am told this would be Tikkakoski

Kaj

trigger · 08-08-2007, 02:42 AM

I missed the photo

Steinar · 08-08-2007, 09:09 AM

at first I tought it would be a Lahti barrel.. but instead it must be a Tikkakoski made barrel of somekind? (the image above is upside-down)

Lugerdoc · 08-08-2007, 10:01 AM

Definately a Finnish made barrel. TH
