What mag marking for a 1937 S/42 ?

suum cuique · 10-02-2009, 04:06 PM

Gentlemen,
what marking should a magazine have to "fit" a 1937 S/42 luger ?
Eagle 63 or eagle 655? With alloy base?

FNorm · 10-02-2009, 04:17 PM

Either. Quoting loosely from Still's "Third Reich Lugers":

1936-1940

Rolled shaped sheet metal. Alum base., pin through the rear. Type 2, blued , Stamps: droop wing E/63, stick E/63. E/83, Large E/63, E/655. issued 1936 past the m series.

Before this they were the type one mag. Let me know if you need that.

FN

Frank · 10-02-2009, 06:37 PM

A 1937 S/42 should have a stick (or straight) wing eagle over 63. But now be careful!!! There are three different sizes of SE/63 magazines. Believe it or not, they are called SE/37 (for the small), SE/63M (M for Medium) and SE/63L (L for Large). The latter two are for the 1939 variations.

Frank · 10-04-2009, 10:12 AM

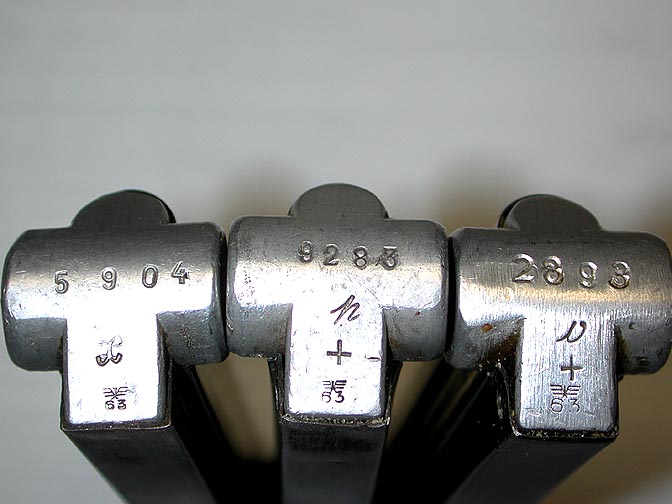

Here is a picture of the three SE/63 magazines, courtesy of Hugh.

suum cuique · 10-04-2009, 11:12 PM

thanks alot for the advise.
