Default How to take pics of guns & other small items (macro photography)

Hi There. *** edited 5/5/2010 -- add a section on cropping and resizing***

I'm new to collecting and have been using this board as a great resource on evaluating items that I've added to my collection. In a recent thread, several members asked for tips on how I take pictures of items I post up here. For example:



and



Since the members here have been so helpful in providing information on my firearms, I happy to share with you my technique on taking pictures. The best part is, you can achieve similar results using items around the house!

Please note that I am NOT a professional, just someone who likes to dabble with equipment (like cameras and guns ) I'm sure there are many on this board who can take waaaay better pictures than what I am presenting here.

With that being said, here's how I do it.

General Overview
For me, there are three key elements to getting good close-up photos (sometimes called Macro photography). The three key elements are 1) Indirect Lighting, 2) Use of a tripod, 3) White Balance adjustment.

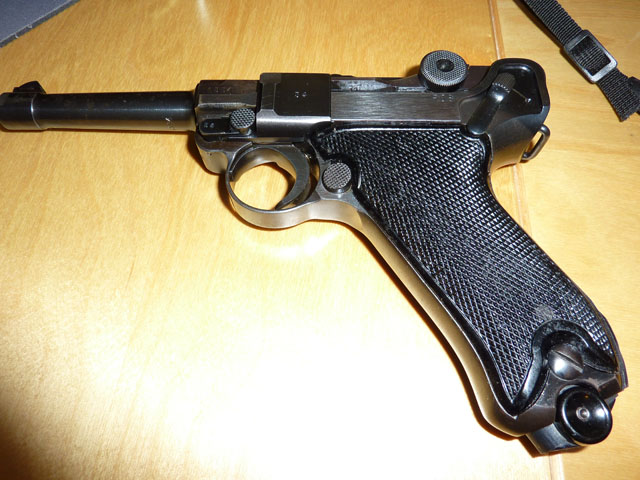

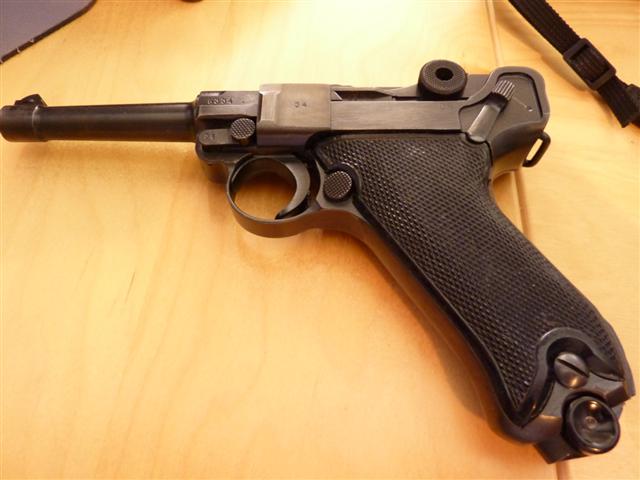

To understand why these elements are key, let's use a typical shot taken with a digital camera. This is typically what you see posted:



What's wrong with this picture? Well the first problem is that the use of the flash gives it a very "harsh" look. In addition, all of the detail gets blown out, we cannot see any of the serial #s or judge the condition of the finish accurately.

Now some people realize they can't get good shots using the flash so they turn it off, resulting in a picture that looks like this:



With the flash off, we can at least see some of the details such as the serial number. However, the picture itself is blurry and has a yellow cast to it from the overhead incandescent light.

So combining the problems of these two pictures, we need to solve for three elements 1) have enough lighting to properly expose the picture, but not so much that it blows out the detail (like using a flash), 2) keep the camera steady enough to get a sharp picture, 3) make sure that the color is accuartely represented. These three issues can be solved by the elements I discussed above, namely indirect lightning, use of a tripod, and setting the white balance.

Use the right equipment

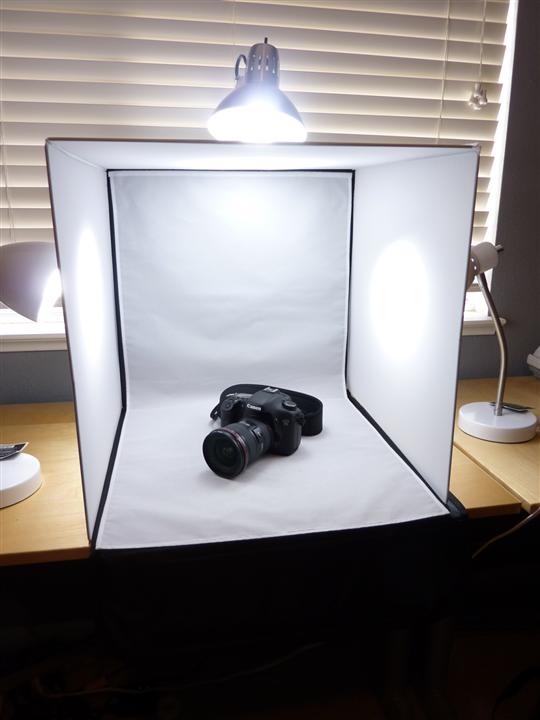

Here's my setup:


To get good pictures, you need the right equipment......NOT!!! Here's how you can accomplish the same thing using stuff around the house and a regular digital camera. All of the pictures from here on will be taken using my wife's consumer "point and shoot" camera, not my digital SLR.

Step 1 -- Make a Light Box
The goal of this step is to provide enough light on the item you are photographing, but indirectly. Photographers call this a light box or light tent. The idea is simple, diffuse the light going to the object, accomplishing the task of lighting it up while avoiding harsh shadows.

Start with a cardboard box, a moving box is a good size.


Cut the box on the left and right sides, and on the top.


Now cover the holes using that is white and will diffuse light. A t-shirt, bedsheet, or white kitchen trash bag all work. I used trash bags. At first I did a bag per side, but it was not letting enough light in. I ended up cutting up the trash bag so that only it was only a single layer of plastic for each side. Also put something to use as a background inside of the box. A white pillow cover would work well. Just about any type of fabric inside will work (as long as it does not reflect).



Now you have your "light box". Simply light it up using any kind of lamps you might have around the house. I used cheapie "desk lamps" that I bought from Walmart for $9 each.

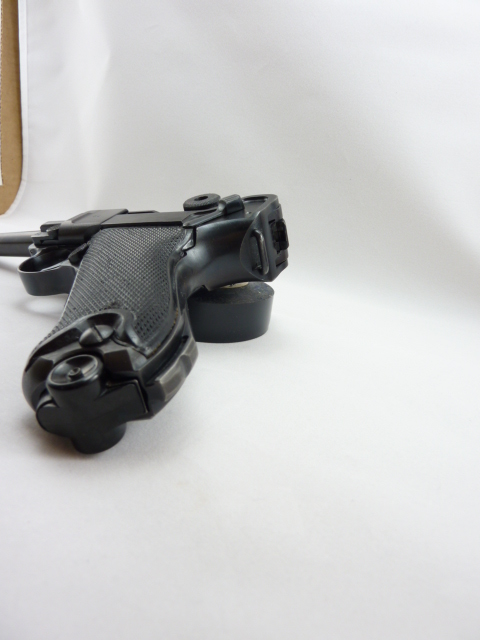

Now place the item you are photographing inside the light box. I have found that a roll of tape to be an excellent item to prop things up. Because it's somewhat sticky on the edges and doesn't damage anything.

Luger propped up using a roll of electrical tape:


Step 2 -- Setting the white balance
Ok here's where we have to get a little technical. Have you ever seen pictures where there seemed to be a yellow cast to the entire picture? this is because the camera could not set the white balance properly. Most consumer cameras have somethign called "auto white balance" as the default. Unfortunately auto white balance doesn't always work.

White balance is the key to getting accurate colors in your picture. Below is a series of pictures I took using the different white balance options (auto, daylight, cloudy, indoor light, etc)



as you can see none of them are quite right. Fortunately most digital cameras have somethign called "custom white balance" (although not many people know how to use this feature).

The idea is, you point the camera at something you define as "white", and then you tell the camera that to adjust it's internal color parameters to make the item you are pointing at white.

So for our picture here, I simply pointed the camera at our backdrop, chose the "set custom white balance", and voila, the backdrop turned perfectly white and the color looked accurate.

Step 3 -- Position the camera
To get really sharp pictures, you will need to make use of a tripod. Since we are not using flash and only indirect lighting, the camera needs to keep the shutter open longer to expose the picture. However, if the camera moves (even just a tiny bit), the result will be a blurry picture. We are not capable as human beings to hold the camera steady enough to get a super sharp picture using this type of setup and with the available light.

Camera tripods are really cheap. On ebay I see a new 50" tripod for $12.95 and free shipping. This will work perfectly for our purposes.

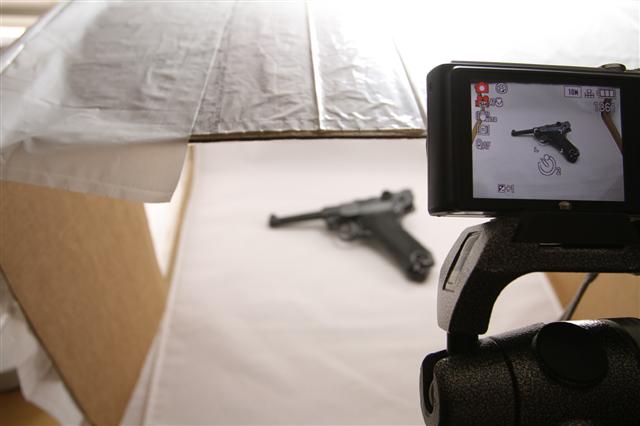

Place the camera on the tripod and adjust the tripod to get a good angle of the item you are taking a picture of. I like to adjust the angle so that the item I used to prop the gun up is hidden.



Step 4 -- Take the picture!
I like to use the timer function to actually take the picture. As I mentioned above, any little shake will blur the picture. This way I can press down on the button, start the timer, and then back away from the camera. The camera will count down a few seconds, and then take the pic without me physically touching (shaking) the camera.

The final touches -- cropping and resizing

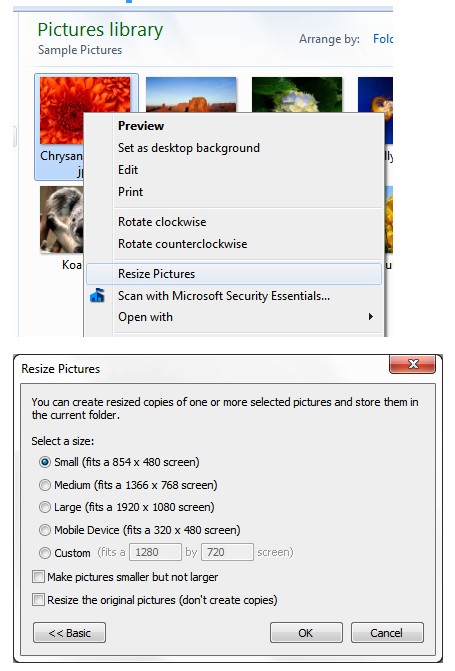

Now most of your cameras will take pictures waaaay too big for forum use. You'll need to resize the picture into a smaller size for it to fit nicely in a forum post. I mostly resize my pictures to have a horizontal width of about 800 pixels. To resize the picture you have a variety of options. One option is to resize the picture in a photo editing program (like Photoshop, or Photodeluxe, or whatever software your camera came with). Or, for a quick and dirty resize I really like the program "Image Resizer", which allows you to right click on a photo and resize it right from inside of windows (no separate app needed). You can get Image Resizer (a free program) from here: http://imageresizer.codeplex.com/



The art of the crop
One option to consider instead of resizing the entire picture is to crop it first. Cropping means to cut out the part of the picture you want to save. Typically you'll crop the picture, but even the cropped portion will still be too big to share on the forum, so you will still need to resize it. So crop then resize! This is actually an advantage of high megapixel cameras, you can use crop to really zoom in on the details and it will still fill the whole picture.

For example, let's use the picture I posted earlier of my setup:

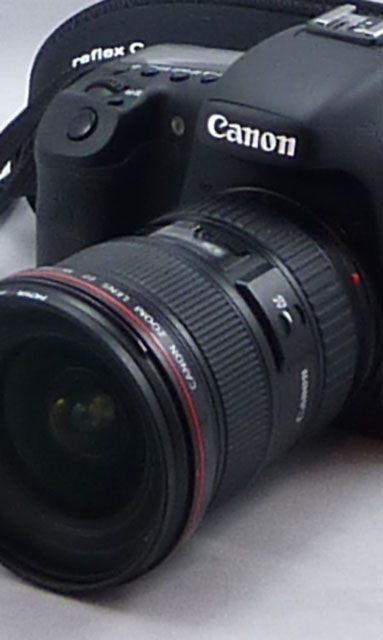

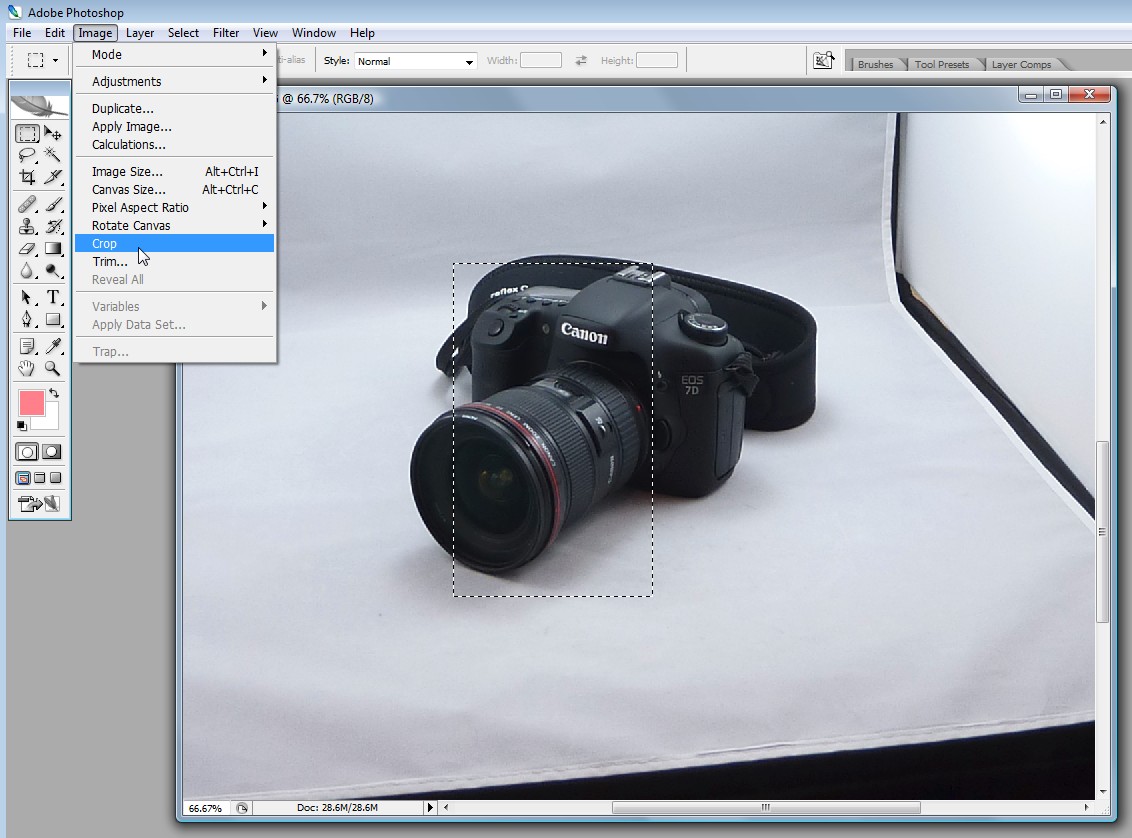

Let's say that I only wanted to show you a part of the camera. Well I would use a photo program to crop out all the stuff I don't want.


which leaves us with the following result (after being resized to fit into this posting)


The Final Result

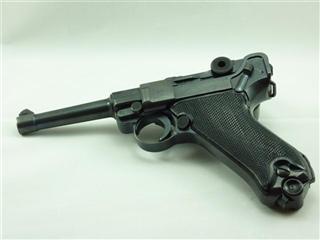

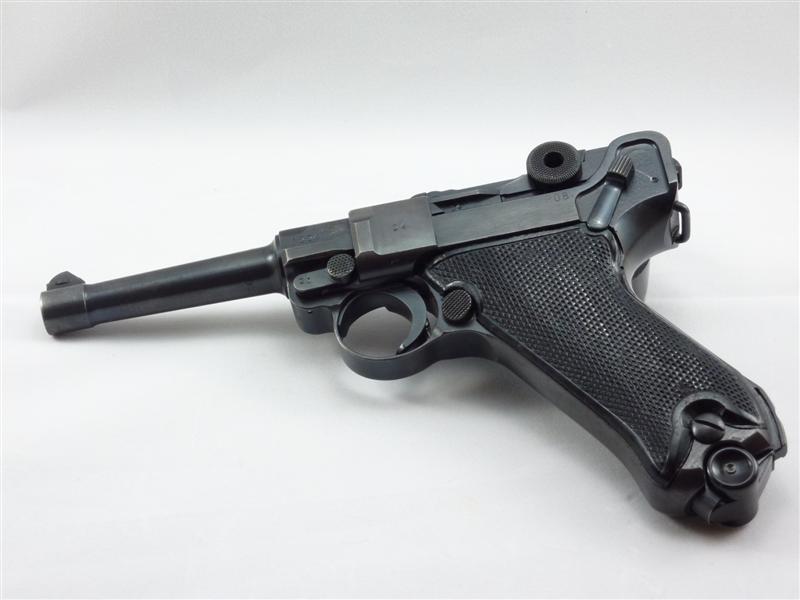

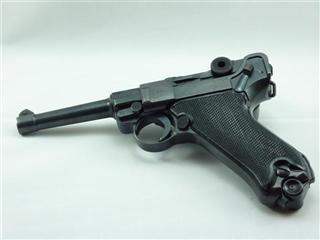

So after all of this hard work, let's see the end result!!!! You can see the color looks nice because we set the white balance. I think it looks pretty nice considering I used my wife's cheapy point and shoot and a cardboard box with garbage bags!!!!!


Applying these principles
The same principles of indirect lightening, white balance, and tripod can be applied for use without the lightbox (for example, taking pictures of rifles where fitting it into a lightbox is problematic).

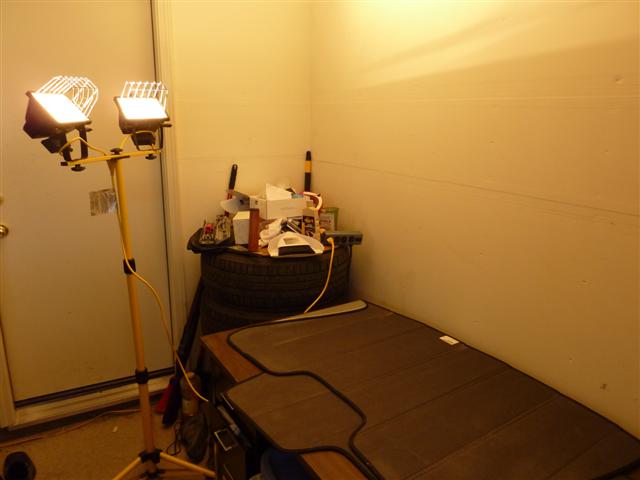

Here's my rifle photo setup, a cheap shop light pointed towards the ceiling.


As you can see these halogen lights throw off a very yellow cast. So we'll need to do the custom white balance again.

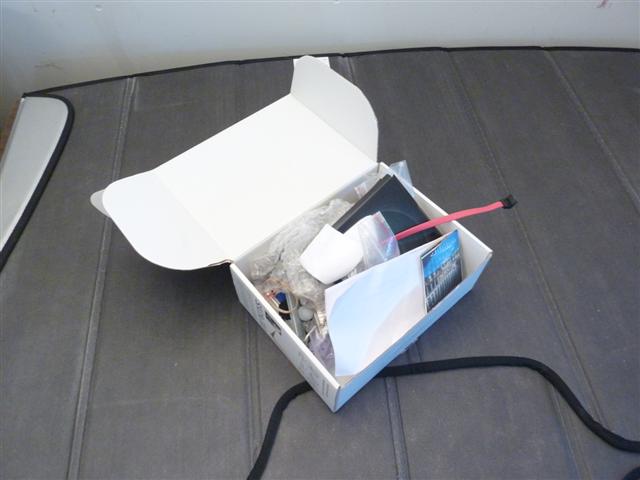

1) Grab something white (white box of junk I had handy in the garage)


2) Choose "set custom white balance" on the camera, voila! box turns white!


and here's a pic after WB has been set:

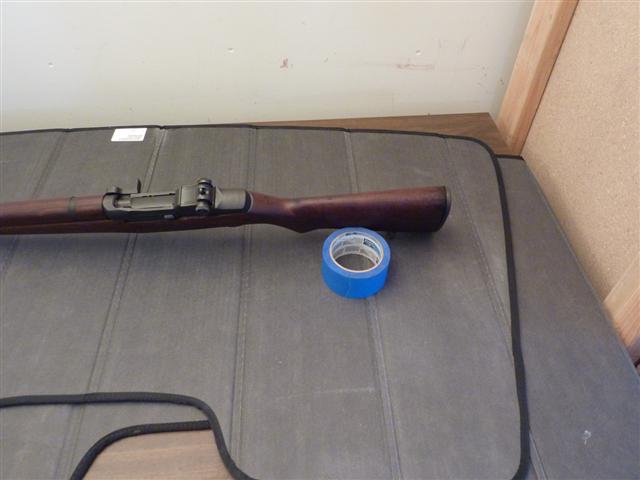

using my "tape trick" to prop it up

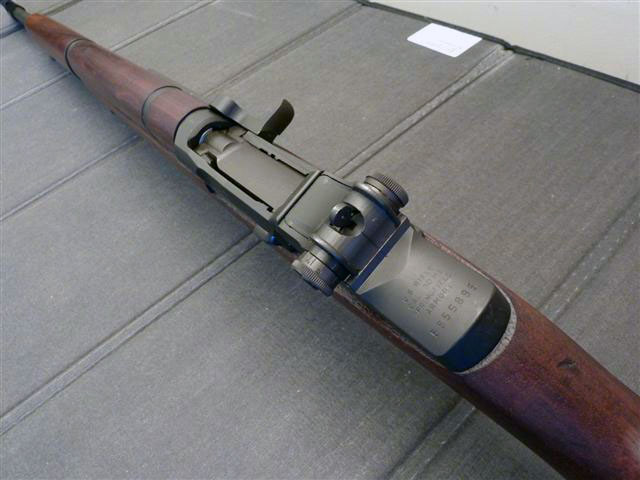

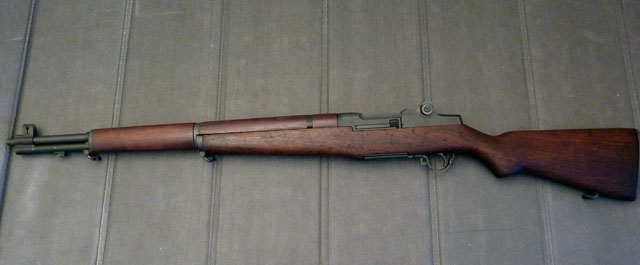

the pic:

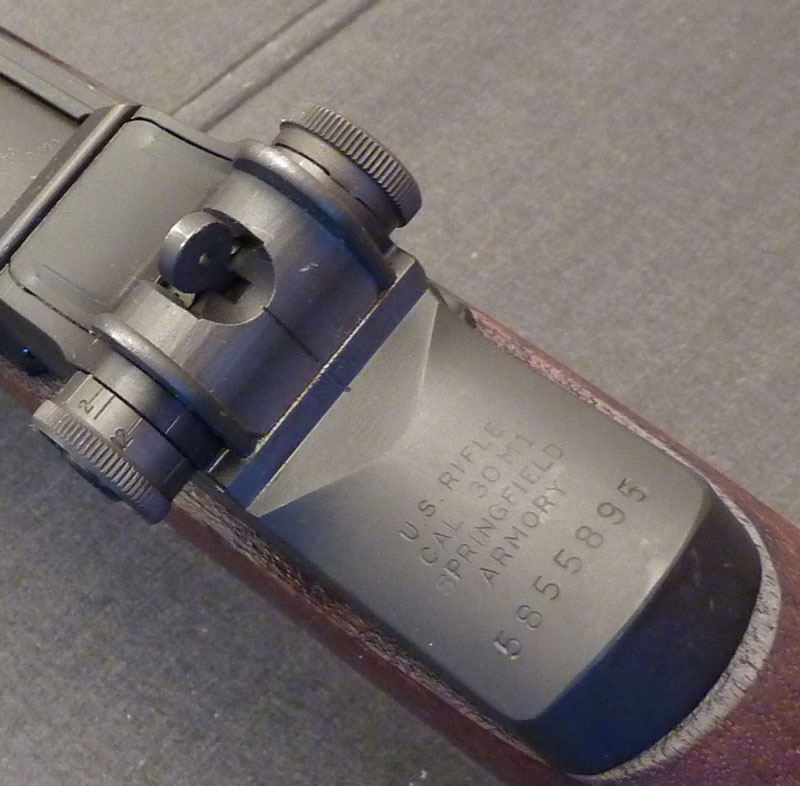

and finally after playing with cropping:


Where to go from here

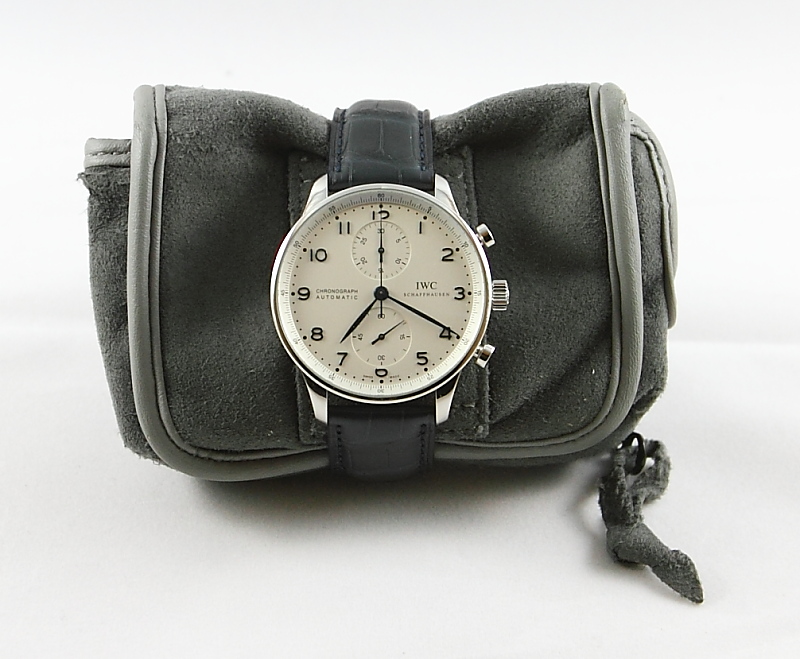

You can apply the techniques here for pretty much any kind of "product" photography. Anything that fits inside of the light box will photograph well be it guns or other stuff:



Also, experiment with the background or add "color" to your pictures. I tried to go for a entire "look" with these pictures:

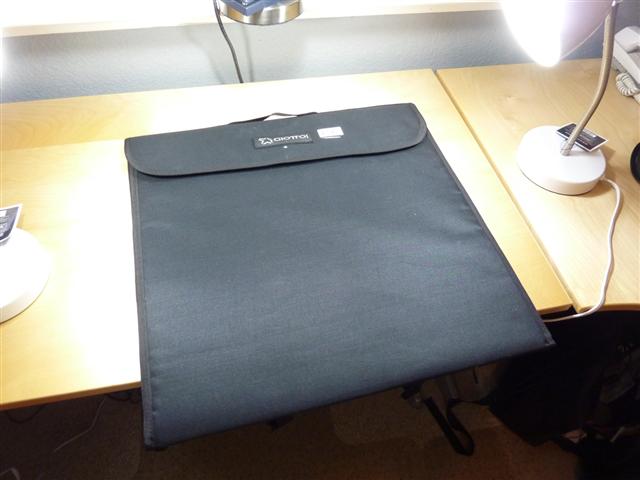

If you end up taking a lot of pictures, you might want to end up investing in a little better light box. I got one that folds up, it was around $59. That way I can set it up and break it down quickly. It comes with several different colored backdrops as well.


Finally if you really get into this, then you might consider getting a digital SLR so that you have full control of the camera -- interchangeable lenses, shutter speed, aperature, etc.

Well, I hope this helps! Feel free to ask any questions and I look forward to seeing your pictures.

Last edited by beetledude; 05-05-2010 at 10:30 PM.
beetledude is offline   Reply With Quote
The following 16 members says Thank You to beetledude for your post:
Unread 05-05-2010, 08:02 PM   #2
FNorm
Patron
LugerForum
Patron

FNorm's Avatar

Join Date: Mar 2009
Location: Colorado
Posts: 978
Thanks: 68
Thanked 127 Times in 108 Posts
Default

Thanks!

Fn
FNorm is offline   Reply With Quote
Unread 05-05-2010, 08:03 PM   #3
alvin
User

Join Date: Jul 2007
Location: US
Posts: 3,843
Thanks: 132
Thanked 728 Times in 437 Posts
Default

Cool!!!

Thanks a lot!
alvin is offline   Reply With Quote
Unread 05-05-2010, 08:21 PM   #4
alvin
User

Join Date: Jul 2007
Location: US
Posts: 3,843
Thanks: 132
Thanked 728 Times in 437 Posts
Default

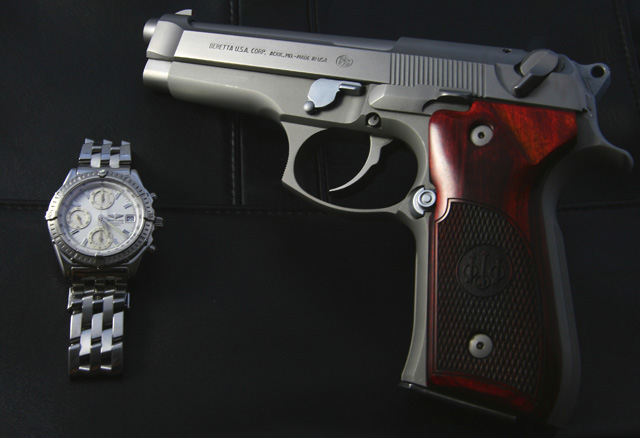

I just realized one fact -- In this era, 50% of selling an ordinary gun online is selling the pictures (another 50% is price/condition ratio). Picture like the following one is hard to sell, even if the item is perfectly fine and asking price is very modest. Especially when it came with "AS IS, NO RETURN" clause.
Attached Thumbnails
Click image for larger version

Name:	pix47531312.jpg
Views:	74
Size:	35.7 KB
ID:	12937

alvin is offline   Reply With Quote
Unread 05-05-2010, 08:40 PM   #5
Curly1
User

Curly1's Avatar

Join Date: Oct 2005
Location: Upstate New York
Posts: 1,216
Thanks: 95
Thanked 695 Times in 358 Posts
Default

Nice presentation Dude.

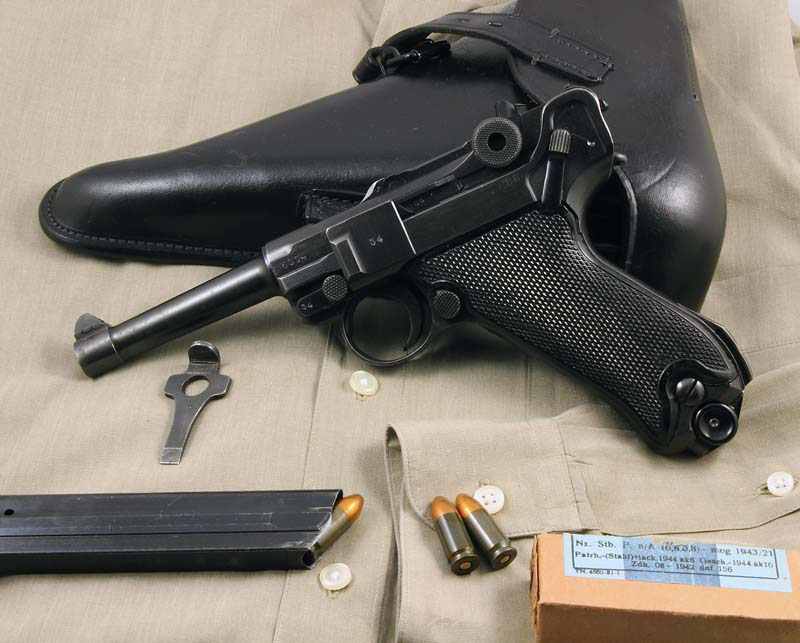

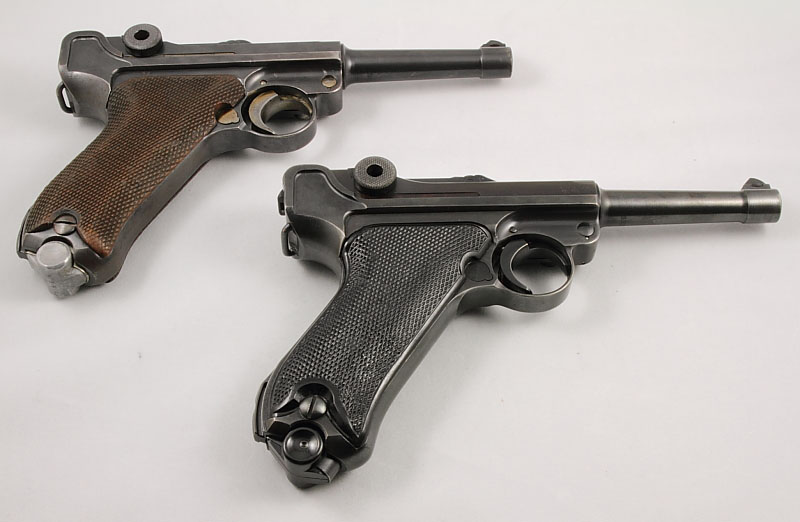

Yes Alvin I agree, I can't belive the pics peeps put up and expect to sell. I have asked for better pics from some auctions to no avail. There is always some kinda excuse so I move on. If you can't take the time neither can I.
__________________
Laugh hard and often.

Gary
Curly1 is offline   Reply With Quote
Unread 05-05-2010, 08:56 PM   #6
mrerick
Super Moderator - Patron
LugerForum
Life Patron

mrerick's Avatar

Join Date: Dec 2009
Location: Eastern North Carolina, USA
Posts: 3,883
Thanks: 1,362
Thanked 3,072 Times in 1,493 Posts
Default

This is a nicely done article! I've converted it to a .PDF file in case the site would like to post it in the general information section.

Please contact me and I'll forward it... Marc



Marc
mrerick is offline   Reply With Quote
Unread 05-05-2010, 10:17 PM   #7
beetledude
User

Join Date: Feb 2010
Posts: 20
Thanks: 1
Thanked 18 Times in 3 Posts
Default

FYI I added a bit more content and fixed up a few small things. If this site wants it as a PDF please remake it from the new version posted above.

Thanks!
beetledude is offline   Reply With Quote
The following member says Thank You to beetledude for your post:
Unread 05-05-2010, 11:44 PM   #8
Edward Tinker
Super Moderator
Eternal Lifer
LugerForum
Patron

Edward Tinker's Avatar

Join Date: Jun 2002
Location: North of Spokane, WA
Posts: 15,873
Thanks: 1,950
Thanked 4,458 Times in 2,061 Posts
Default

I have made this a sticky and moved it to new collectors (with redirect for 3 months)


Well done!

Marc, redo, send to me via pdf and if not too big I will post it somewhere...


ed
Edward Tinker is offline   Reply With Quote
Unread 05-06-2010, 12:04 AM   #9
tomaustin
Lifer X5
Lifetime Forum
Patron

Join Date: Sep 2008
Location: texas
Posts: 708
Thanks: 87
Thanked 522 Times in 201 Posts
Default ed tinker--where are you gonna store this article...i want to refer back

as i set up a similar system...thanks, tom
tomaustin is offline   Reply With Quote
Unread 05-06-2010, 04:50 PM   #10
newluger
User

Join Date: Aug 2009
Location: Franklin Tennessee
Posts: 119
Thanks: 22
Thanked 10 Times in 7 Posts
Default

Beetledude, Great article and thank you for taking the time to explain it. Also where is this presentation going to be stored. Great reference material.

Newluger
newluger is offline   Reply With Quote
Unread 05-06-2010, 11:24 PM   #11
mrerick
Super Moderator - Patron
LugerForum
Life Patron

mrerick's Avatar

Join Date: Dec 2009
Location: Eastern North Carolina, USA
Posts: 3,883
Thanks: 1,362
Thanked 3,072 Times in 1,493 Posts
Default

Email sent with revised PDF to Ed.

Marc
mrerick is offline   Reply With Quote
The following member says Thank You to mrerick for your post:
Unread 05-06-2010, 11:33 PM   #12
Edward Tinker
Super Moderator
Eternal Lifer
LugerForum
Patron

Edward Tinker's Avatar

Join Date: Jun 2002
Location: North of Spokane, WA
Posts: 15,873
Thanks: 1,950
Thanked 4,458 Times in 2,061 Posts
Default

Quote:
Originally Posted by mrerick View Post
Email sent with revised PDF to Ed.

Marc
Marc, try again, ed_tinker@hotmail.com


Ed
Edward Tinker is offline   Reply With Quote
Unread 05-08-2010, 10:38 PM   #13
William Hull
User

William Hull's Avatar

Join Date: May 2008
Location: south central Kentucky--Tompkinsville
Posts: 33
Thanks: 22
Thanked 5 Times in 4 Posts
Default

Beetledude,
Thanks for a wonderful presentation. I learned more about taking a picture and posting to forum from your post than anything else I have previously read.

William
William Hull is offline   Reply With Quote
Unread 08-19-2010, 04:45 PM   #14
Edward Tinker
Super Moderator
Eternal Lifer
LugerForum
Patron

Edward Tinker's Avatar

Join Date: Jun 2002
Location: North of Spokane, WA
Posts: 15,873
Thanks: 1,950
Thanked 4,458 Times in 2,061 Posts
Default

I realized I had not added the pdf into this sticky.

Sorry and thanks to Marc E


Ed
Attached Files
File Type: pdf PhotographingFirearms.pdf (1.51 MB, 116 views)
__________________
Edward Tinker
************
Co-Author of Police Lugers - Co-Author of Simson Lugers
Author of Veteran Bring Backs Vol I, Vol II, Vol III and Vol IV

Edward Tinker is offline   Reply With Quote
The following member says Thank You to Edward Tinker for your post:
Unread 08-19-2010, 05:32 PM   #15
paid4c4
User

paid4c4's Avatar

Join Date: Jun 2010
Location: Northern Kentucky
Posts: 62
Thanks: 1
Thanked 5 Times in 2 Posts
Default

Nice thread, thank you.
Bill
paid4c4 is offline   Reply With Quote
Unread 08-19-2010, 05:37 PM   #16
mrerick
Super Moderator - Patron
LugerForum
Life Patron

mrerick's Avatar

Join Date: Dec 2009
Location: Eastern North Carolina, USA
Posts: 3,883
Thanks: 1,362
Thanked 3,072 Times in 1,493 Posts
Default

Glad to see the PDF posted. It's a great overview. Hope the PDF makes it easier to download and use...

Marc
__________________
Igitur si vis pacem, para bellum -
- Therefore if you want peace, prepare for war.
mrerick is offline   Reply With Quote
Unread 08-23-2010, 08:41 PM   #17
paid4c4
User

paid4c4's Avatar

Join Date: Jun 2010
Location: Northern Kentucky
Posts: 62
Thanks: 1
Thanked 5 Times in 2 Posts
Default

I've been thinking about this thread and just wanted to add a comment. It's been my finding that a good lense is more important than high mega pixles. You're right on regarding proper lighting and using light boxes. At least you've provided food for thought, thanks
Bill
paid4c4 is offline   Reply With Quote
Unread 08-24-2010, 08:02 AM   #18
the gunman
User

the gunman's Avatar

Join Date: Mar 2003
Location: Leland NC 28451
Posts: 1,017
Thanks: 1
Thanked 13 Times in 12 Posts
Default Photo's

"WOW" Thank You
the gunman is offline   Reply With Quote
Unread 08-24-2010, 08:46 AM   #19
mrerick
Super Moderator - Patron
LugerForum
Life Patron

mrerick's Avatar

Join Date: Dec 2009
Location: Eastern North Carolina, USA
Posts: 3,883
Thanks: 1,362
Thanked 3,072 Times in 1,493 Posts
Default

Following up on Bills comment, it's much easier to take precision focused pictures using a Digital SLR camera than a point and shoot. With either type camera a tripod and good lighting is essential.

You can eventually get a good sharp well lit picture from a point and shoot camera, especially one that has a "close up" focus setting (it usually looks like a flower symbol on one of the camera controls or it's setup menu).

With an SLR set for manual focus and aperture priority (meaning you set the exposure using the lens' "F-Stop" control by hand) , you can exactly see what you'll be getting.

The "Megapixel camera wars" are basically "mine is bigger than yours" once your get over about a 4 Mpxl sensor. The sensor determines how large you can enlarge a photograph, or how tightly you can crop it in on detail.

It's amazing how many excellent used digital SLR cameras with interchangeable lenses are available used in almost new condition. Local camera shops with a community history are excellent places to look for one. E-Bay can also be a good source, but buyer beware...

A few years ago, I picked up an autofocus Macro lens for my Nikon. This is my preferred lens for closeup photography. It really has made a difference.

Marc
__________________
Igitur si vis pacem, para bellum -
- Therefore if you want peace, prepare for war.
mrerick is offline   Reply With Quote
Unread 08-24-2010, 09:27 AM   #20
Norme
Always A
Lifetime Forum
Patron

Norme's Avatar

Join Date: Jul 2009
Location: Colorado
Posts: 2,406
Thanks: 213
Thanked 2,555 Times in 923 Posts
Default

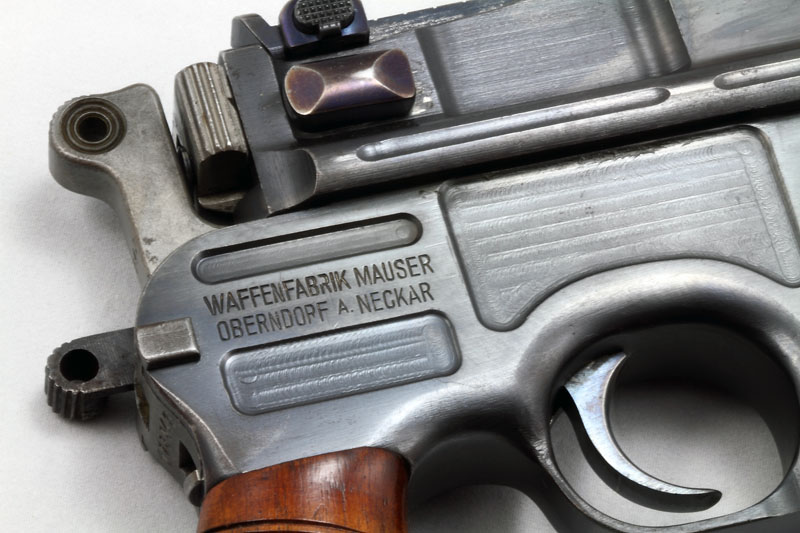

I'd like to echo Marc's advice about using an SLR. I set my Nikon D80 on full manual. Manual focus allows me to get the area of interest in sharp focus, and manual exposure control ensures that blued steel is correctly rendered. I take a few test shots, fiddling with aperture and shutter speeds, until I get it right. Finally, I use a plain white sheet of paper as background, it's amazing the difference this makes. Regards, Norm
Attached Thumbnails
Click image for larger version

Name:	DSC_9901.jpg
Views:	79
Size:	52.3 KB
ID:	14678

Norme is offline   Reply With Quote
The following member says Thank You to Norme for your post:
Reply

Thread Tools
Display Modes

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off

Forum Jump


All times are GMT -4. The time now is 06:06 AM.


Powered by vBulletin® Version 3.8.4
Copyright ©2000 - 2023, Jelsoft Enterprises Ltd.
Copyright 1998 - 2023, Lugerforum.com
