Unread 08-27-2016, 09:08 AM   #1
Beginner
User

Join Date: Aug 2016
Posts: 7
Thanks: 0
Thanked 0 Times in 0 Posts
Default What is it?

I am looking at a p.08 Krieghoff, that appears identical to the gun that appears on Page 314 of Kenyon's book - the only difference is the gun under inspection is a 9m/m whereas the gun in the book is 7.65m/m.
Altho the gun is serialed on the frame and barrel and has an "I" suffix, it does not have the "P" typical of commercials, or any other surface numbers
The frame has a vertical c/U, and the barrel has the c/U and the Kreighoff eagle2 proof mark
Grips are brown plastic:

bigbye:

Last edited by Edward Tinker; 09-06-2016 at 11:41 PM.
Beginner is offline   Reply With Quote
Unread 08-27-2016, 09:29 AM   #2
ithacaartist
Twice a Lifer
Lifetime Forum
Patron

ithacaartist's Avatar

Join Date: Mar 2011
Location: Atop the highest hill in Schuyler County NY
Posts: 3,155
Thanks: 6,164
Thanked 2,280 Times in 1,246 Posts
Default

Welcome Mike,

I wouldn't worry, most HK Lugers were military, thus 9mm.

I'm pretty sure the "P" you're looking for is a Swiss marking for commercials, not German or other.

We'd like to see some pics!
__________________
"... Liberty is the seed and soil, the air and light, the dew and rain of progress, love and joy."-- Robert Greene Ingersoll 1894
ithacaartist is offline   Reply With Quote
Unread 08-27-2016, 12:23 PM   #3
guns3545
Lifer
Lifetime Forum
Patron

Join Date: Aug 2006
Location: Florida
Posts: 428
Thanks: 590
Thanked 480 Times in 212 Posts
Default

Mike,

Welcome to the Forum.

As previously stated pictures are essential for anyone to provide definitive answers to your question.

First, the easy part: In the 20s, DWM did manufacture two variations of Lugers for resale by Krieghoff. Outside of the name Krieghoff on the back frame or sideframe, there was nothing actually manufactured by Krieghoff. The guns were a neat add-on to their sporting arms business.

However, these guns had to conform with the International Control Commission's restrictions on German arms manufacturers. This affected barrel lengths and calibers. But both 7.65 and 9mm are observed.

There was a third variation illustrated on page 314 to which you refer. I have never seen the pistol and outside of this one example, I am not aware of any other existant. So??? And yes, I know that Gibson acknowledges the possibility of DWM building such a variation. But then why regress on the logo when they actually started to build P.08s for the LW themselves?

All three of these variations had commercial proofing and walnut grip panels. All were serialized with 4 digits and an i-suffix. That's it, no "P" on these resale variations.

Sadly, the gun you have described does not appear to fall into any of these three categories. That's why we need pictures.

But here are a couple of things to consider:

1. The Luftwaffe did not exist until 1933/34, maybe only in 1935. Thus there was no Luftwaffenamt stamp, i.e. the eagle 2 when DWM was making these guns.
2. Plastic/bakelite grips did not come into use until the mid-1930s. Krieghoff started using them in 1936.

There is one last possibility to explain this piece and I hesitate to mention it. But..HK did rework thousands of guns of literally every manufacturer. They did not re-serialize them but added various parts in the rework process. A few of these reworks have been observed with LWaA2 proofs on parts.

Hope this helps. Pictures!!! Without them, it is really difficult to comment with any authority. Could be that only a detailed examination of the piece itself will reveal its secrets.

John

Last edited by guns3545; 08-28-2016 at 09:31 AM. Reason: Add Information
guns3545 is offline   Reply With Quote
The following 5 members says Thank You to guns3545 for your post:
Unread 09-05-2016, 03:22 PM   #4
1933 FORD NUT
User

1933 FORD NUT's Avatar

Join Date: Apr 2015
Location: WI
Posts: 85
Thanks: 3
Thanked 69 Times in 36 Posts
Default

Agreed on the pics needed . I would be REAL interested in good close ups of the E2 marking and the center toggle link . Doesn't it seem odd the logo is late S and newer style ?
1933 FORD NUT is offline   Reply With Quote
Unread 09-06-2016, 10:44 PM   #5
Ben M.
User

Ben M.'s Avatar

Join Date: Dec 2009
Location: Retired to Naples, FL.
Posts: 465
Thanks: 79
Thanked 95 Times in 74 Posts
Default

C/u or C/n ?

C/u/u is seen with mauser but hav 2 u's
Ben M. is offline   Reply With Quote
Unread 09-06-2016, 11:41 PM   #6
Edward Tinker
Super Moderator
Eternal Lifer
LugerForum
Patron

Edward Tinker's Avatar

Join Date: Jun 2002
Location: North of Spokane, WA
Posts: 15,784
Thanks: 1,818
Thanked 4,265 Times in 1,992 Posts
Default

I made it so he can now receive emails after a posting, hopefully he then comes back.

Ed
__________________
Edward Tinker
************
Co-Author of Police Lugers - Co-Author of Simson Lugers
Author of Veteran Bring Backs Vol I, Vol II, Vol III and Vol IV

Edward Tinker is offline   Reply With Quote
Unread 09-07-2016, 12:46 AM   #7
Dwight Gruber
User

Join Date: Jun 2002
Location: Portland, Oregon
Posts: 3,863
Thanks: 0
Thanked 1,198 Times in 399 Posts
Default

Quote:
Originally Posted by guns3545 View Post
...First, the easy part: In the 20s, DWM did manufacture two variations of Lugers for resale by Krieghoff...
John,

I am only aware of the "Krieghoff SUHL" back-frame stamped variation. Could you describe the other?

--Dwight
Dwight Gruber is offline   Reply With Quote
Unread 09-13-2016, 12:49 PM   #8
Beginner
User

Join Date: Aug 2016
Posts: 7
Thanks: 0
Thanked 0 Times in 0 Posts
Smile Thanks for the input

First an apology - Remember I am a beginner
My first error was to reference the proofs as C/U - I meant C/N

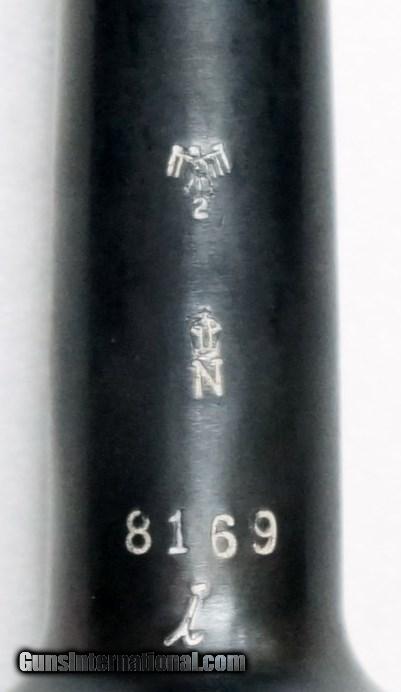

The C/N appears in vertical form on receiver. The C/N also appears on the barrel followed by an Eagle 2, followed by the S/N as 8169 i
The front edge of frame also has 8169i; side plate (bottom edge), trigger, thumb safety lever, locking bolt, and sear bar, all numbered "69"
Toggle has H/Anchor/K and Krieghoff over Suhl, on top, with Eagle2, "69" and 5 pointed star on underside;
Rear of frame at lanyard loop has "SUHL" (not Krieghoff Suhl)
Inspection of frame under right grip has a "7" meaning someone at Krieghoff inspected the frame
Breechblock has vertical C/N
Grips = brown, plain edge, Bakelite (passed hot pin test)
No date or other marking on top of receiver

My source for descriptions was Randall Gibson's book

Here's my question - my research disclosed there were approximately 1,500 DWM's produced with Krieghoff toggles, 1,000 with side plate inscriptions, and 500 without (page 314 Kenyon), this occurred before Krieghoff began making their own P.08's FACT: Krieghoff's "Eagle2" proof did not appear before 1935 - could this be a DWM reworked by Krieghoff after 1935 ?? Would that explain the numbering done in a fashion not typical of Krieghoff's numbering schemes?

Now I can say "What is this thing?
Beginner is offline   Reply With Quote
Unread 09-13-2016, 12:53 PM   #9
Beginner
User

Join Date: Aug 2016
Posts: 7
Thanks: 0
Thanked 0 Times in 0 Posts
Default

How do I upload pictures ??
Beginner is offline   Reply With Quote
Unread 09-13-2016, 01:39 PM   #10
John Sabato
Lifer
Lifetime Forum
Patron

John Sabato's Avatar

Join Date: Jun 2002
Location: The Capital of the Free World
Posts: 10,150
Thanks: 3,003
Thanked 2,302 Times in 1,095 Posts
Default

Quote:
Originally Posted by Beginner View Post
How do I upload pictures ??
There is a sticky post in the New Collectors Forum with instructions, (courtesy of Sheepherder)

http://forum.lugerforum.com/showthread.php?t=23172
__________________
regards, -John S

"...We hold these truths to be self-evident that ALL men are created EQUAL and are endowed by their Creator with certain UNALIENABLE rights, and among these are life, LIBERTY, and the pursuit of happiness..."
John Sabato is offline   Reply With Quote
Unread 09-13-2016, 06:43 PM   #11
Beginner
User

Join Date: Aug 2016
Posts: 7
Thanks: 0
Thanked 0 Times in 0 Posts
Default

Gentlemen
The Eagle 2 is of the earliest type of Krieghoff Acceptance mark
The "2" is clearly seen below the center of the Eagle which is also clearly see-able
In Gibson's book (Page 99) the mark is referred to as "LWaA 1st Stage Early" and LWaA2 2nd

Maybe that helps - will try to post photos tomorrow
Beginner is offline   Reply With Quote
Unread 09-13-2016, 08:34 PM   #12
1933 FORD NUT
User

1933 FORD NUT's Avatar

Join Date: Apr 2015
Location: WI
Posts: 85
Thanks: 3
Thanked 69 Times in 36 Posts
Default

Beginner , Make sure you post pics of the rear frame ears straight on from the side . Also the area below the trigger guard on the front grip strap . Krieghoff produced frames are pretty distinctive in these areas . Not going to even guess at what you have there but I am VERY interested in seeing what it is . Dave
1933 FORD NUT is offline   Reply With Quote
Unread 09-14-2016, 12:20 PM   #13
Beginner
User

Join Date: Aug 2016
Posts: 7
Thanks: 0
Thanked 0 Times in 0 Posts
Default What is it?

Gentlemen,
Attached are some photos of the mystery gun - some may be repeats - apparently some phots were too "large" so I had to do one at a time
The "description" uploaded is a summary of my observations of the gun, and where possible, the gun was compared to photos in Gibson's book with page references, etc

Thank you for your input and you interest

Cordially Mike
Attached Thumbnails
Click image for larger version

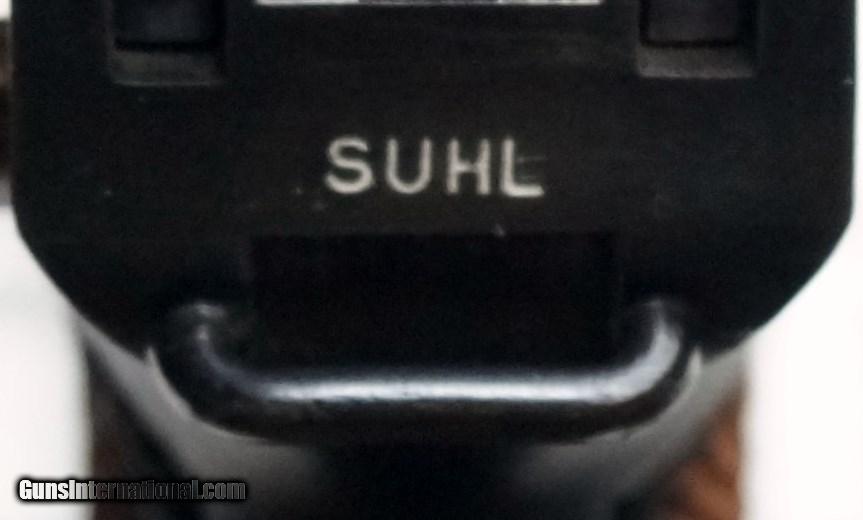

Name:	Rear Frame Marking.jpg
Views:	12
Size:	76.1 KB
ID:	61442

Click image for larger version

Name:	Grip Strap - Trigger Guard - Close-up.jpg
Views:	12
Size:	119.9 KB
ID:	61443

Click image for larger version

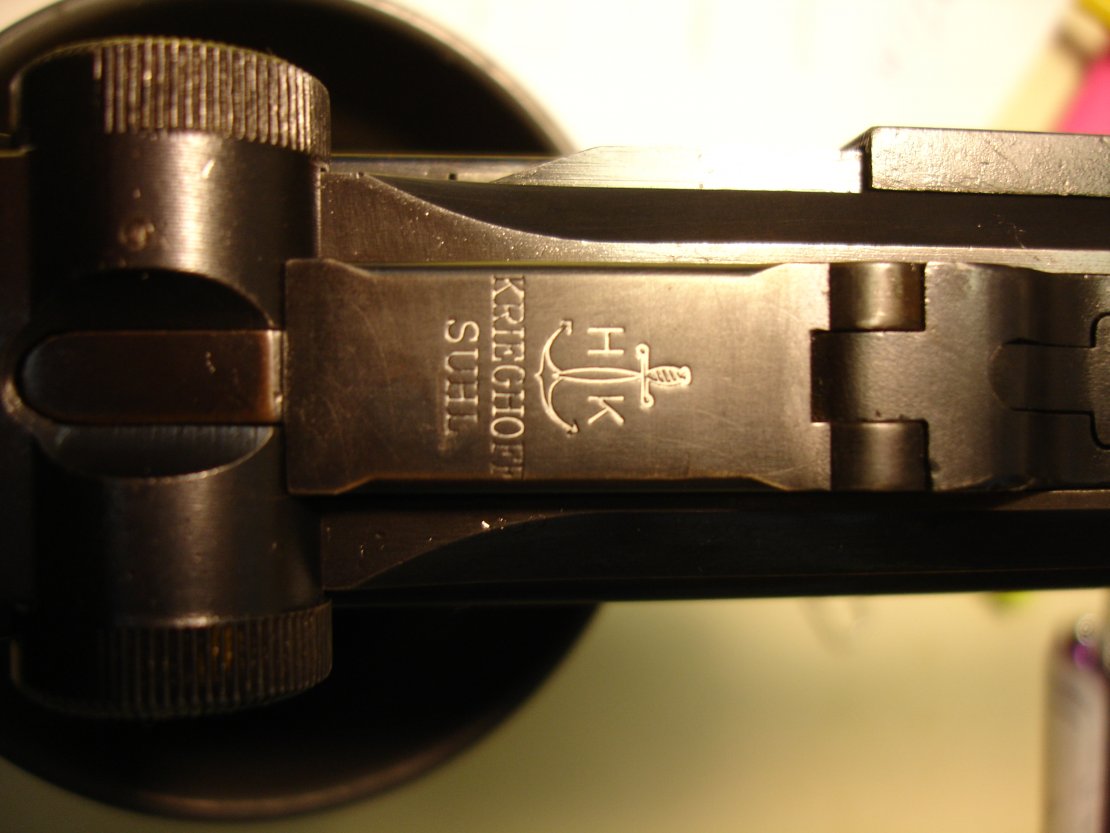

Name:	Krieghoff Toggle - Top.jpg
Views:	13
Size:	92.2 KB
ID:	61444

Click image for larger version

Name:	Frame Rt side - close up.jpg
Views:	15
Size:	61.5 KB
ID:	61445

Click image for larger version

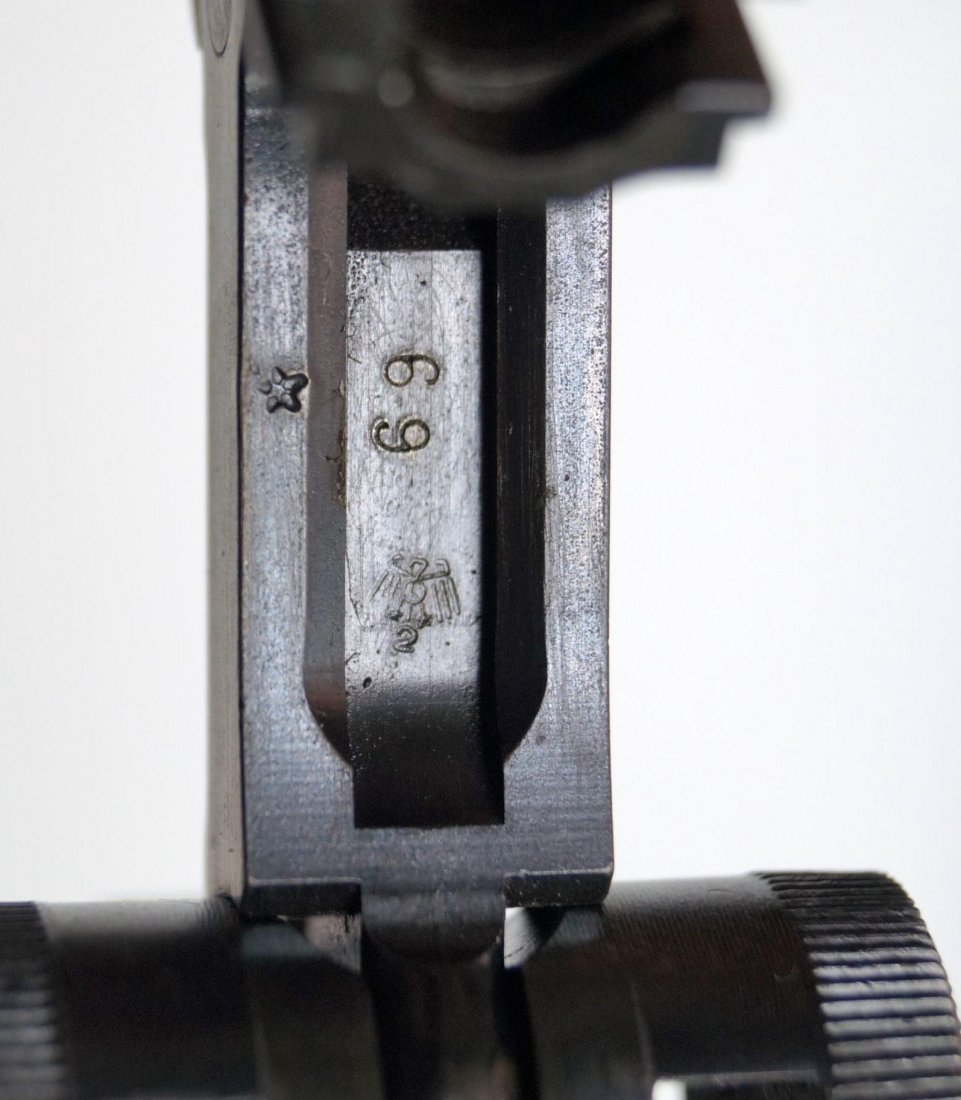

Name:	Toggle - Underside.jpg
Views:	12
Size:	118.5 KB
ID:	61447

Click image for larger version

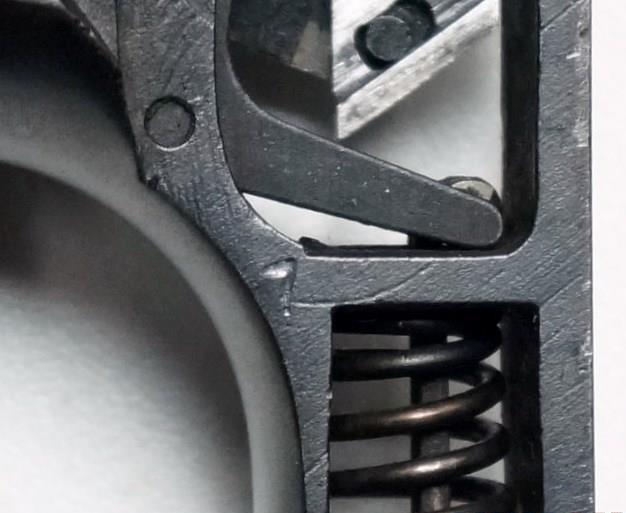

Name:	Frame Rt under grip inspection number.jpg
Views:	11
Size:	35.9 KB
ID:	61448

Click image for larger version

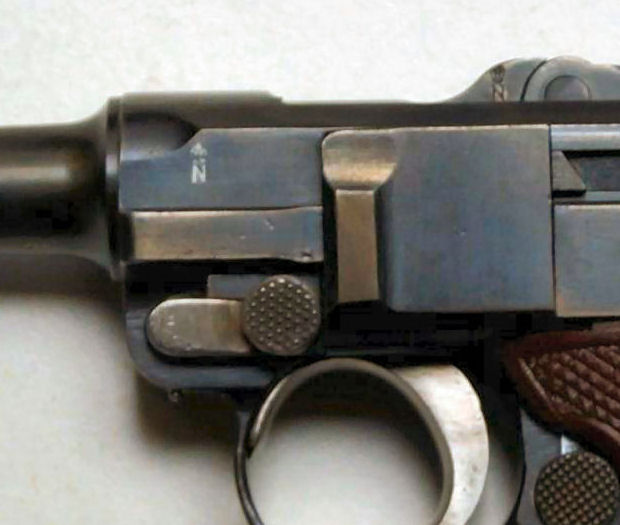

Name:	Frame - Lt Side - Proof Close-up.jpg
Views:	11
Size:	85.1 KB
ID:	61449

Click image for larger version

Name:	Barrel Detail.jpg
Views:	16
Size:	68.7 KB
ID:	61450

Attached Files
File Type: pdf Kreighoff Luger - DESCRIPTION.pdf (223.9 KB, 17 views)
Beginner is offline   Reply With Quote
Unread 09-14-2016, 12:28 PM   #14
Beginner
User

Join Date: Aug 2016
Posts: 7
Thanks: 0
Thanked 0 Times in 0 Posts
Default What is it?

Attached are my observations of the mystery gun

Where possible the gun was compared to photos in Gibson's book Page references are given

Thanks for your interest
Attached Thumbnails
Click image for larger version

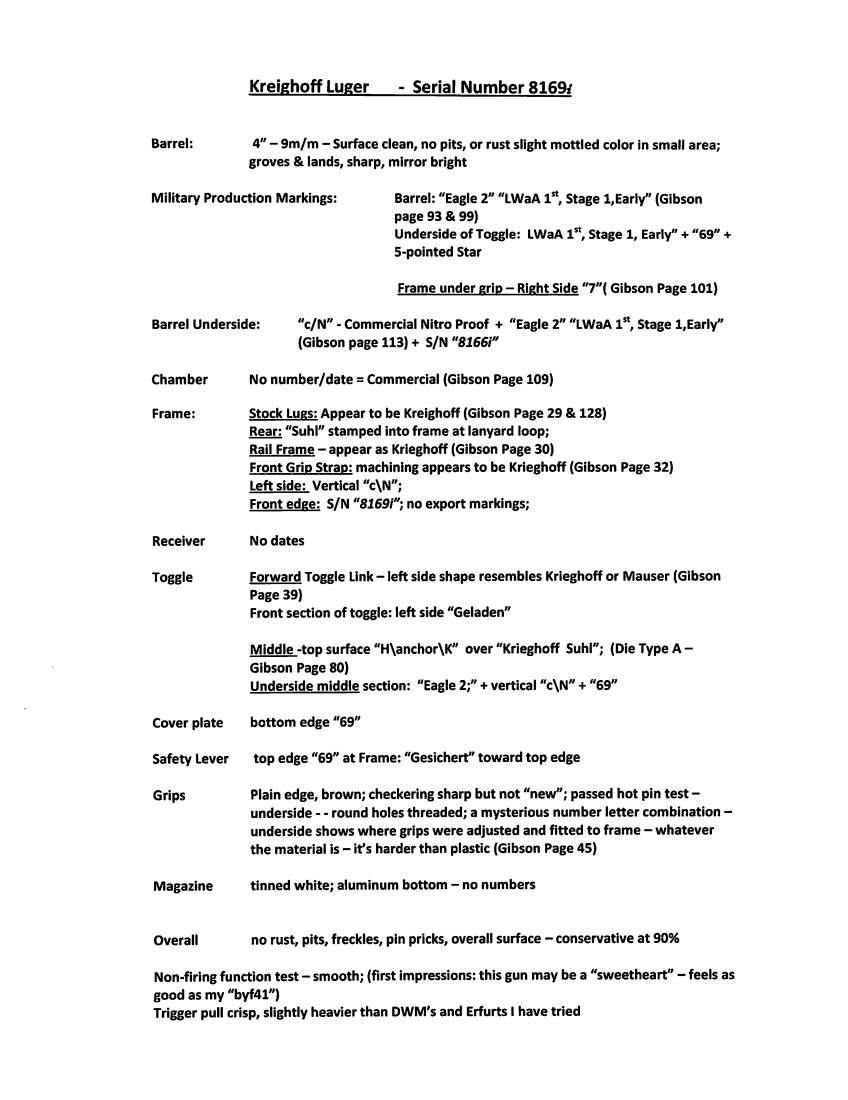

Name:	Krieghoff P.08 Description.jpg
Views:	19
Size:	132.0 KB
ID:	61451

Beginner is offline   Reply With Quote
Unread 09-14-2016, 02:27 PM   #15
1933 FORD NUT
User

1933 FORD NUT's Avatar

Join Date: Apr 2015
Location: WI
Posts: 85
Thanks: 3
Thanked 69 Times in 36 Posts
Default

Frame is definitely not HK and the gun looks to be a DWM . See following pics of stuff out of MN and you may see some scary similarities . The barrel proof is an old fake many call " stork legs " or " pterodactyl " . Sorry and I hope you didn't pay a huge price . Dave
Attached Thumbnails
Click image for larger version

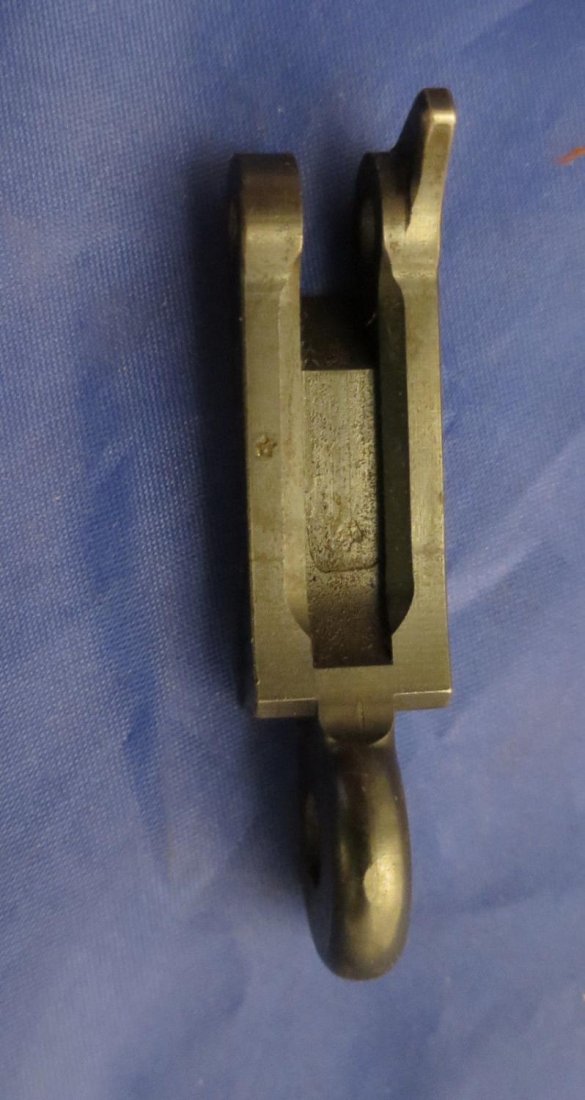

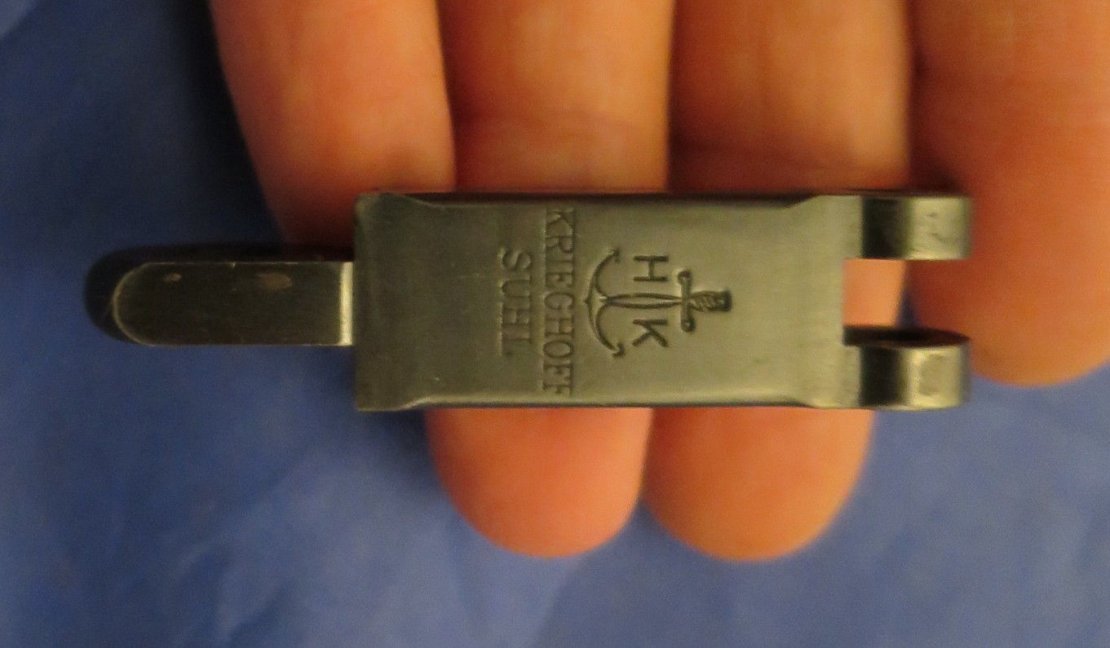

Name:	revshop HK toggle 2.jpg
Views:	19
Size:	89.5 KB
ID:	61461

Click image for larger version

Name:	revshop HK toggle 1.jpg
Views:	13
Size:	77.7 KB
ID:	61462

Attached Images

1933 FORD NUT is offline   Reply With Quote
Unread 09-14-2016, 04:11 PM   #16
Ron Wood
Moderator
2010 LugerForum
Patron

Ron Wood's Avatar

Join Date: Jun 2002
Location: Santa Teresa New Mexico just outside of the West Texas town of El Paso
Posts: 6,889
Thanks: 929
Thanked 4,666 Times in 1,587 Posts
Default

Don't know much about Krieghoffs, but I can say that the frame is DWM.
Ron
__________________
If it's made after 1918...it's a reproduction
