Unread 07-10-2021, 12:35 PM   #1
Alan1
User

Join Date: Sep 2020
Location: Bela-Bela, South Africa
Posts: 11
Thanks: 0
Thanked 38 Times in 7 Posts
Default Erfurt Artillery Luger

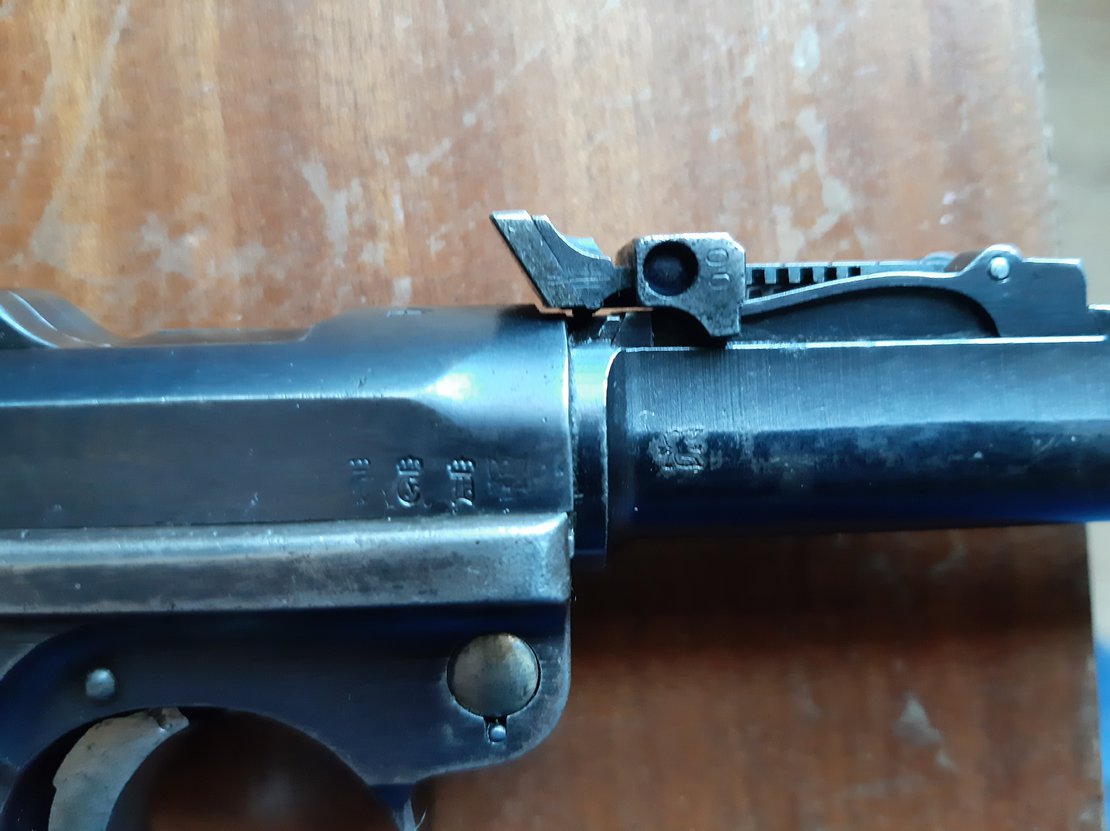

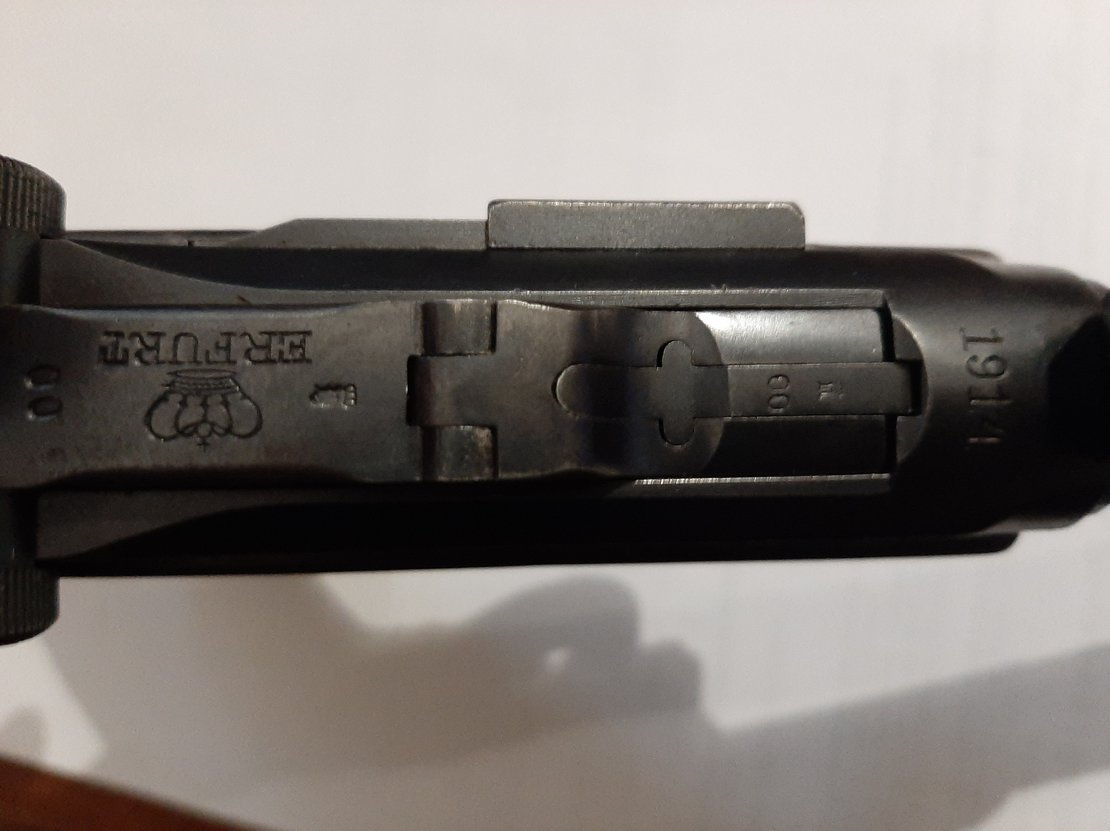

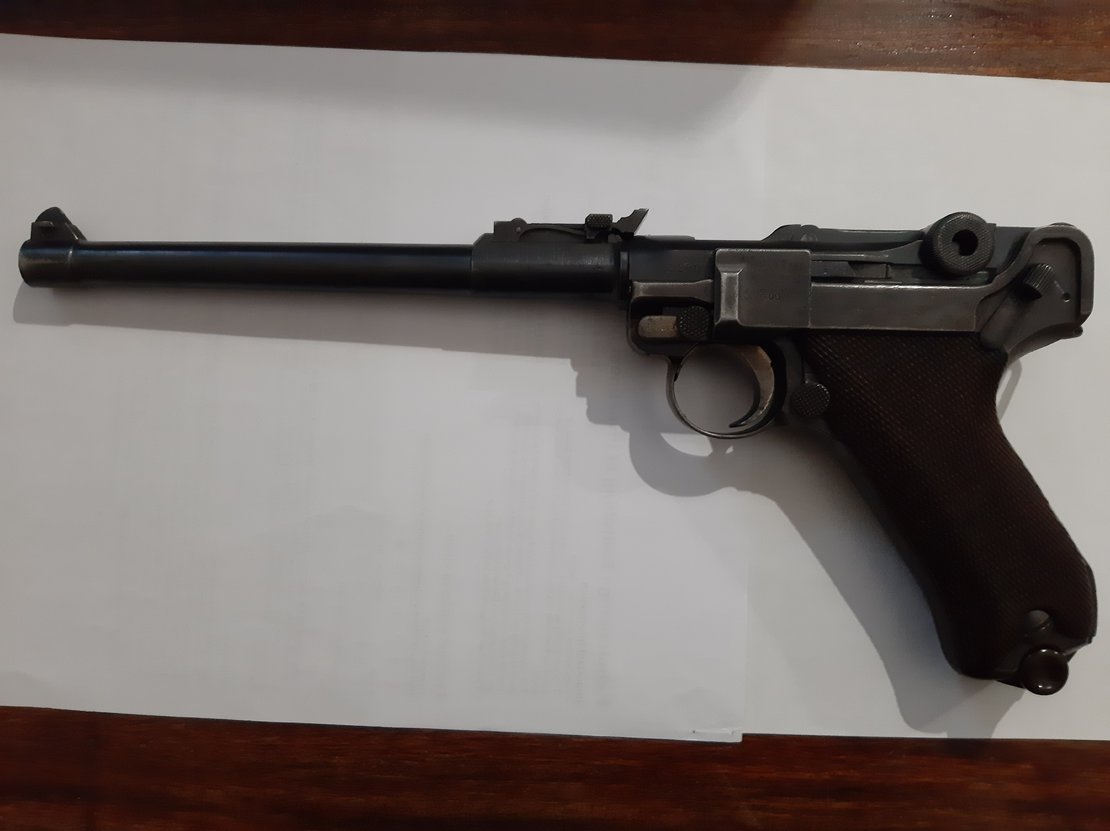

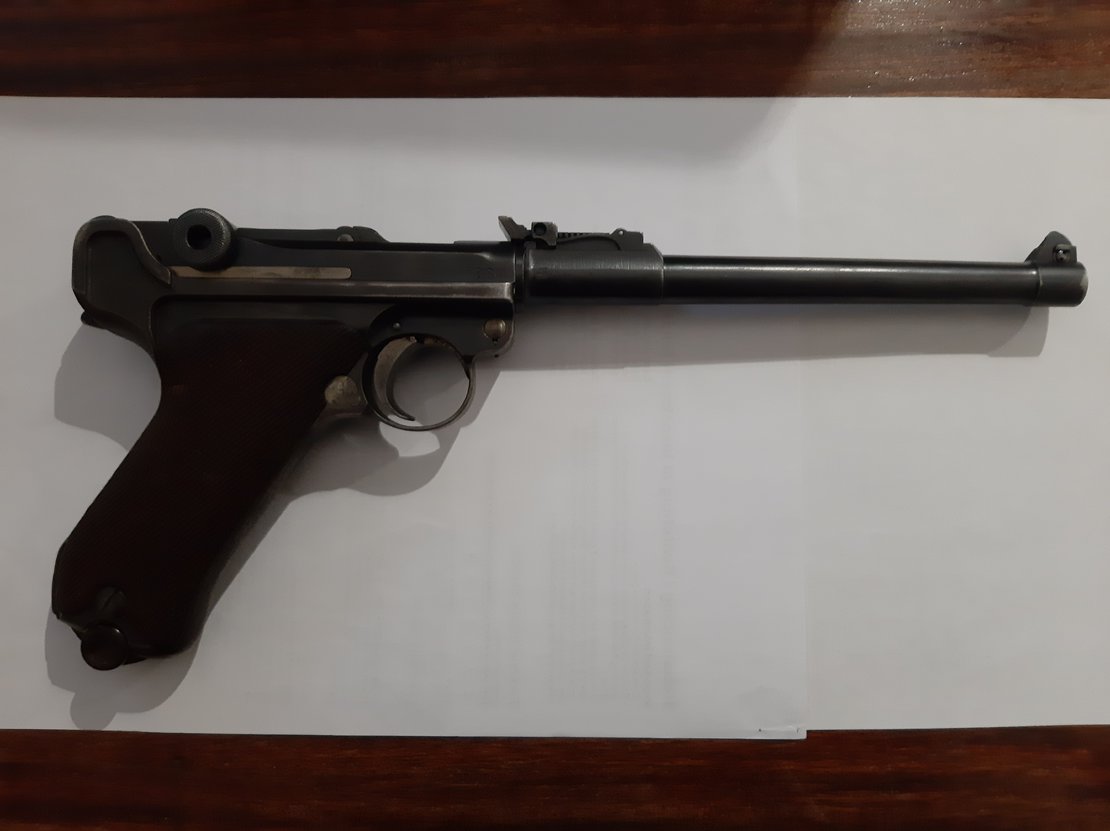

Hi. I have just received my second Artillery Luger and would appreciate your comments.

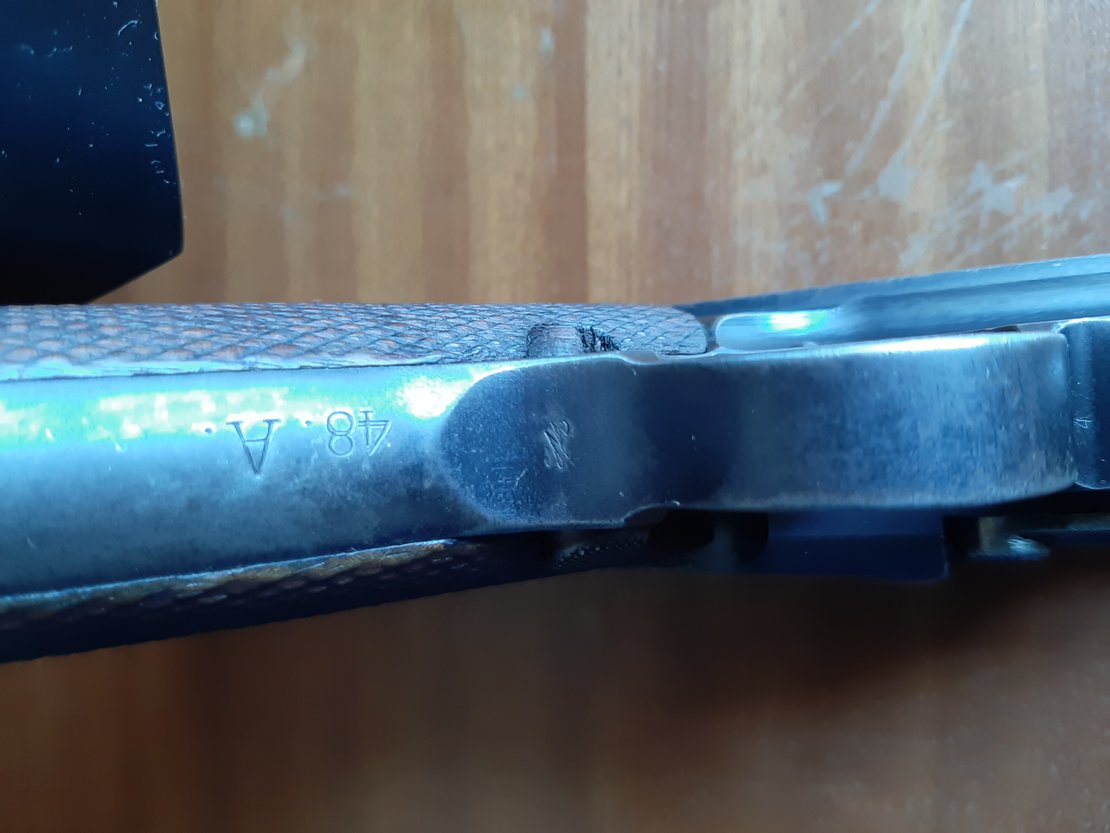

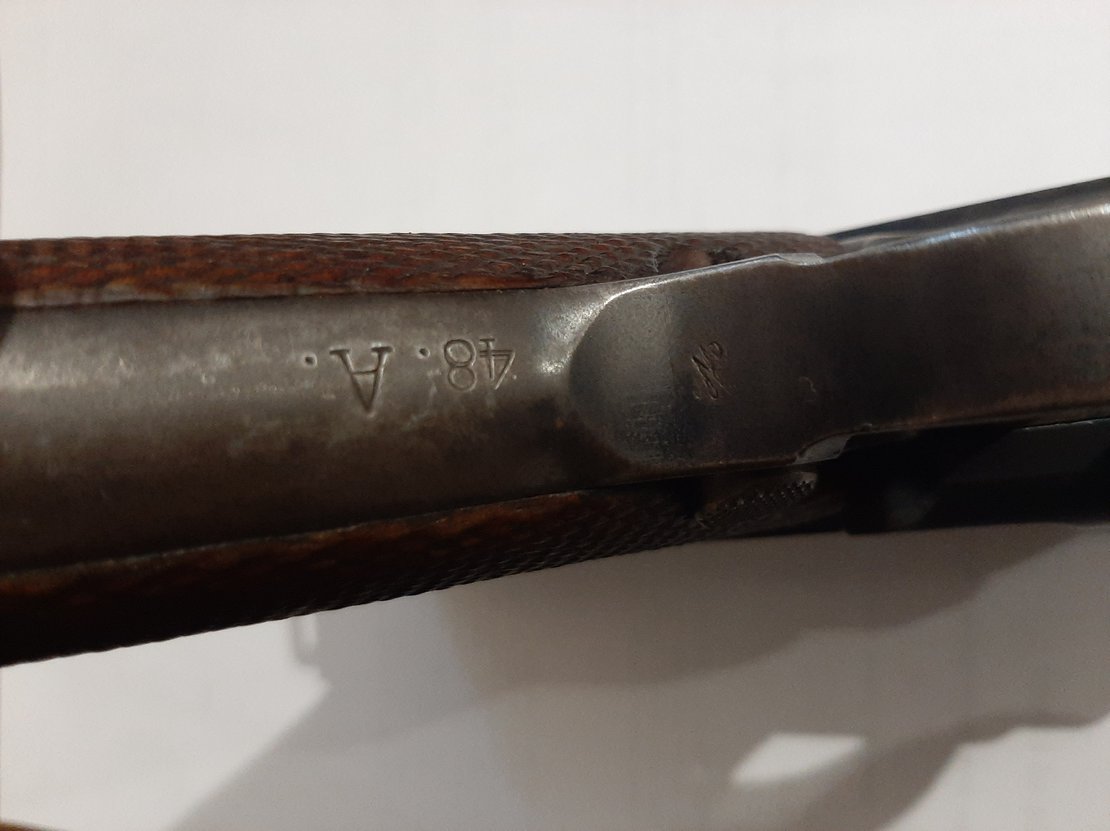

It has an interesting number on the string just below the trigger guard - 48.A.
This one with a holster and shoulder stock. The holster puzzles me a little. As you can see it is an open holster, and has a long strap which I am not sure what it is for.
Attached Thumbnails
Click image for larger version

Name:	20210710_172512.jpg
Views:	168
Size:	53.7 KB
ID:	83610

Click image for larger version

Name:	20210710_172540.jpg
Views:	165
Size:	59.4 KB
ID:	83611

Click image for larger version

Name:	20210710_173056.jpg
Views:	169
Size:	45.2 KB
ID:	83612

Click image for larger version

Name:	20210710_172757.jpg
Views:	160
Size:	73.0 KB
ID:	83613

Click image for larger version

Name:	20210710_172703.jpg
Views:	169
Size:	76.7 KB
ID:	83614

Click image for larger version

Name:	20210710_173226.jpg
Views:	164
Size:	78.3 KB
ID:	83615

Alan1 is offline   Reply With Quote
The following 6 members says Thank You to Alan1 for your post:
Unread 07-10-2021, 01:24 PM   #2
spangy
Lifer
Lifetime Forum
Patron

spangy's Avatar

Join Date: Sep 2020
Location: Winnipeg, Canada
Posts: 607
Thanks: 2,984
Thanked 1,047 Times in 422 Posts
Default

Nice gun Alan1 ... I love all Lugers but Artillery's are my soft spot.
I have a few questions regarding the gun however and wonder if you could post some HI-Res images of the stamps and markings.
Being an Erfurt they should be everywhere.

The holster is not original to this gun but rather modified to fit this rig.
It appears to be a modified 1100 Series Snap Off Belt Holster or similar.
The long strap is simply for holding the gun in the holster.
https://www.huntercompany.com/produc...rs-1100-series.

The '48.A.' is possibly a unit marking like the 48th Artillery unit etc but normally unit marks contain much more information.
I have never seen a similar marking but I'm sure someone here will be able to nail it down.
__________________
Whoever said that "money can't buy you happiness" never bought a Luger.
WTB - Take Down Lever & Trigger Plate (#90) for an Imperial Artillery.
spangy is offline   Reply With Quote
The following member says Thank You to spangy for your post:
Unread 07-10-2021, 03:36 PM   #3
Mac Cat
Lifer
Lifetime Forum
Patron

Mac Cat's Avatar

Join Date: Apr 2015
Location: Austin, Texas
Posts: 674
Thanks: 2,019
Thanked 545 Times in 294 Posts
Default

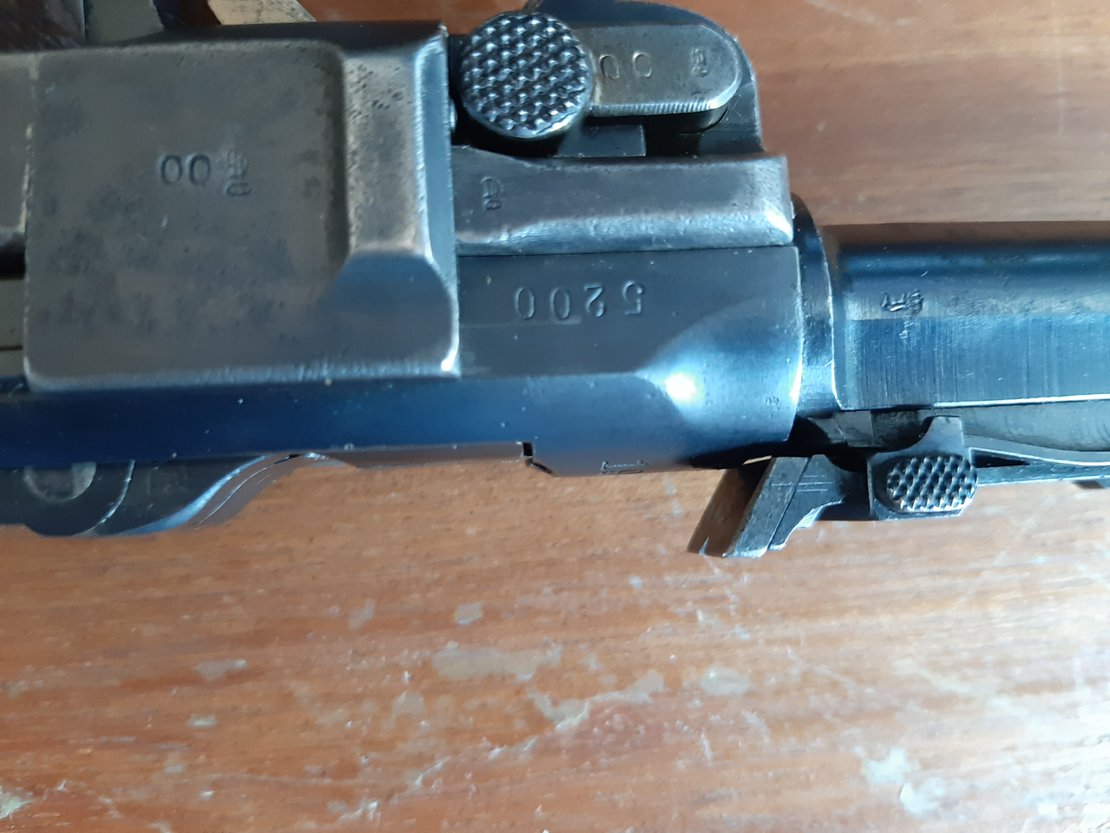

The serial number is on the front of the frame. It looks like 5800 with no suffix. It also looks like it's been buffed, so it may be re-blued.

Does the stock fit the lug on the pistol ?
Mac Cat is offline   Reply With Quote
Unread 07-12-2021, 07:05 AM   #4
Alan1
User

Join Date: Sep 2020
Location: Bela-Bela, South Africa
Posts: 11
Thanks: 0
Thanked 38 Times in 7 Posts
Default

Thank you for your comments, greatly appreciated.
There are plenty of marking which I have tried to get good shots of.

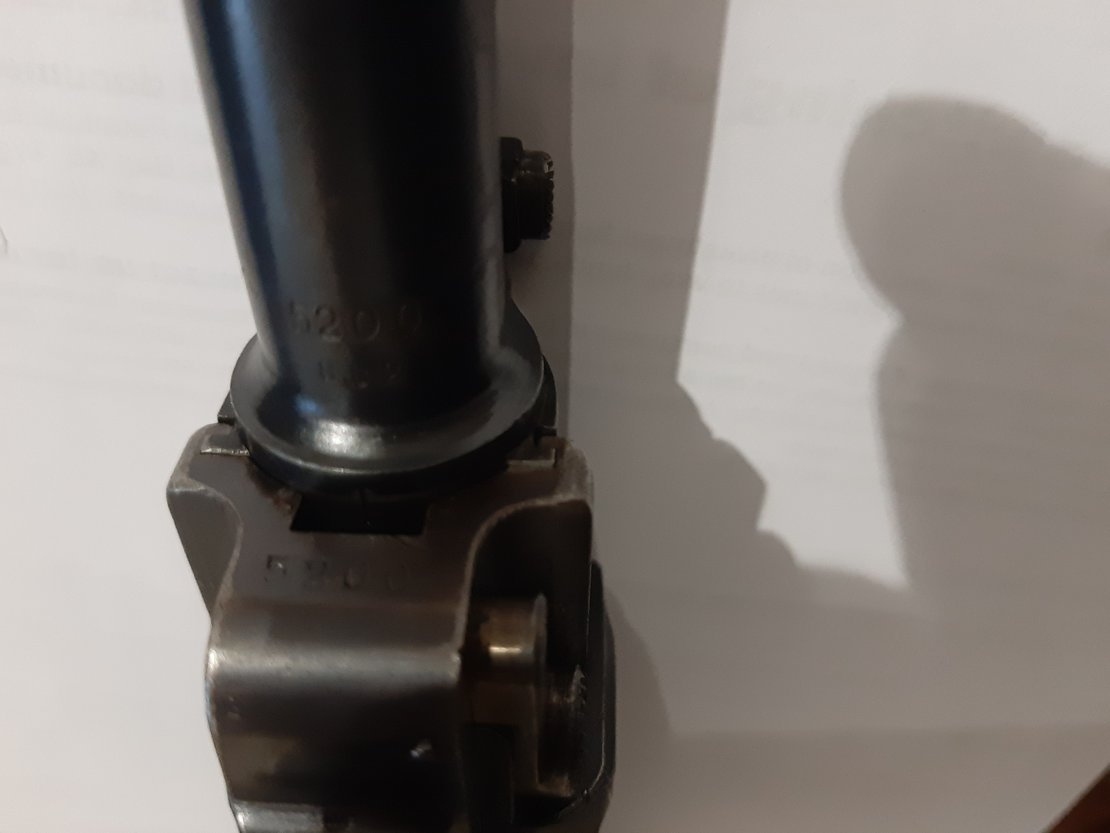

Another interesting number "8.82" is just behind the serial number on the underside of the barrel?

There is no suffix with the serial number on the frame.
The stock fits perfectly though there is no number on the stock. Are they normally numbered?
From what I have learnt on this forum it does not look to me as if it has been re-blued. There is, however, quite a bit of holster wear at certain points and I now understand why the holster is a tight fit. It does look like this holster has been with the luger for a long time.
Attached Thumbnails
Click image for larger version

Name:	20210712_112652.jpg
Views:	168
Size:	84.7 KB
ID:	83634

Click image for larger version

Name:	20210712_111445.jpg
Views:	148
Size:	117.5 KB
ID:	83635

Click image for larger version

Name:	20210712_111309.jpg
Views:	146
Size:	85.5 KB
ID:	83636

Click image for larger version

Name:	20210712_111059.jpg
Views:	132
Size:	100.9 KB
ID:	83637

Alan1 is offline   Reply With Quote
The following member says Thank You to Alan1 for your post:
Unread 07-12-2021, 09:30 AM   #5
Karl
Lifer - Twice Over
Lifetime Forum
Patron

Karl's Avatar

Join Date: Jun 2002
Location: Savannah
Posts: 515
Thanks: 0
Thanked 251 Times in 112 Posts
Default

Your artie has the unusual script W below the trigger guard. See Still, Central Powers Pistols, Table 9.

KFS
Karl is offline   Reply With Quote
Unread 07-12-2021, 09:33 AM   #6
spangy
Lifer
Lifetime Forum
Patron

spangy's Avatar

Join Date: Sep 2020
Location: Winnipeg, Canada
Posts: 607
Thanks: 2,984
Thanked 1,047 Times in 422 Posts
Default

Thanks for the additional photos Alan.

8.82 is the gauge marking or the distance between the barrel lands.
Lands are the raised portion between groves. Groves are the lowered portion in between lands.
The distance between the groves is 9mm, the distance between the lands is 8.82mm.


A guns stock is normally numbered to the gun but like magazines the chaos of war usually makes this marriage lasting unlikely.

Like Mac Cat says the gun does appear to be buffed in places and is likely at least partially re-blued .
Maybe just cold blue touch ups ... hard to say without literally seeing the gun.
The lack of a 'suffix' to your serial number means your Arty was amongst the 1st 10,000 made.
I have a 1914 Erfurt Artillery as well, 6051 w/no suffix.

Bottom line Alan is your gun is beautiful and I would be proud to own it as I'm sure you are.
__________________
Whoever said that "money can't buy you happiness" never bought a Luger.
WTB - Take Down Lever & Trigger Plate (#90) for an Imperial Artillery.
spangy is offline   Reply With Quote
The following 3 members says Thank You to spangy for your post:
Unread 07-12-2021, 09:47 AM   #7
Mac Cat
Lifer
Lifetime Forum
Patron

Mac Cat's Avatar

Join Date: Apr 2015
Location: Austin, Texas
Posts: 674
Thanks: 2,019
Thanked 545 Times in 294 Posts
Default

Thanks for the better pictures - that's one of the challenges !
Mac Cat is offline   Reply With Quote
The following 2 members says Thank You to Mac Cat for your post:
Unread 07-12-2021, 10:04 AM   #8
spangy
Lifer
Lifetime Forum
Patron

spangy's Avatar

Join Date: Sep 2020
Location: Winnipeg, Canada
Posts: 607
Thanks: 2,984
Thanked 1,047 Times in 422 Posts
Default

Hi Karl
I also took notice of the 'W' script below the trigger guard.
I have no idea what it's significance is ??
I have seen it before... sadly I do not have a copy of Still's Central Powers Pistols.
Can you tell us please what this mark is ??
Thanks
__________________
Whoever said that "money can't buy you happiness" never bought a Luger.
WTB - Take Down Lever & Trigger Plate (#90) for an Imperial Artillery.
spangy is offline   Reply With Quote
Unread 07-12-2021, 10:15 AM   #9
Karl
Lifer - Twice Over
Lifetime Forum
Patron

Karl's Avatar

Join Date: Jun 2002
Location: Savannah
Posts: 515
Thanks: 0
Thanked 251 Times in 112 Posts
Default

Spangy,

The meaning of the mark is unknown. Still suggests that it may indicate subcontractor work. It is interesting that the two of the three such marks recorded on Erfurt lugers are on LP08s.

KFS
Karl is offline   Reply With Quote
The following 3 members says Thank You to Karl for your post:
Unread 07-12-2021, 12:06 PM   #10
Ron Wood
Moderator
2010 LugerForum
Patron

Ron Wood's Avatar

Join Date: Jun 2002
Location: Santa Teresa New Mexico just outside of the West Texas town of El Paso
Posts: 6,988
Thanks: 1,067
Thanked 5,099 Times in 1,676 Posts
Default

As has been said, it is difficult to evaluate without gun in hand, but I would be very reluctant at this point to say it has been refinished or touched up in any way. Looks good to me.
Ron
__________________
If it's made after 1918...it's a reproduction
Ron Wood is offline   Reply With Quote
The following 6 members says Thank You to Ron Wood for your post:
Unread 07-12-2021, 02:19 PM   #11
Piet
User

Piet's Avatar

Join Date: Feb 2009
Location: South Africa
Posts: 143
Thanks: 155
Thanked 35 Times in 22 Posts
Default

Could the marking of 48.A. on the front strap be the beginning of a unit marking, but not completed?
Piet is offline   Reply With Quote
Unread 07-12-2021, 03:06 PM   #12
rhuff
Patron
LugerForum
Patron

rhuff's Avatar

Join Date: Mar 2011
Location: Az.
Posts: 2,272
Thanks: 2,692
Thanked 959 Times in 705 Posts
Default

I am pretty sure that I am seeing halos on the numbers of the barrel.
__________________
Need DWM breechblock #21
rhuff is offline   Reply With Quote
Unread 07-12-2021, 04:39 PM   #13
Edward Tinker
Super Moderator
Eternal Lifer
LugerForum
Patron

Edward Tinker's Avatar

Join Date: Jun 2002
Location: North of Spokane, WA
Posts: 15,914
Thanks: 1,989
Thanked 4,504 Times in 2,079 Posts
Default

The gun is in South Africa.... So marking could be totally different than folks are used to.

Also, many 'interim" markings are like this, a letter or two and a couple of numbers. As an example, in a smaller unit, they all know that the GQ.36 (or whatever) is for that unit and no other.
The long unit markings are to get the gun back to a unit in a war time setting, i.e. lots of units involved in the action.
Edward Tinker is offline   Reply With Quote
The following 5 members says Thank You to Edward Tinker for your post:
Unread 07-14-2021, 01:59 PM   #14
Alan1
User

Join Date: Sep 2020
Location: Bela-Bela, South Africa
Posts: 11
Thanks: 0
Thanked 38 Times in 7 Posts
Default

Wow. Thank you all
Alan1 is offline   Reply With Quote
Unread 12-11-2021, 11:51 PM   #15
Doug G.
User

Doug G.'s Avatar

Join Date: Jun 2002
Location: Illinois
Posts: 713
Thanks: 1
Thanked 53 Times in 17 Posts
Default

Just pulled my 1914 Erfurt out of the safe. No W mark under the trigger guard. Although mine has the RC marking.
__________________
Suppose you were an idiot.....and suppose you were a member of Congress.....But I repeat myself" ~~ Mark Twain
Doug G. is offline   Reply With Quote
Unread 12-12-2021, 10:31 AM   #16
roadkill1
Patron
LugerForum
Patron

Join Date: Jan 2012
Location: Virginia
Posts: 127
Thanks: 166
Thanked 129 Times in 63 Posts
Default

The "48.A." unit marking would be correct if this was assigned to the staff of that regiment. However, you would expect to see a "waffen number" at the end of this marking. Having said that, seems to me we have had a few unit markings without this "final number".

This is a very interesting pistol.......congrats.
