Default Commercial DWM with unusual extractor

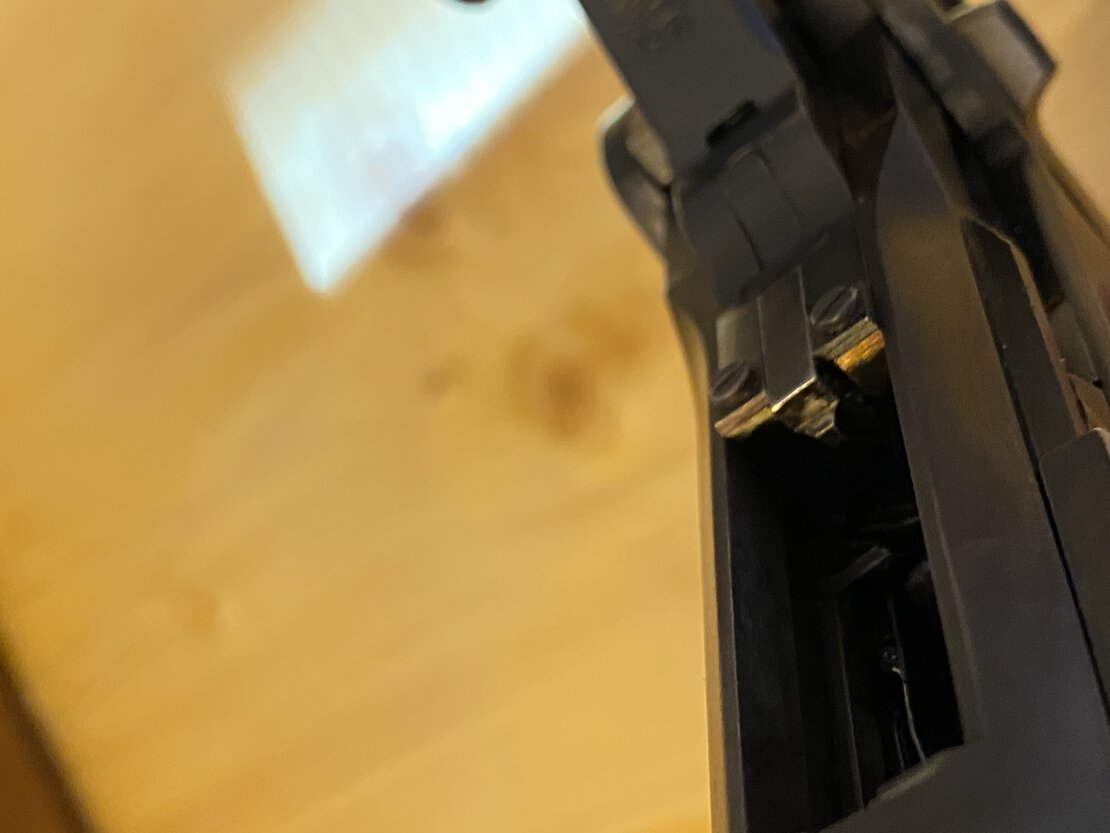

Brain Trust, it's been a long time since I've come across a decent Luger. This one is a 30 Luger, still working on its exact ID. Take a look at the toggle/extractor. Is this some kind of gunsmith fix or have I stumbled across something unusual? Serial Number 5253, late 20's production?
Attached Thumbnails
Click image for larger version

Name:	IMG_2958.jpg
Views:	61
Size:	113.5 KB
ID:	85243

Click image for larger version

Name:	IMG_2959.jpg
Views:	49
Size:	66.7 KB
ID:	85244

Click image for larger version

Name:	IMG_2960.jpg
Views:	46
Size:	105.9 KB
ID:	85245

Click image for larger version

Name:	IMG_2961.jpg
Views:	43
Size:	129.9 KB
ID:	85246

Click image for larger version

Name:	IMG_2962.jpg
Views:	59
Size:	168.0 KB
ID:	85247

Click image for larger version

Name:	IMG_2963.jpg
Views:	67
Size:	124.2 KB
ID:	85248

Silver347 is offline   Reply With Quote
The following member says Thank You to Silver347 for your post:
Unread 05-17-2022, 10:58 AM   #2
HerrKaiser
User

HerrKaiser's Avatar

Join Date: Feb 2018
Location: South Carolina
Posts: 777
Thanks: 732
Thanked 755 Times in 363 Posts
Default

Does it otherwise function normally? It looks odd, but I don’t think it looks Ugly. Is the breech block…layered? with the screws holding the top bit in place? Please take the toggle train out and take more pictures of possible.
__________________
-QM

Looking for Mauser S/42 toggle train #22
HerrKaiser is offline   Reply With Quote
Unread 05-17-2022, 11:17 AM   #3
Vlim
Moderator
Lifetime
LugerForum Patron

Vlim's Avatar

Join Date: Oct 2002
Location: Europe
Posts: 4,985
Thanks: 1,009
Thanked 3,690 Times in 1,141 Posts
Default

Looks like the extractor was blown out of the breech block, taking the edges with it. Someone then 'fixed' the damage by screwing in fillers.

This is neither a good, nor a safe repair. That breech block should be scrapped and replaced.
Vlim is offline   Reply With Quote
The following 13 members says Thank You to Vlim for your post:
Unread 05-17-2022, 11:26 AM   #4
Doubs
User

Doubs's Avatar

Join Date: Jun 2002
Location: Byron, Georgia
Posts: 1,630
Thanks: 730
Thanked 1,477 Times in 493 Posts
Default

Quote:
Originally Posted by Vlim View Post
Looks like the extractor was blown out of the breech block, taking the edges with it. Someone then 'fixed' the damage by screwing in fillers.

This is neither a good, nor a safe repair. That breech block should be scrapped and replaced.
I agree with Vlim 100%... especially the last two sentences. I have two Alphabet Commercial Lugers in the "m" block, one earlier and one later than yours. Both have normal breech blocks.
Doubs is offline   Reply With Quote
The following 2 members says Thank You to Doubs for your post:
Unread 05-17-2022, 04:22 PM   #5
gunnertwo
Patron
LugerForum
Patron

gunnertwo's Avatar

Join Date: Jan 2010
Location: Nampa, Idaho
Posts: 573
Thanks: 769
Thanked 850 Times in 325 Posts
Default

Bubba said, "There, I fixed it!"

G2
gunnertwo is offline   Reply With Quote
The following 6 members says Thank You to gunnertwo for your post:
Unread 05-17-2022, 06:08 PM   #6
sheepherder
Lifer
Lifetime Forum
Patron

sheepherder's Avatar

Join Date: Feb 2009
Location: ...on the 'ol Erie Canal...
Posts: 8,178
Thanks: 1,387
Thanked 4,426 Times in 2,324 Posts
Default

Quote:
Originally Posted by gunnertwo View Post
Bubba said, "There, I fixed it!"

G2
"Here, hold my beer..."
__________________
I like my coffee the
way I like my women...
...Cold and bitter...
sheepherder is offline   Reply With Quote
The following 6 members says Thank You to sheepherder for your post:
Unread 05-17-2022, 08:05 PM   #7
sdmark777
User

sdmark777's Avatar

Join Date: Apr 2018
Posts: 252
Thanks: 567
Thanked 587 Times in 150 Posts
Default

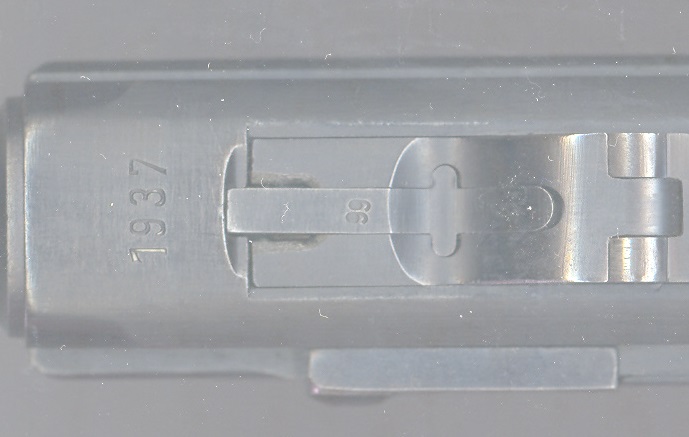

Yup, I agree. What they said. An attempt to fix this.....When the ears of the extractor are forced up due to a hot load perhaps and breaks away the metal from the top of the breech block.
Attached Thumbnails
Click image for larger version

Name:	4.jpg
Views:	49
Size:	57.9 KB
ID:	85249

sdmark777 is offline   Reply With Quote
The following 6 members says Thank You to sdmark777 for your post:
Unread 05-18-2022, 11:15 AM   #8
lugerholsterrepair
Moderator
Lifetime Forum
Patron

lugerholsterrepair's Avatar

Join Date: Jun 2002
Location: Arizona/Colorado
Posts: 7,735
Thanks: 4,725
Thanked 3,038 Times in 1,407 Posts
Default

Bubba ain't a authorized repair depot. That rube Goldberg contraption works loose and your eye could get screwed! DANGER Will Robinson, DANGER!
__________________
Jerry Burney
11491 S. Guadalupe Drive

Yuma AZ 85367-6182


lugerholsterrepair@earthlink.net

928 342-7583 (CO & AZ) Year Round
719 207-3331 (cell)


"For those who Fight For It, Life has a flavor the protected will never know."
lugerholsterrepair is offline   Reply With Quote
The following 6 members says Thank You to lugerholsterrepair for your post:
Unread 05-18-2022, 03:31 PM   #9
Mac Cat
Lifer
Lifetime Forum
Patron

Mac Cat's Avatar

Join Date: Apr 2015
Location: Austin, Texas
Posts: 618
Thanks: 1,887
Thanked 466 Times in 259 Posts
Default

Thanks for sharing !

That is one hilarious modification!
it's just not that hard or expensive to replace the part.

But, I do love it !
Mac Cat is offline   Reply With Quote
Unread 05-18-2022, 06:32 PM   #10
sheepherder
Lifer
Lifetime Forum
Patron

sheepherder's Avatar

Join Date: Feb 2009
Location: ...on the 'ol Erie Canal...
Posts: 8,178
Thanks: 1,387
Thanked 4,426 Times in 2,324 Posts
Default

Quote:
Originally Posted by Mac Cat View Post
Thanks for sharing !
That is one hilarious modification!
it's just not that hard or expensive to replace the part.
But, I do love it !
It does show a certain ingenuity and imagination, and a bit of skill. I've had a blown-out extractor/breechblock as well, but this mod never even occurred to me...
