Opinions on Sideplate Fitting ? - Page 2

mrerick · 10-09-2015, 06:22 AM

There are different weight main recoil springs. The cycling dynamics are different in an Artillery. Watch the rear of the receiver (between the ears) to see if it is battering the back of the receiver. Use tape to see the intensity of marks left.

DonVoigt · 10-09-2015, 09:18 AM

Lots of "myth" out there about main springs.

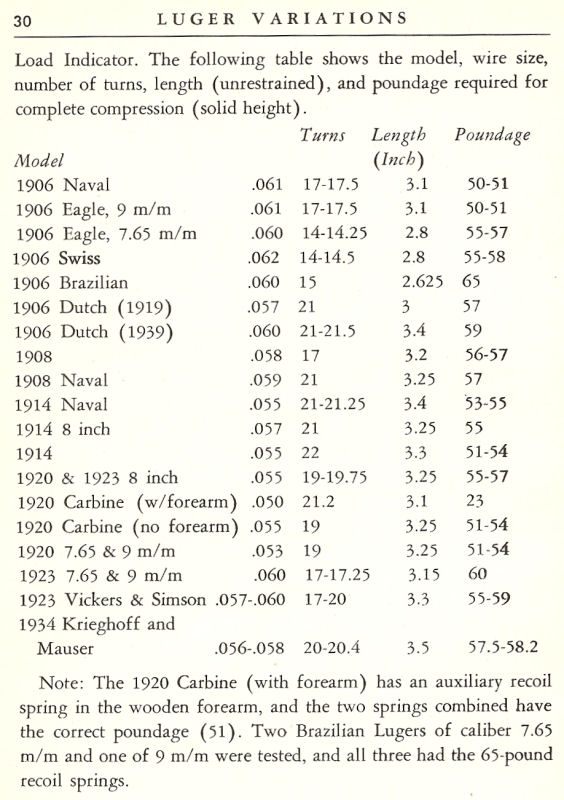

Perhaps this chart will help sort it out,

sheepherder · 10-09-2015, 10:21 AM

Quote:

Originally Posted by DonVoigt

Lots of "myth" out there about main springs.

Perhaps this chart will help sort it out,

A valuable resource; I have it posted on my shop bulletin board.

I only wish that Jones had noted the later WW II springs as well.

In any event, this chart would make a good addition to the FAQ.

DonVoigt · 10-09-2015, 03:54 PM

Quote:

Originally Posted by sheepherder

A valuable resource; I have it posted on my shop bulletin board.

I only wish that Jones had noted the later WW II springs as well.

In any event, this chart would make a good addition to the FAQ.

I would not think any significant changes would have been made after the 1934 information listed.

10-09-2015, 06:22 AM	#21
mrerick Super Moderator - Patron LugerForum Life Patron Join Date: Dec 2009 Location: Eastern North Carolina, USA Posts: 3,920 Thanks: 1,377 Thanked 3,135 Times in 1,518 Posts	There are different weight main recoil springs. The cycling dynamics are different in an Artillery. Watch the rear of the receiver (between the ears) to see if it is battering the back of the receiver. Use tape to see the intensity of marks left. __________________ Igitur si vis pacem, para bellum - - Therefore if you want peace, prepare for war.

10-09-2015, 09:18 AM	#22
DonVoigt User Join Date: Apr 2015 Location: near Charlotte NC Posts: 4,681 Thanks: 1,443 Thanked 4,355 Times in 2,041 Posts	Lots of "myth" out there about main springs. Perhaps this chart will help sort it out, Attached Thumbnails
