Quote:
Originally Posted by Evan Duke View Post
I haven't received it yet ,but my evaluation from just looking at the pictures tends to make me think that this was a re work of a Swiss Bern Luger.
I think several of us would still be interested in a detailed pictorial, especially of the frame. There have been several smiths make 'baby' Lugers, cutting & welding/brazing the cut pieces together after removing a section of the frame. Thor has posted an excellent pair of pictures on how he did his. John Martz has also done some this way, as well as Eugene Golubstov.

Besides sectioning the frame, the recoil spring and recoil spring guide must be shortened, and the magazine sectioned & re-bottomed. Grips shortened too, of course.

As an amateur fabricator and general all-around busybody, I like to compare the pros & cons of how each smith did the modifications.

Knowing how others approach a project helps me to learn how they apply their knowledge and experience. This helps me to do the same.

There's dozens of ways to skin a cat. I like to see how others do it, and learn from them to be a better catskinner.
__________________
I like my coffee the
way I like my women...
...Cold and bitter...
sheepherder is offline   Reply With Quote
Unread 08-10-2016, 01:43 PM   #22
Ron Wood
Moderator
2010 LugerForum
Patron

Ron Wood's Avatar

Join Date: Jun 2002
Location: Santa Teresa New Mexico just outside of the West Texas town of El Paso
Posts: 7,036
Thanks: 1,106
Thanked 5,247 Times in 1,720 Posts
Default

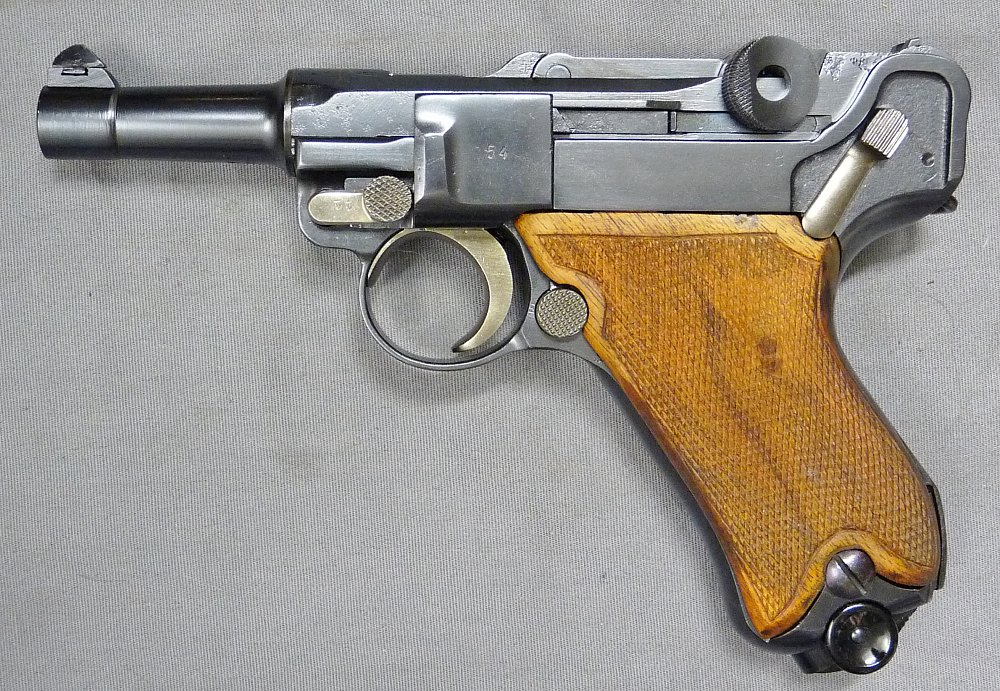

This little gun is my pride and joy, and one of my favorite Lugers. It is a full-house John Martz creation...a M1900 baby that has not only been cut down, it has been converted to a coil mainspring as well. A true gunsmith work of art.
Attached Thumbnails
Click image for larger version

Name:	Martz4.jpg
Views:	106
Size:	101.0 KB
ID:	60761

__________________
If it's made after 1918...it's a reproduction
Ron Wood is offline   Reply With Quote
The following 4 members says Thank You to Ron Wood for your post:
Unread 08-10-2016, 01:48 PM   #23
Ron Wood
Moderator
2010 LugerForum
Patron

Ron Wood's Avatar

Join Date: Jun 2002
Location: Santa Teresa New Mexico just outside of the West Texas town of El Paso
Posts: 7,036
Thanks: 1,106
Thanked 5,247 Times in 1,720 Posts
Default

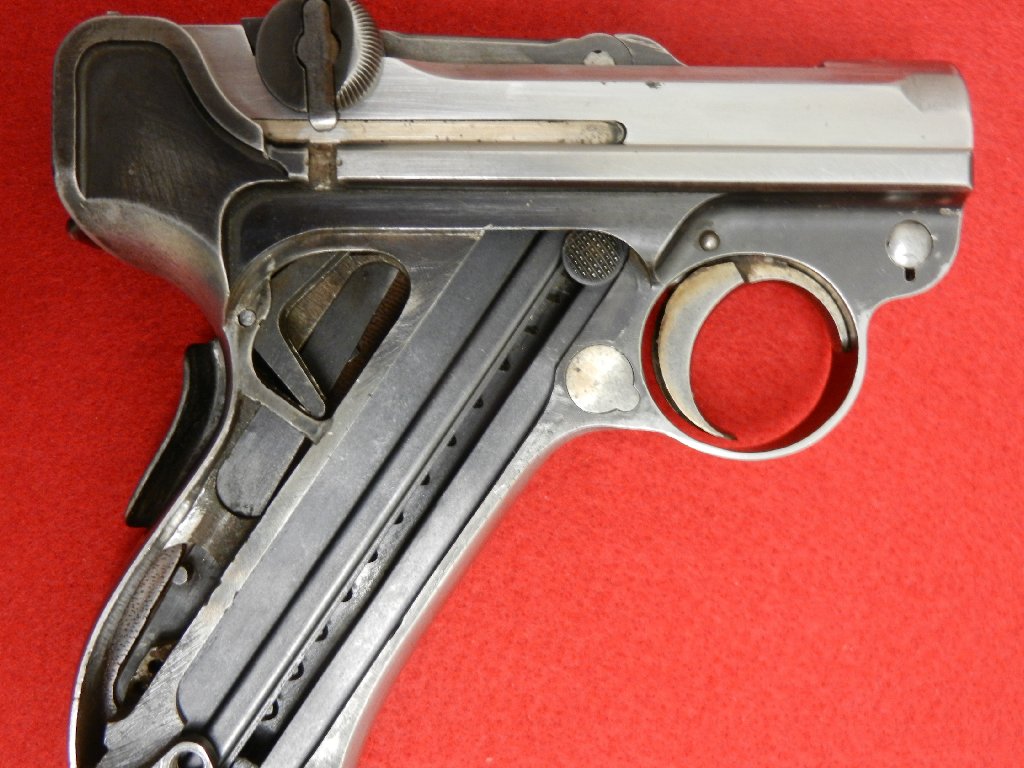

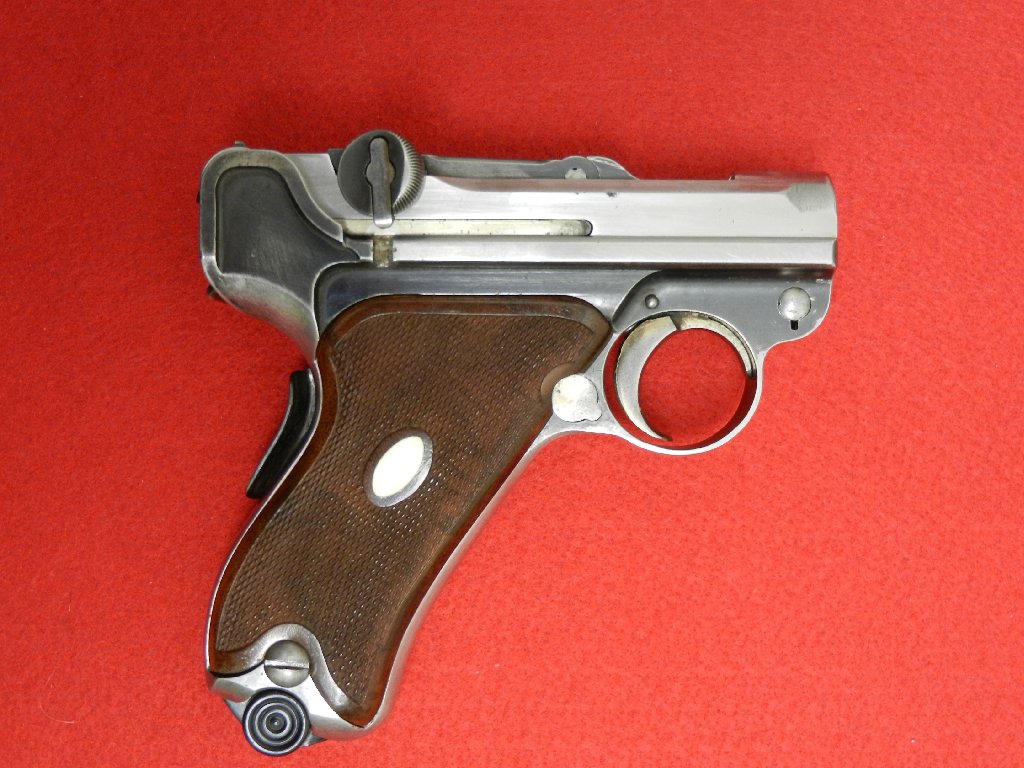

This is the one I have been fiddling with for 30 years and still haven't finished it.
Attached Thumbnails
Click image for larger version

Name:	Baby Right Side.jpg
Views:	82
Size:	149.8 KB
ID:	60762

Click image for larger version

Name:	Spring Modification.jpg
Views:	102
Size:	141.8 KB
ID:	60763

__________________
If it's made after 1918...it's a reproduction

Last edited by Ron Wood; 08-10-2016 at 03:03 PM.
Ron Wood is offline   Reply With Quote
The following 6 members says Thank You to Ron Wood for your post:
Unread 08-14-2016, 11:44 AM   #24
Vlim
Moderator
Lifetime
LugerForum Patron

Vlim's Avatar

Join Date: Oct 2002
Location: Europe
Posts: 5,053
Thanks: 1,036
Thanked 3,990 Times in 1,205 Posts
Default

Evan. The pistols are discussed in our book 'The Parabellum is Back - 1945 - 2000'. Mauser set up tooling in the 1970s and produced them again. Your baby is made out of a postwar Parabellum as a feasibility study for a commemorative version. The handwriting on the magazine is most likely that of Prof. Dr. Rolf Gminder, then manager of small arms production at Mauser.
Vlim is offline   Reply With Quote
The following 3 members says Thank You to Vlim for your post:
Unread 08-14-2016, 06:57 PM   #25
Evan Duke
User

Join Date: Jul 2002
Location: Florida
Posts: 52
Thanks: 2
Thanked 7 Times in 3 Posts
Default baby luger

Vlim, thanks for the info. I received the pistol on Saturday. I don't believe that it has ever been fired.
Evan Duke is offline   Reply With Quote
Unread 08-14-2016, 08:15 PM   #26
hayhugh
User

hayhugh's Avatar

Join Date: Oct 2013
Location: Florida/Penna
Posts: 898
Thanks: 877
Thanked 514 Times in 276 Posts
Default

Looking forward to seeing photos and more info...........
hayhugh is offline   Reply With Quote
Unread 08-15-2016, 09:01 AM   #27
John Sabato
Lifer
Lifetime Forum
Patron

John Sabato's Avatar

Join Date: Jun 2002
Location: The Capital of the Free World
Posts: 10,155
Thanks: 3,003
Thanked 2,308 Times in 1,098 Posts
Default

Quote:
Originally Posted by hayhugh View Post
looking forward to seeing photos and more info...........
+1 !
__________________
regards, -John S

"...We hold these truths to be self-evident that ALL men are created EQUAL and are endowed by their Creator with certain UNALIENABLE rights, and among these are life, LIBERTY, and the pursuit of happiness..."
John Sabato is offline   Reply With Quote
Unread 08-15-2016, 10:01 AM   #28
Vlim
Moderator
Lifetime
LugerForum Patron

Vlim's Avatar

Join Date: Oct 2002
Location: Europe
Posts: 5,053
Thanks: 1,036
Thanked 3,990 Times in 1,205 Posts
Default

Your pistol was made in July 1974 and received an 'Original Mauser' toggle description.

The first prototype was made in May, 1974 and got the 10.000101 serial, with a toggle with Mauser banner, but without 'Original' text.

The pistols were initially numbered as follows:
I = 10.000101
II = 11.000101 (your pistol)
III = 10.000001
IV = the reference pistol.

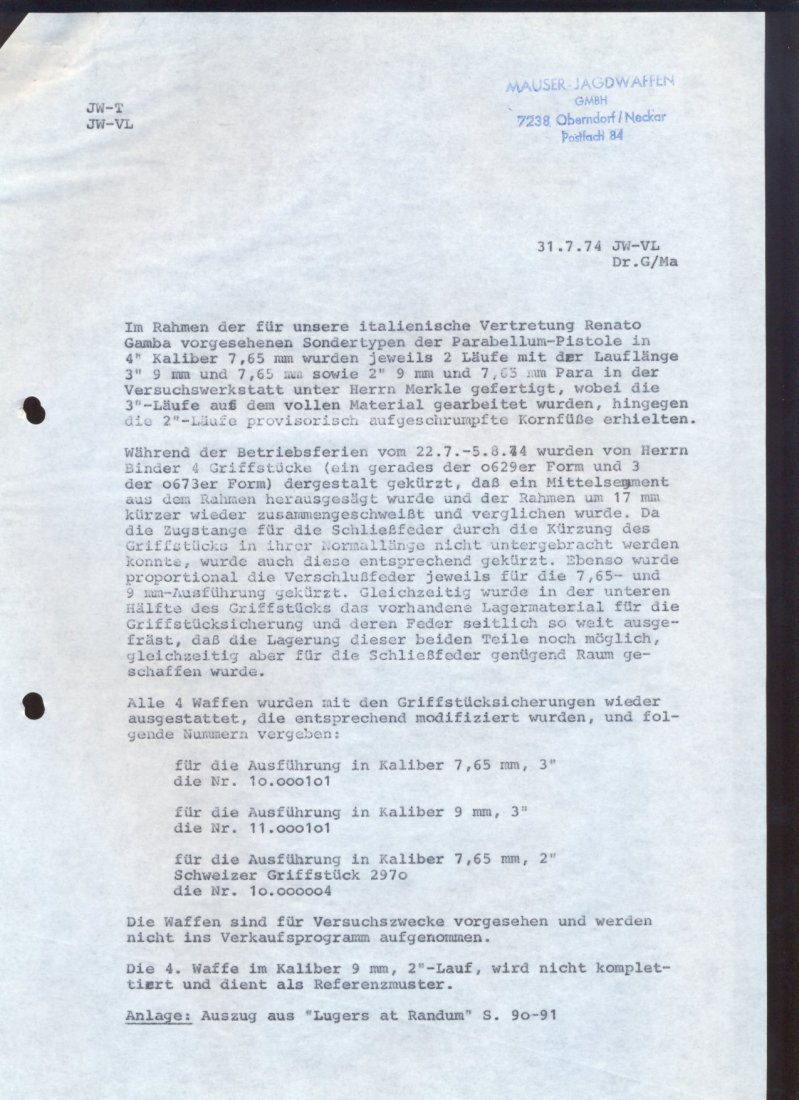

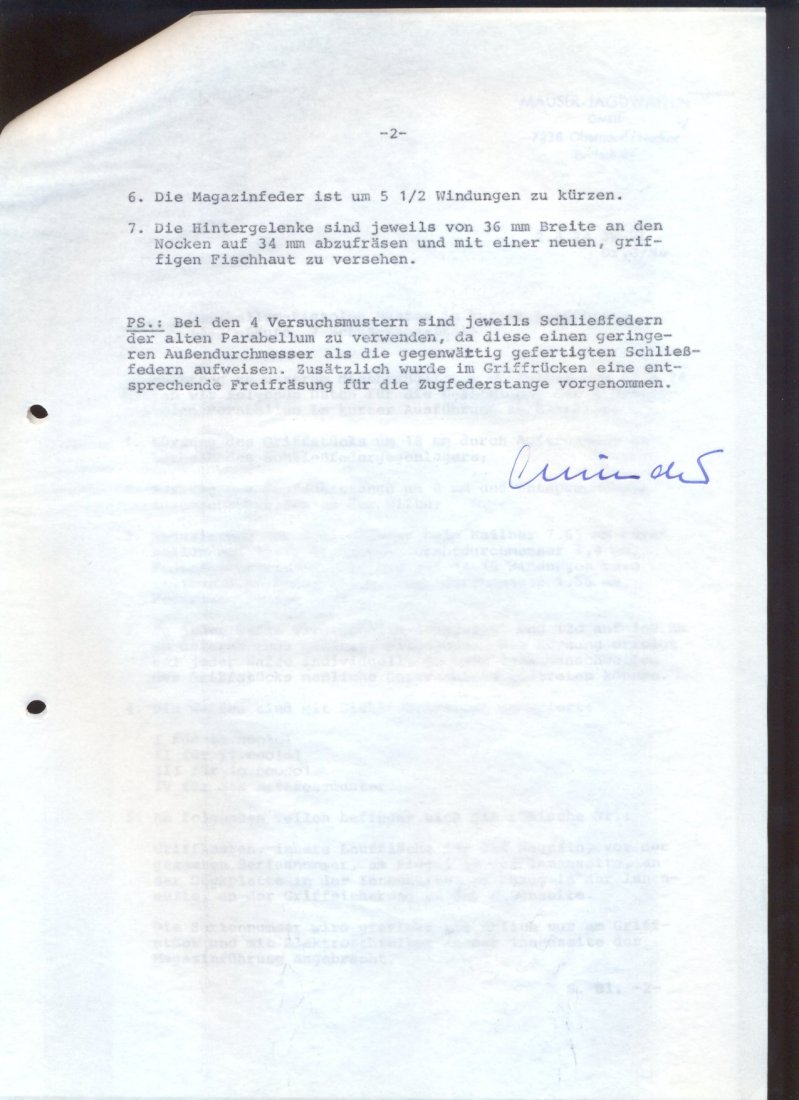

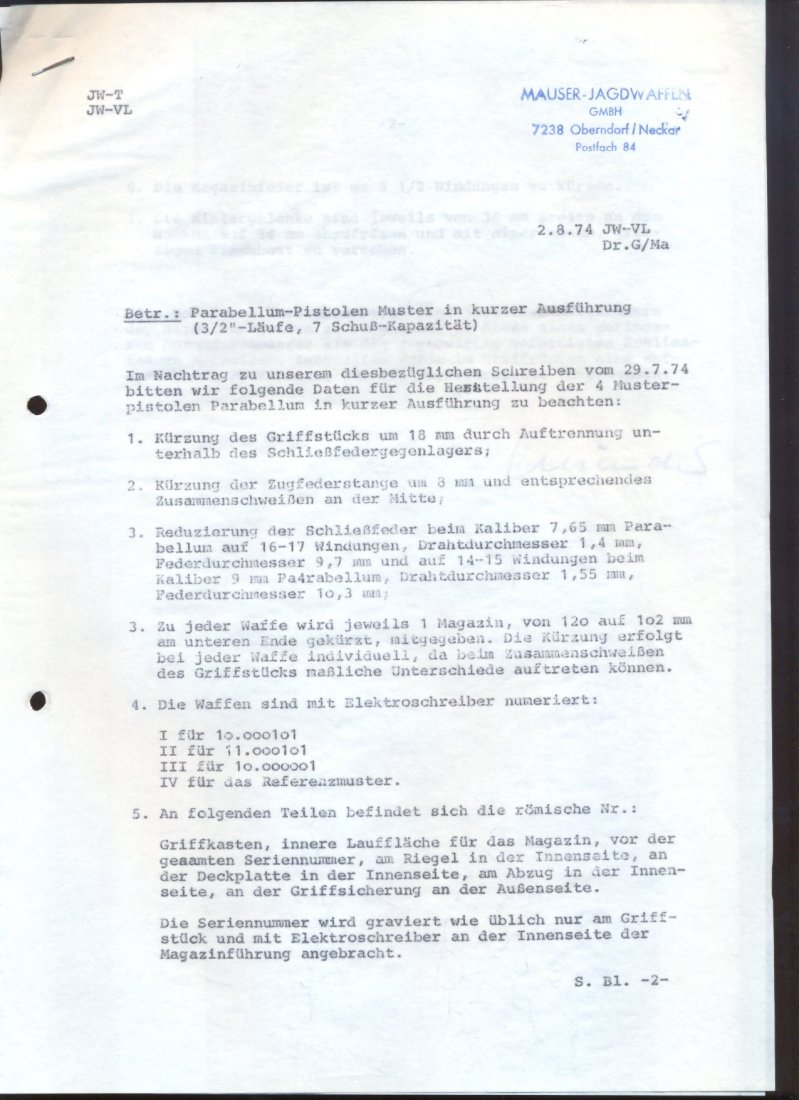

The original document describing the production of these pistols is dated on the 2nd of August, 1974.
A progress document dating from the 31st of July, 1974 indicates that the 4 pistols were made as prototypes for possible sales by Renato Gamba in Italy.
Attached Thumbnails
Click image for larger version

Name:	25a.jpg
Views:	108
Size:	128.9 KB
ID:	60808

Click image for larger version

Name:	25b.jpg
Views:	92
Size:	98.3 KB
ID:	60809

Click image for larger version

Name:	26a.jpg
Views:	91
Size:	156.9 KB
ID:	60810

Vlim is offline   Reply With Quote
The following 4 members says Thank You to Vlim for your post:
Unread 08-15-2016, 12:32 PM   #29
sheepherder
Lifer
Lifetime Forum
Patron

sheepherder's Avatar

Join Date: Feb 2009
Location: ...on the 'ol Erie Canal...
Posts: 8,196
Thanks: 1,416
Thanked 4,462 Times in 2,336 Posts
Default

Quote:
Originally Posted by Ron Wood View Post
This is the one I have been fiddling with for 30 years and still haven't finished it.
Maybe you should put your baby up for adoption...
__________________
I like my coffee the
way I like my women...
...Cold and bitter...
sheepherder is offline   Reply With Quote
The following member says Thank You to sheepherder for your post:
Unread 08-15-2016, 01:56 PM   #30
Ron Wood
Moderator
2010 LugerForum
Patron

Ron Wood's Avatar

Join Date: Jun 2002
Location: Santa Teresa New Mexico just outside of the West Texas town of El Paso
Posts: 7,036
Thanks: 1,106
Thanked 5,247 Times in 1,720 Posts
Default

Quote:
Originally Posted by sheepherder View Post
Maybe you should put your baby up for adoption...
Nah, I have grown quite fond of the poor little beast...even unfinished it pleases me. The work I have done is kinda neat.
__________________
If it's made after 1918...it's a reproduction
Ron Wood is offline   Reply With Quote
The following member says Thank You to Ron Wood for your post:
Unread 09-08-2016, 09:57 PM   #31
sheepherder
Lifer
Lifetime Forum
Patron

sheepherder's Avatar

Join Date: Feb 2009
Location: ...on the 'ol Erie Canal...
Posts: 8,196
Thanks: 1,416
Thanked 4,462 Times in 2,336 Posts
Default

What happened to the baby for sale on GB??? Did the sale fall through???

**************************************************

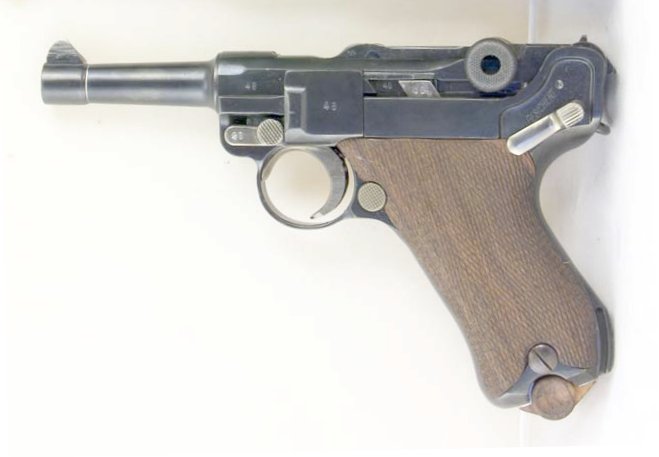

I hate to say it, but IMO Eugene has gotten the proportions and the correct donor Luger to make an appealing 'baby' (or pocket) Luger...

http://www.lugerman.com/Pages/SamplePages/Work_22.html

There is no way I could ever afford one, and I couldn't wait that long even if I could afford it...But it just looks "right"...
Attached Thumbnails
Click image for larger version

Name:	EugenesBaby.jpg
Views:	102
Size:	28.7 KB
ID:	61298

__________________
I like my coffee the
way I like my women...
...Cold and bitter...
sheepherder is offline   Reply With Quote
Unread 09-08-2016, 10:08 PM   #32
DonVoigt
User

DonVoigt's Avatar

Join Date: Apr 2015
Location: near Charlotte NC
Posts: 4,681
Thanks: 1,443
Thanked 4,355 Times in 2,041 Posts
Default

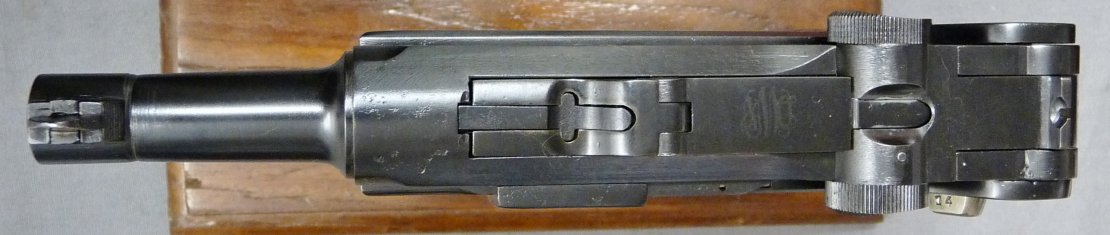

Rich,
You could make one yourself!

As I did with a lot of help from my friends!
This bbl is 2.75", I think maybe Eugene's is a half inch longer? I think I like the slightly longer bbl better myself.

Jim Solomon has the frame now, to make a set of simple "normal" checkered grips without border.
Attached Thumbnails
Click image for larger version

Name:	P1190304.jpg
Views:	104
Size:	243.6 KB
ID:	61302

Click image for larger version

Name:	P1190305.jpg
Views:	102
Size:	243.5 KB
ID:	61306

Click image for larger version

Name:	P1190306.jpg
Views:	85
Size:	51.3 KB
ID:	61307

Click image for larger version

Name:	P1190308.jpg
Views:	107
Size:	93.7 KB
ID:	61308

__________________
03man(Don Voigt); Luger student and collector.
Looking for DWM side plate: 69 ; Dreyse 1907 pistol K.S. Gendarmerie
DonVoigt is offline   Reply With Quote
The following 4 members says Thank You to DonVoigt for your post:
Unread 09-08-2016, 11:33 PM   #33
sheepherder
Lifer
Lifetime Forum
Patron

sheepherder's Avatar

Join Date: Feb 2009
Location: ...on the 'ol Erie Canal...
Posts: 8,196
Thanks: 1,416
Thanked 4,462 Times in 2,336 Posts
Default

Quote:
Originally Posted by DonVoigt View Post
This bbl is 2.75", I think maybe Eugene's is a half inch longer? I think I like the slightly longer bbl better myself.
I think you're right about the barrel. Blowing it up on my scanner, I get 3 1/8" from his web site pic. But in another thread, Ron says the early 'babies' were made from shortened fat barrels...IIRC, Navy fat barrels...(I might have not remembered that correctly)...
