04-24-2011, 12:11 AM
|
#1 |
|
User
Join Date: Jul 2010
Location: Irmo, SC
Posts: 625
Thanks: 35
Thanked 168 Times in 107 Posts
|
early breechblock
dunno really how scarce they are, but there's a nice 1900 breechblock on Gunbroker that can be had for $100 if anybody needs one , relisted after no offers the first time
|
|
|
|
04-27-2011, 10:56 AM
|
#2 |
|
Patron
LugerForum Patron
Join Date: Jun 2002
Location: POB 398 St.Charles,MO. 63302
Posts: 5,089
Thanks: 6
Thanked 737 Times in 484 Posts
|
I also have several of these starting @$100, if anyone if seeking a particular serial number. TH
|
|
|
|
|
05-01-2011, 09:28 AM
|
#3 |
|
Lifer
Lifetime Forum Patron
Join Date: Feb 2009
Location: ...on the 'ol Erie Canal...
Posts: 8,197
Thanks: 1,416
Thanked 4,462 Times in 2,336 Posts
|
Bob, you didn't post a pic or link...and because of that, several here may have blown off this thread...

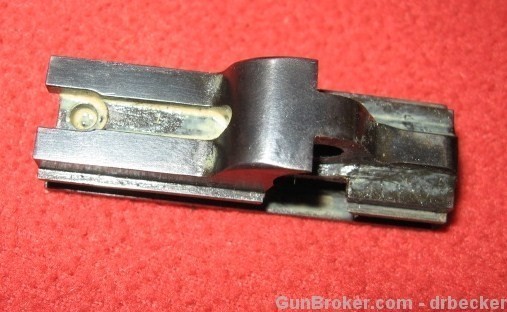

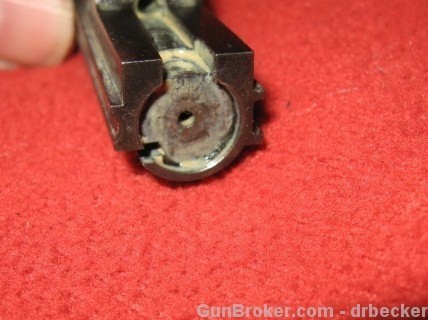

(I'm going to try to get appointed Ed Tinker's 'hatchet man' and really get serious about pic posting here)  In any event, can you tell me if an 'early' breechblock means one with a flat top, as opposed to the curved tops seen on P-08's??? What else differentiates an 'early' breechblock??? thankyouverymuch!!!  Edit: I lucked out...Found them on the first try...(Not everyone calls this item a 'breechblock')... drbecker (a name I recognize as a seller of Luger parts) has it...and they do have the flat tops...and use a different extractor (drbecker says)... http://www.gunbroker.com/Auction/Vie...Item=227821252 I guess the next question is...can this breechblock (with its extractor & spring) be used on a later Luger???
__________________
I like my coffee the way I like my women... ...Cold and bitter...
|
|
|
|
|
05-01-2011, 10:21 AM
|
#4 | |
|
Moderator
2010 LugerForum Patron
Join Date: Jun 2002
Location: Santa Teresa New Mexico just outside of the West Texas town of El Paso
Posts: 7,040
Thanks: 1,106
Thanked 5,257 Times in 1,724 Posts
|
Quote:
 It also requires an early firing pin and forward toggle link. The projection on the toggle link that cams the firing pin into position for firing (can't use the "c" word!) is at a different angle than on a new model toggle. Also the cutout in the barrel/receiver for the extractor is different but it will work. The overall length of the toggle train is the same for both the old model and new model so you can get creative sometimes. I have grafted a new model forward toggle link and breechblock onto an old model dished rear toggle, all on an old model long receiver. Had to open up the extractor cutout a tad.
__________________
If it's made after 1918...it's a reproduction |
|
|
|
|
| The following member says Thank You to Ron Wood for your post: |
|
05-01-2011, 10:44 AM
|
#5 |
|
Patron
LugerForum Patron
Join Date: Jun 2002
Location: POB 398 St.Charles,MO. 63302
Posts: 5,089
Thanks: 6
Thanked 737 Times in 484 Posts
|
Ron, I agree most things can be done given enough time & money. but with the more expensive extractor, fining pin & center link modification, I don't know why anyone would want to do it. Going to the stonger PO8 BB assy is understandable. I even had a customer modify a M1906 frame with the addition of a loggle lock, in order to used the M1900 rear link. TH
|
|
|
|
 |
|
|
