Info on this Luger

pippy · 11-07-2009, 08:48 PM

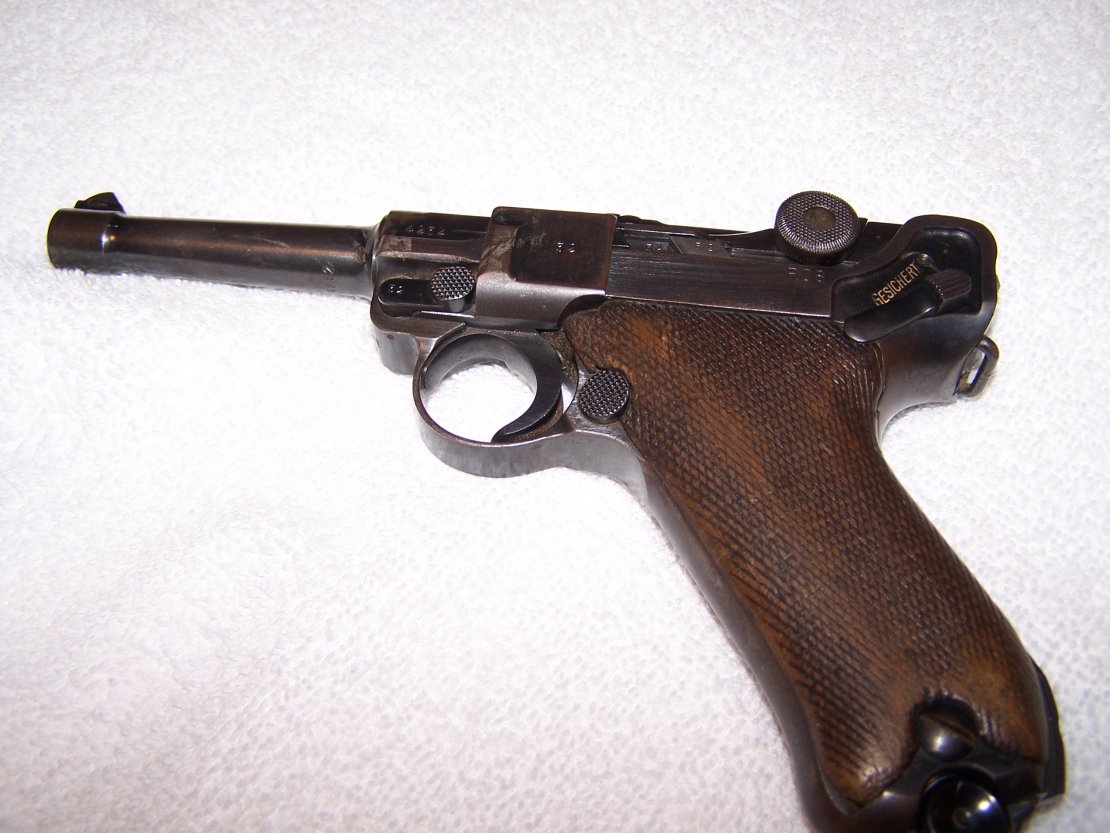

I recently inherited this Luger from my Grandfather. I believe he got it from one of his brothers who came back from WWII. I want to display it, but I would like to know some history behind it first.

Thanks in advance for any help,

Marshall

Tomathvl · 11-07-2009, 09:30 PM

Marshall,

Welcome to the forum.

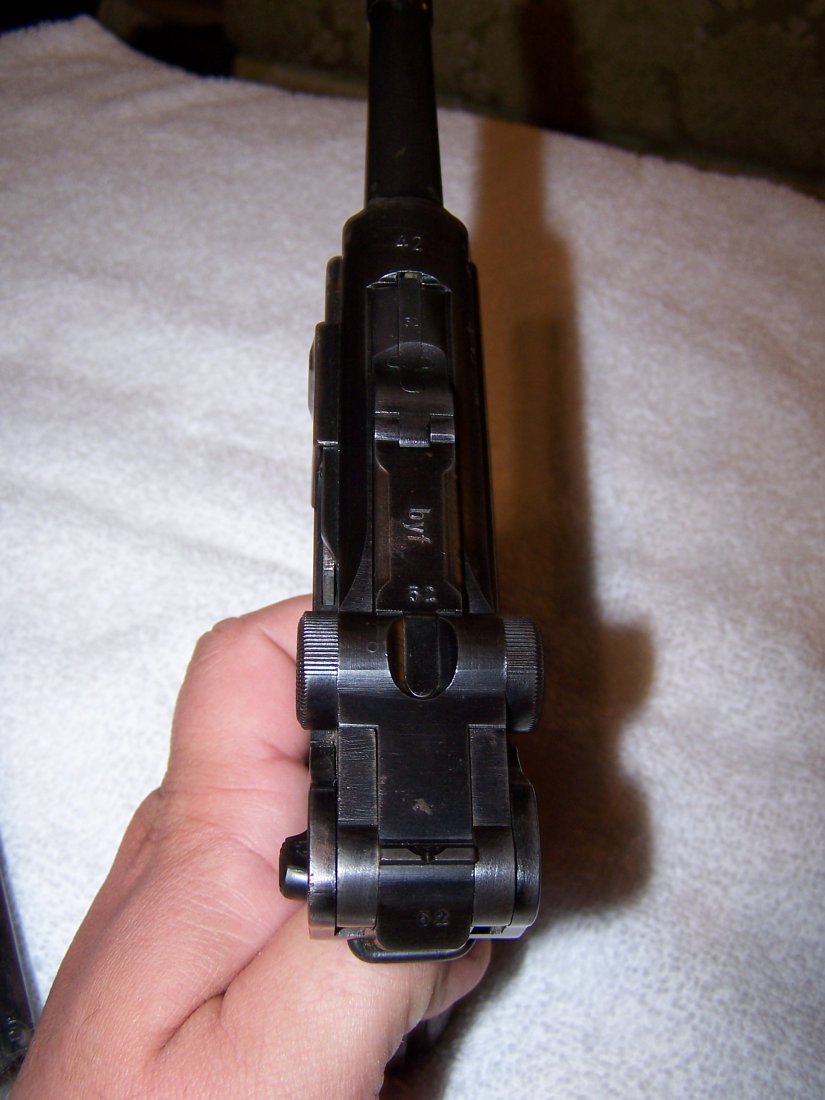

Based on the dark photos it's a 42 byf which translates to made in 1942 by byf = Mauser.

Tom

pippy · 11-07-2009, 09:34 PM

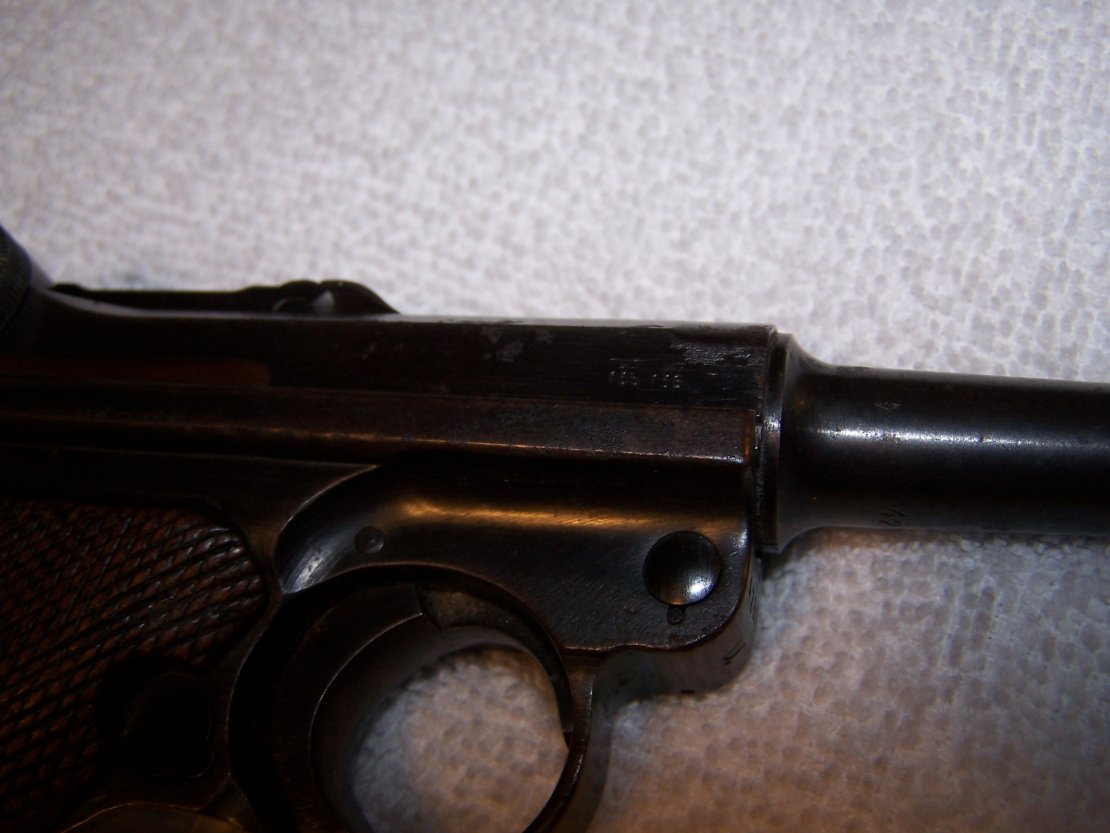

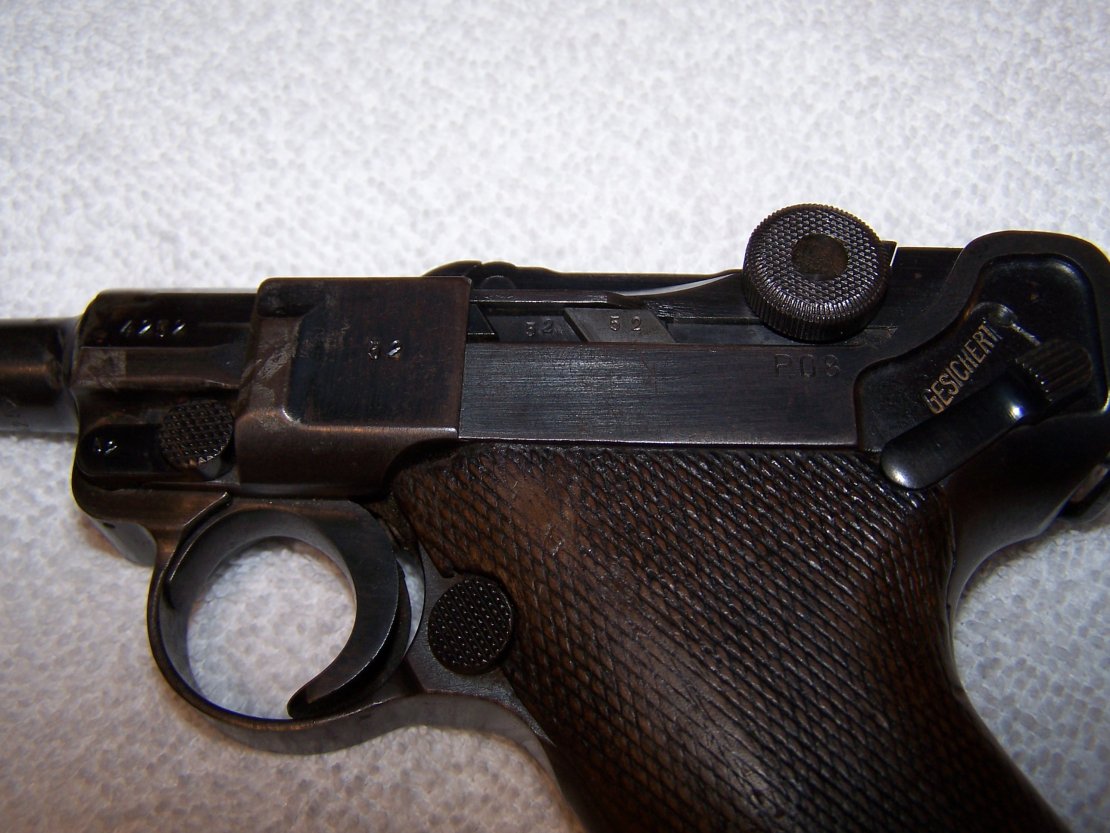

all of the markings are either 52 or 42 or 4252. There is one near the barrel that says 135, 135, and appears to have an eagle stamp

pippy · 11-07-2009, 09:52 PM

and the letter appears to be an h or an upside down y

FNorm · 11-07-2009, 10:20 PM

According to Still's the serial range for 42 byf is 500- 149m. So an h suffix would be correct. Estimated German military procurement 113,000

FN

Frank · 11-08-2009, 08:20 AM

Hello, Welcome to the Luger Forum. Serial number 4252h, 42 byf, was completed in May 1942, give or take a month. The time frame can only be estimated, based on a regular production schedule & the initial (or starting serial number). Hope this helps a little.

pippy · 11-08-2009, 09:16 AM

Does it appear to be in the orginal condition? Is that what differentiates a "shooter" from a "collector"? Should I try and remove the grips to verify #s? I am pretty sure it has been in our family since coming back to the USA.

Also, how could I determine and purchase the appropriate holster and tool for this pistol. I would like to create a display and pass it along to my son.

Thanks
Marshall

bobcam1 · 11-08-2009, 06:02 PM

Is the number on the bottom of the magazine a match to the numbers on the Luger, itself?

pippy · 11-09-2009, 12:43 PM

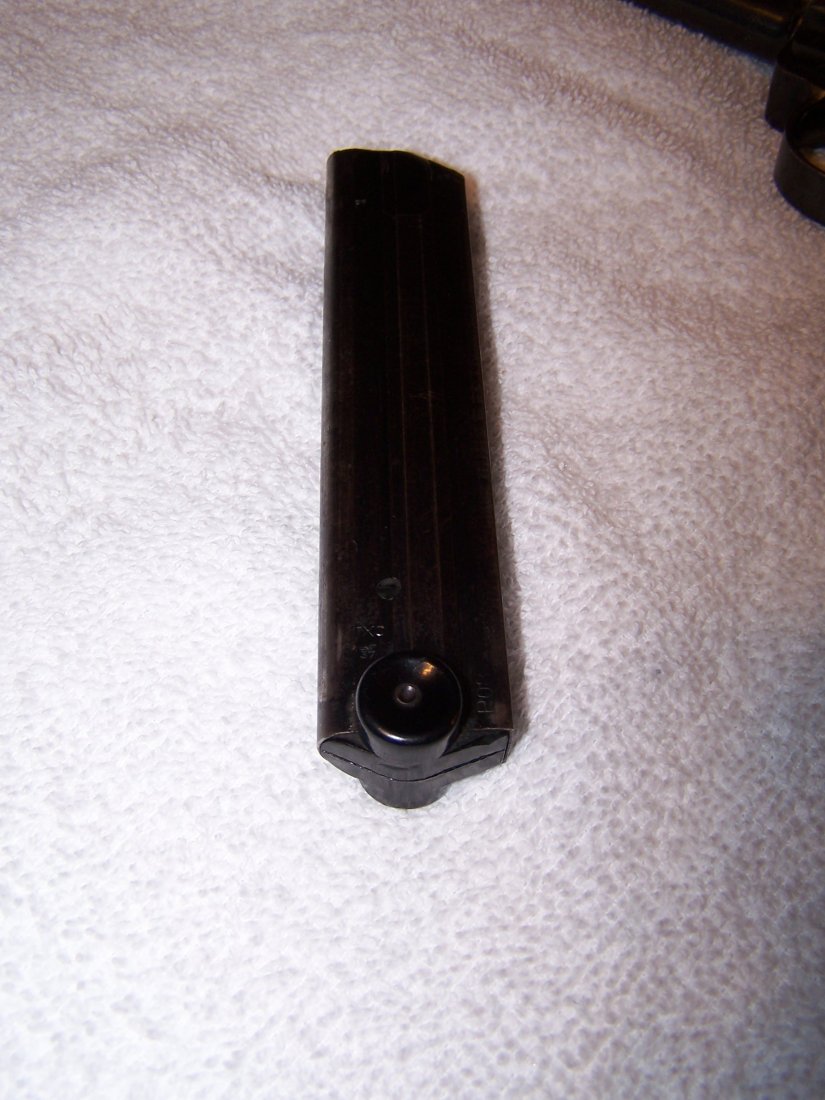

the very bottom of the magazine is black plastic

there is a #37 below the fxo inscription on the side of the magazine

Lugerdoc · 11-11-2009, 09:47 AM

Your mag is the correct issue mag for a 42BYF. The proper loading tool should also have the E/135 WaA, but due to limited production, these are selling in the $150 range. A 1942 dated holster would be nice, but since the holsters were issued separately, any date, even a WW1, may have been what it was originally carried in. TH

Edward Tinker · 11-11-2009, 10:38 AM

As Tom says, a luger can be found in many dates. Personally, I try to find one that year, the year before and as a last resort, one from the year after (well, last, last resort is any holster)

Ed

pippy · 11-11-2009, 06:59 PM

the ones i see on ebay are either brown or black, would either color be appropriate?

any good pictures of displays that members have put together?

Thanks
