interarms mauser

mikeurbas · 02-26-2019, 12:41 PM

i just got my first luger, an interarms mauser .30 luger with 6" barrel. it suffers from loose grips. is there any way to fix this?

rhuff · 02-26-2019, 01:36 PM

Mike,

You will want to do a search, as this topic has been discussed in the past, and some discussion was fairly recently. Congrats on your FIRST Luger.....they are quite addicting!!

DavidJayUden · 02-26-2019, 01:54 PM

Often times a small fiber washer on the grip screws helps tighten them up. Sometimes I'll add a drop of glue or Accraglass to the area where the looseness is the most apparent, then after it dries use a dremel or file to take the glue down until the grip just fits. But try the washer first.
dju

Vlim · 02-26-2019, 02:53 PM

Depends on the type.
Early grips had small brass pins at the edge to keep them in place. Later versions relied on a metal pin through the frame.

It will be obvious when the grips are removed.

John Sabato · 02-28-2019, 10:50 AM

A soft rubber or neoprene O-ring of appropriate size is used by some to stabilize loose grips.

DonVoigt · 02-28-2019, 12:22 PM

Quote:

Originally Posted by John Sabato

A soft rubber or neoprene O-ring of appropriate size is used by some to stabilize loose grips.

Works with the original design grips;
but the 1970s Mauser grips are different and the problem is associated with the small pins that are "supposed" to hold the upper part of the grip within the frame.

mikeurbas · 03-02-2019, 12:49 PM

i must have an early luger, as the grips have two pins in each of them. i was able to tighten them by shimming the bottoms, with thin pieces of plastic.

mikeurbas · 03-02-2019, 12:58 PM

my interarms mauser .30 luger with 6" barrel.

02-26-2019, 12:41 PM	#1
mikeurbas User Join Date: Feb 2019 Posts: 5 Thanks: 0 Thanked 3 Times in 1 Post	interarms mauser i just got my first luger, an interarms mauser .30 luger with 6" barrel. it suffers from loose grips. is there any way to fix this?

02-26-2019, 01:36 PM	#2
rhuff Patron LugerForum Patron Join Date: Mar 2011 Location: Az. Posts: 2,305 Thanks: 2,735 Thanked 991 Times in 727 Posts	Mike, You will want to do a search, as this topic has been discussed in the past, and some discussion was fairly recently. Congrats on your FIRST Luger.....they are quite addicting!! __________________ Need DWM breechblock #21

02-28-2019, 10:50 AM	#5
John Sabato Lifer Lifetime Forum Patron Join Date: Jun 2002 Location: The Capital of the Free World Posts: 10,155 Thanks: 3,003 Thanked 2,308 Times in 1,098 Posts	A soft rubber or neoprene O-ring of appropriate size is used by some to stabilize loose grips. __________________ regards, -John S "...We hold these truths to be self-evident that ALL men are created EQUAL *and are endowed by their Creator* with certain UNALIENABLE* rights, and among these are life, LIBERTY, and the pursuit of happiness..."*

03-02-2019, 12:49 PM	#7
mikeurbas User Join Date: Feb 2019 Posts: 5 Thanks: 0 Thanked 3 Times in 1 Post	Loose grips i must have an early luger, as the grips have two pins in each of them. i was able to tighten them by shimming the bottoms, with thin pieces of plastic.

03-02-2019, 12:58 PM	#8

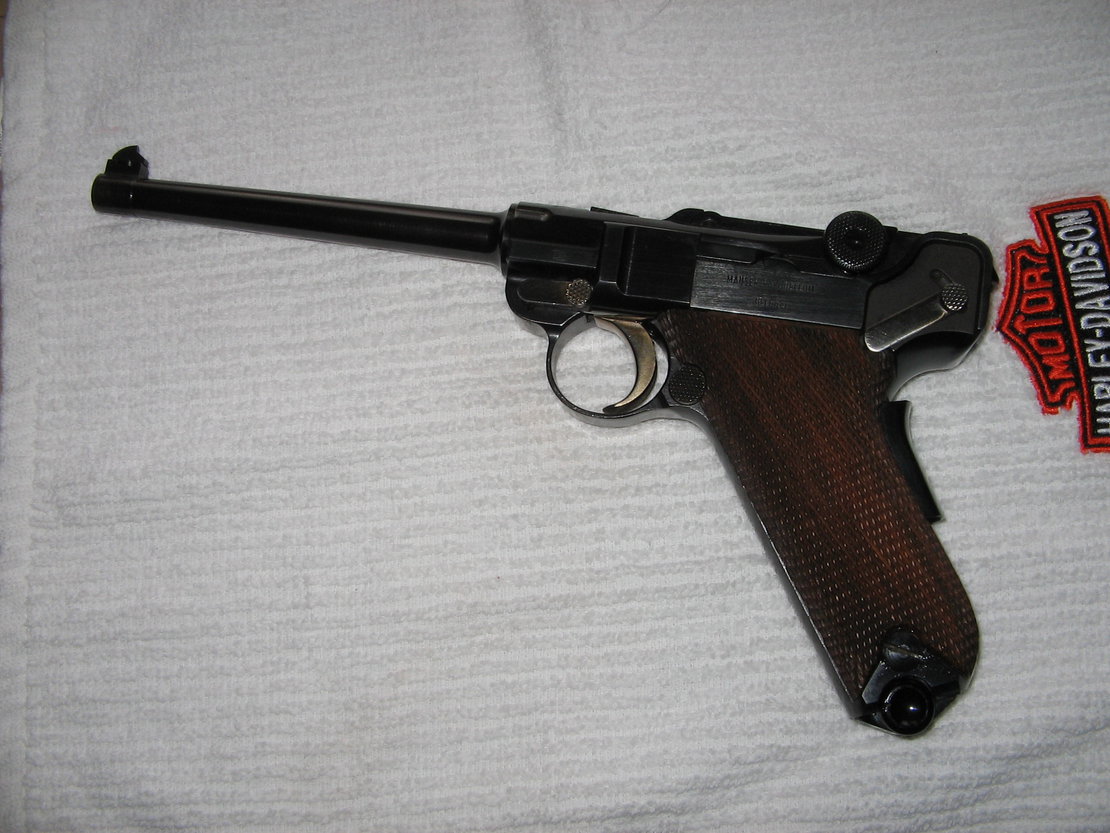

mikeurbas User Join Date: Feb 2019 Posts: 5 Thanks: 0 Thanked 3 Times in 1 Post	interarms mauser my interarms mauser .30 luger with 6" barrel. Attached Thumbnails

02-26-2019, 01:54 PM	#3
DavidJayUden Patron LugerForum Patron Join Date: Nov 2008 Posts: 4,047 Thanks: 578 Thanked 1,414 Times in 887 Posts	Often times a small fiber washer on the grip screws helps tighten them up. Sometimes I'll add a drop of glue or Accraglass to the area where the looseness is the most apparent, then after it dries use a dremel or file to take the glue down until the grip just fits. But try the washer first. dju

02-26-2019, 02:53 PM	#4
Vlim Moderator Lifetime LugerForum Patron Join Date: Oct 2002 Location: Europe Posts: 5,053 Thanks: 1,036 Thanked 3,990 Times in 1,205 Posts	Depends on the type. Early grips had small brass pins at the edge to keep them in place. Later versions relied on a metal pin through the frame. It will be obvious when the grips are removed.
