byf ejectors

jeffs · 01-10-2009, 03:53 PM

Dear experts

Does anyone know why some ejectors on byf 41 (and perhaps other?) lugers appear to of an almost cordovan color?

Thanks,
Jeff

tamueller · 01-10-2009, 04:57 PM

Hello Jeff,
the color is a result of the metallurgic act of steel-tempering e.g. Straw-Color. If tempering is done at higher temperature the straw-color changes to purple. Steel will be more elastic and less prone to break.
If not done so during manufacture it may have been applied during a refurbishing act.

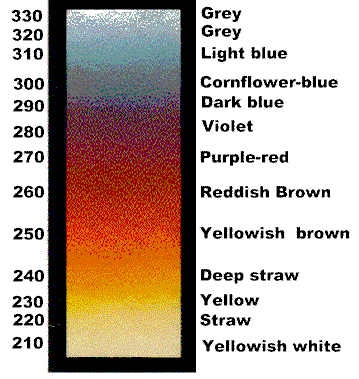

See attached tempering table.

Hope this answered your question,
Thomas

jeffs · 01-10-2009, 08:09 PM

HI Thomas

Are these degrees Celsius?

Danke sehr!
Jeff

tamueller · 01-11-2009, 05:53 AM

Hi Jeff,
these are degrees Celsius, however I did some research and I believe, that the colour you described might rather be the result of some blueing or coating technigue. The typical straw-colour is caused by the tempering process.

Thomas

jeffs · 01-11-2009, 09:22 AM

Thank you!

Jeff

Lugerdoc · 01-14-2009, 10:23 AM

Some early hot dip Mauser PO8s (1937-39) with have ejectors &/or extractors with a purple color caused by improper temperature bluing. TH
