Navy cleaning rod, dimensions?
I will make Luger navy cleaning rod, so can you give me dimensions?
Metal parts: - lenght; - diameter; - lenght od threaded segment Wooden handle: - lenght; - diameter. Thanks! Gretings from Croatia! Nikola. |
Hi Nikola,
Your English far surpasses my abilities to speak your language. However, do you mean "rod", as " Navy cleaning rod"? Ron |
Nikola,
Send me your email address via the Private Message feature and I will be happy to email you a larger photo scan from Eugene Bender big book on Luger holsters & accessories : http://forum.lugerforum.com/lfupload/navy_rod_2.jpg |
Quote:
|
Hi Nikola,
You should receive the photo scan file this morning in your email. When you finish your project, we would hope you share some photos of your work on the Forum. Good luck with your project ! |
I have made navy cleaning rod. Threaded segment is not like original, it is hard to made, but other parts is like original. It will use. Now, I must make loading tool. Pete, thanks for scheme!
http://img253.imageshack.us/img253/4986/dscf0790so8.jpg |
Nice work !
|
Nikola, Yes a nice photo..Are you sure about your measurements? The wood handle looks way too fat. Cleaning rod handles were quite slim actually.
Jerry Burney |
Quote:
|
Nikola, Wood handle diameter in middle is 17 mm, it's same like in scheme.
While this may be true for the middle, what are the ends supposed to measure? I still think it's too fat! Jerry Burney |
Hi Jerry,
In the Eugene Bender big book on page 227 you will see the blueprint schematic drawings for the LP-08 cleaing rod. On page 244 you will see a similar schematic drawing for the Navy cleaning rod. The ends of the wooden "barrel" on the Navy is 13,5 mm in diameter while the LP-08 tool is 13,0 mm at its ends. There is some difference in the spacing of the "grooves" in both "barrels" as well. The Navy is shown with grooves that are 1,2 mm in width, while the LP-08 is shown with grooves that are 0,7 mm in width. Both "barrels" have 17,0 mm at their thickest part and overall length of the "barrel" on both is the same at 40,0 mm. |
Nikola,

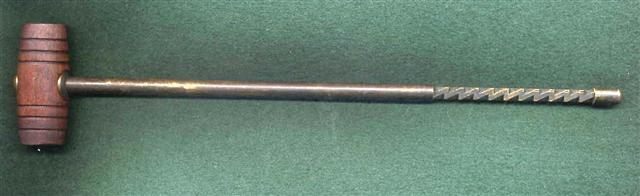

Here is a "repro" Navy rod CMR out of the UK has been selling : http://forum.lugerforum.com/lfupload...epro_copy1.jpg http://www.cmrfirearms.com/shop/ Sometimes you see these (with some green oxidation...) selling at gun shows for over $ 350...buyers thinking they are the "real" item...I think CMR sells them for $ 200. |
Pete, Yes..I was interested to know Nickloa's measurements for the ends...The wood barrel tapers and on original rods, the taper is such that they look quite slim. In fact, if they are overly fat they are unlikely to fit into an original holster. That has always been the mistake of most repro's..too fat a barrel.
Jerry Burney |
The wooden barrel on both this new repop and ALL the fakes I have seen is simply not right and it is a dead give away if you have seen an original.
Can't quite figger out why the boosters can't master something which seems so elemental. Tom A |
..........
|
Tom, It's all attention to detail. They are too lazy to get it right. CMR holsters are a good example..With just a little attention to the fine details they could actually make a presentable holster. As it is, they will not fine tune it, so it remains crap.
Elemental true.... but beyond the grasp of those who do not care...Jerry Burney |
Patrice,
Having seen several originals ones the "Navy Cabal" guys display at the SE NAPCA events in the summer in TN state, I think the difference between an original and the very-good repro units is pronounced in the area and machining of the "zig-zag" portion of the rod. |
Jerry,
My airborne pal, they are NOT interested in quality, merely profit. They are having these abominations cranked out by sweat-shop labor in some third world toilet of a country and are only concerned with their margins. Pakistani cow peelings as you so aptly phrased a holster from one of these mills. YAP Tom A D-2/503 P.I.R. |
My airborne pal, they are NOT interested in quality, merely profit.
Tom, Then they must be shortsighted in the extreme...it would cost nothing to make a few changes and do it right. A Better product with no more cost than before would result in MORE profit. Why don't they do it? Jerry Burney |
Here are some rods that Chuck Whittaker has on his web site :
http://forum.lugerforum.com/lfupload...kwhittaker.jpg |
